CARVIN 1562 Instructions

CARVIN ENGINEERING DATA
Congratulations on your selection of the 1562 loudspeaker. As one of the finest
speaker systems made, the TR1562 will reproduce your music with the purest, most
natural sound available. The high powered titanium horn and two 15" woofer response
even under the most stressful, intense power levels. The computer-aided tuned-ported
enclosures offer the best frequency response possible from the heavy-duty cast frame
15" woofer. Hookups are easy too, with either 1/4" jacks or professional Speakon™
connectors as a Bi-amped or full-range system. We recommend our 18' TR1801 sub-
woofer system if you require more bass.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the best
possible protection during shipment. CARVIN and the shipping company are not liable
for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with your
name and comments to us.
SUGGESTIONS FOR OPTIMAL PERFORMANCE
Raise the enclosure to the ear level of your audience for greater coverage. To help
control feedback, use a graphic equalizer. Keep the speakers in front of the
microphone. Never direct the microphone towards the speaker. For greater
coverage, add a second speaker system 20° to 30° off axis.
TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS
Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω 4Ω 4Ω 2Ω
4Ω 8Ω
4Ω
+
8Ω
4Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-01562 0998
All manuals and user guides at all-guides.com
1562
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+ + +
+
8Ω 4Ω
8Ω 4Ω
8Ω 4Ω
+
+
8Ω 4Ω
+
8Ω
4Ω
+

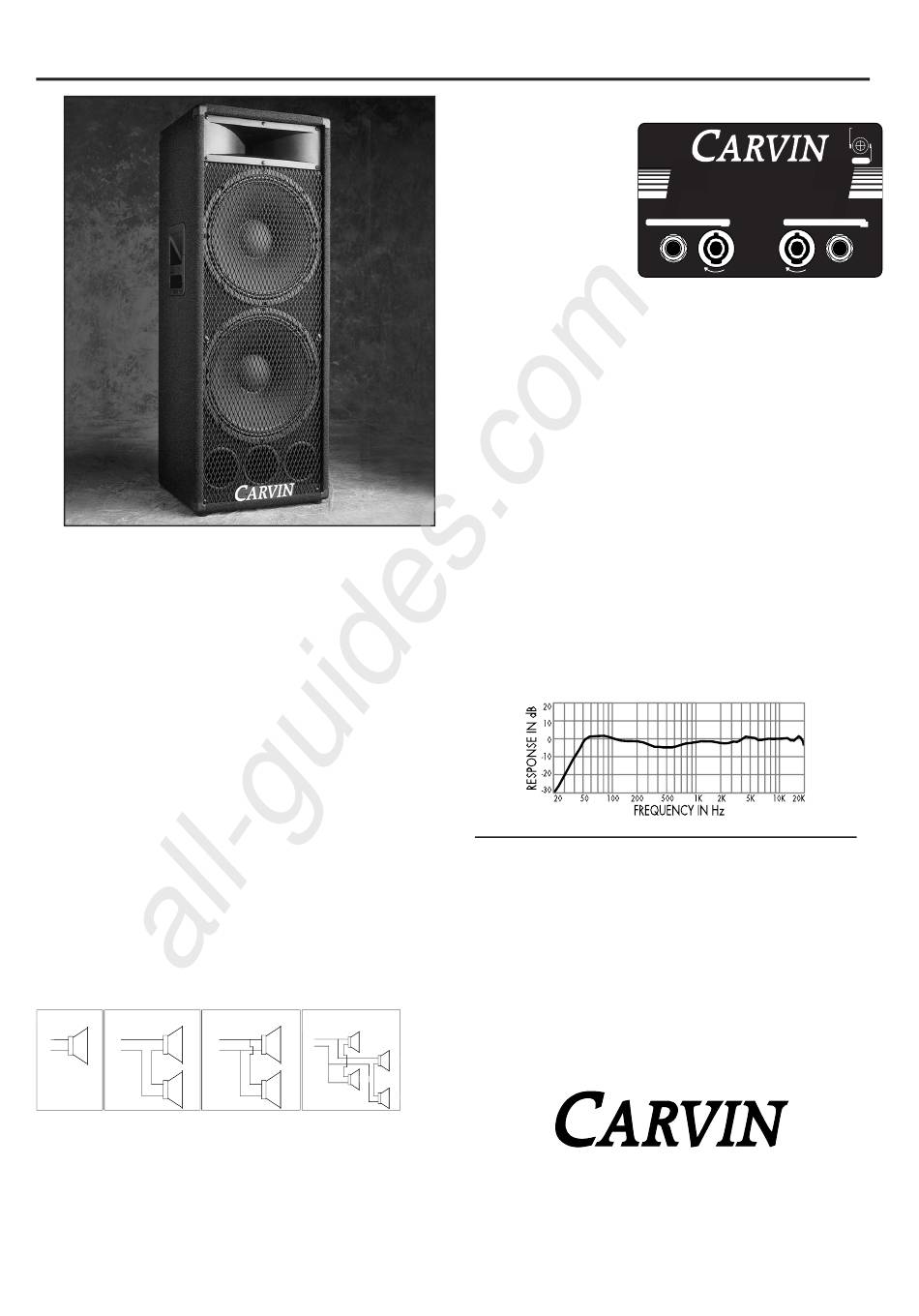

1562 SPEAKER SYSTEM
REAR CONNECT PLATE
Two standard 1/4" phone
jacks and two Professional
Speakon™ connectors are
featured. See other side for
Hookup Diagrams.
SPEAKER CABLES
Our standard cable for speaker hookups is the PH50. This cable features 1/4"
plugs and 16 gauge copper wire. The PH50 is adequate for lengths up to 50' under
normal use. You can DAISY-CHAIN up to one additional speaker per cable by using
the unused 1/4" OUTPUT" jack (right side) on your speaker jack plate. Be sure to
note the total impedance to the amp so it is not lower than it's recommended
impedance. See Typical Loudspeaker Impedance Configurations.
For continuous high power applications, we suggest using our professional
SPK25, SPK50 & SPK100 Speakon™ cables with lock-on connectors and heavy 4
conductor 12 gauge copper wire. These cables are to be connected in the same
way as the PH50 with compatible amps.
PRECAUTIONS
1) DO NOT EXCEED THE POWER RATING marked on the rear connect plate.
Excessive power will destroy drivers. 2) DISTORTION from power amps will destroy
drivers much faster than clean power. 3) WATER, MOISTURE, and DUST are
harmful to drivers causing failure which is not covered under warranty.
WARRANTY
CARVIN loudspeakers are covered by a ONE year limited warranty unless
otherwise stated. Warranty coverage is limited to original manufactures defects
only. WARRANTY DOES NOT COVER: 1) Opened or burned voice coils. 2) Torn
cones caused by improper packing or abuse. 3) Damage from rain, moisture, ETC.
When returning defective driver(s), remove them from the enclosure to reduce
shipping costs . DO NOT stuff paper into the driver(s). Return pre-paid by UPS.
Include your address and description of the problem. Your driver(s) will be
returned COD for the cost of shipping and reconditioning if not covered under
warranty.
MODEL 1562 SPEAKER SYSTEM SPECS:
Frequency Response: 40 Hz to 19 kHz ±3 dB
Useable Low Frequency: 50 Hz (-10 dB)
Recommended Amp: 75 to 1000 watts
Nominal Impedance: 4Ω
Horn Driver Protection: Yes—Maintenance Free
Woofer Enclosure Type: Vented Box
Enclosure Covering: Black Duratuff II™
8Ω 4Ω
Optional Vinyl Cover: CVS1562
4Ω
8Ω
INSTRUCTIONS
1 5 6 2
PROFESSIONAL SOUND REINFORCEMENT
FULL RANGE–INPUT
PARALLEL IN FULL
BIAMP SW–HI FREQ. INPUT
4Ω
1562 FREQUENCY RESPONSE
Power Handling: 600w Continuous Power
Sensitivity: 102 dB SPL, 1 Watt @ 1 meter
Coverage Angles: 90° Horizontal, 45° Vertical
Crossover Type: C1562 Constant Voltage
Inputs/Outputs: Two 1/4", two Speakon™
Bi-Amp Support: Yes—Panel Switch
Dim/Wt: 17"W x 15.25"D x 44.25"H, 75lbs.
Optional Cables: PH50, SPK25, SPK50, SPK100
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
FULL
RANGE
BIAMP
JACKS WIRED FULL RANGE –PARALLEL
BIAMP SW–LOW FREQ. INPUT
4Ω
RANGE MODE
Speakon™
1+SIGNAL
1–GROUND
2+ & 2–
MADE IN THE
NOT USED
USA
