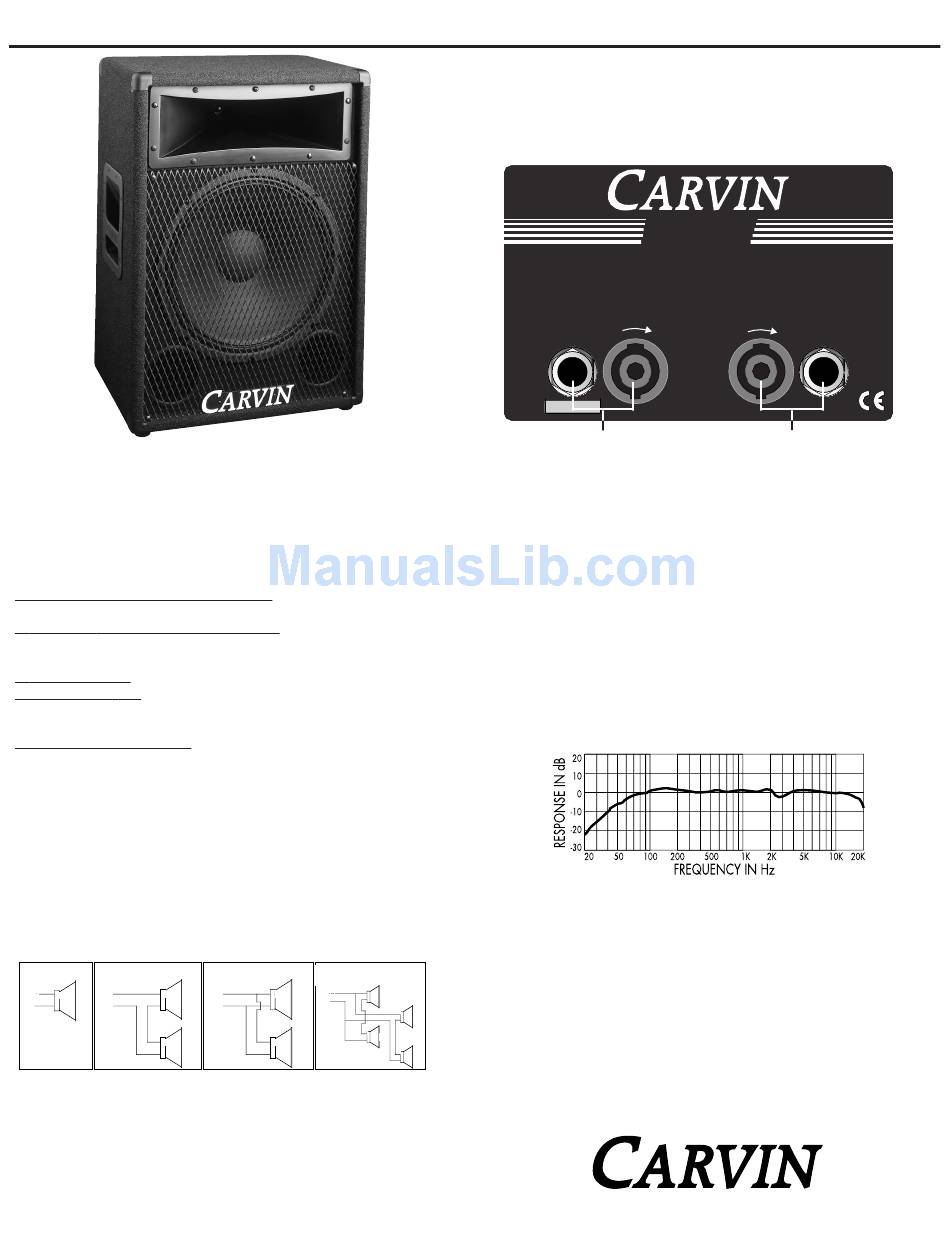

CARVIN 832 Instructions

CARVIN ENGINEERING DATA
Congratulations on your selection of the 832 loudspeaker. This 400
watt system features a large 15" woofer that delivers great bottom
end while the large radial horn delivers crystal clear treble. It's great
for indoor or outdoor performances, churches, schools or clubs. Use
it with the optional SS20 stand. The 832 includes a built-in recessed
bracket for easy mounting to speaker stands.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. CARVIN and the
shipping company are not liable for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before
inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Return the warranty card with your name and comments to us.
WARRANTY
Parts and labor are covered for 1 year on manufacturer's defects. Warranty does
not cover burned out drivers caused by excessive power or distortion, or physical
damage caused by general use, moisture or dust.
power amps can destroy drivers much faster than clean power. Contact Carvin's
Customer Service at 800-854-2235 or returnsrepairs@carvin.com. Customer is
responsible for shipping charges.
TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS
Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL
SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-00832 0902
832
CAUTION: Distortion from
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+
+ +
+
8Ω
8Ω
4Ω 8Ω
+
8Ω
+
8Ω
832 SPEAKER SYSTEM
See other side for SPS™ Powered Speaker operation
REAR CONNECT PLATE
Two professional Twist-Lok™ connectors and two standard 1/4" phone jacks are
featured. Use either the 1/4" or Twist-Lok™ connectors for connecting to the
power amp and daisy chaining to an additional speakers.
INPUT
Serial No.
Twist-Lok™ & 1/4" inputs
from power amp output.
SPEAKER CABLES
The PH50 is our standard cable when purchasing a complete sound system.
These cables feature 1/4" plugs and heavy 16 gauge copper wire. The PH50 is
adequate for lengths up to 50' under normal use. You can DAISY-CHAIN up to one
additional speaker per cable by using the unused 1/4" OUTPUT" jack (right side)
on your speaker jack plate. Be sure to note the total impedance to the amp so it is
not lower than it's recommended impedance. See Typical Loudspeaker Impedance
Configurations.
SUGGESTIONS FOR OPTIMAL PERFORMANCE
Raise the enclosure to the ear level of your audience for greater coverage. Use
Carvin's optional SS20 stand. To help control feedback, use a graphic equalizer.
Keep the speakers in front of the microphone. Never direct the microphone
towards the speaker. For greater coverage, add a second speaker system 20° to
30° off axis.
MODEL 832 SPEAKER SYSTEM SPECS:
Frequency Response:
Useable Low Frequency:
Recommended Amp:
Nominal Impedance:
+
8Ω
Horn Driver Protection:
+
Woofer Enclosure Type:
8Ω
832
PRO SOUND REINFORCEMENT
IMPEDANCE: 8 Ohms
POWER RATING: 400 Watts
JACKS WIRED
PARALLEL
TWIST-LOK
1+ SIGNAL
1– GROUND
2+ NOT USED
2– NOT USED
MADE IN THE
US A
Twist-Lok™ & 1/4"
through connectors for
additional speakers
832 FREQUENCY RESPONSE
65 Hz to 17 kHz ±3 dB
42 Hz (-10 dB)
Power Handling: 400w Continuous Power
50 to 600 watts
Sensitivity: 100 dB SPL, 1 Watt @ 1 meter
Coverage Angles: 90° Horizontal, 45° Vertical
8Ω
Yes
Inputs/Outputs: Two 1/4" & Two Twist-Lok™ Connectors
Vented Box
Enclosure Covering: Black Duratuff II™
Dim/Wt: 20"W x 14"D x 26"H, 47 lbs.
Warranty: One Year
Options: Cover: CVS832, Stands: SS20
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
INSTRUCTIONS
EXT. SYSTEM
