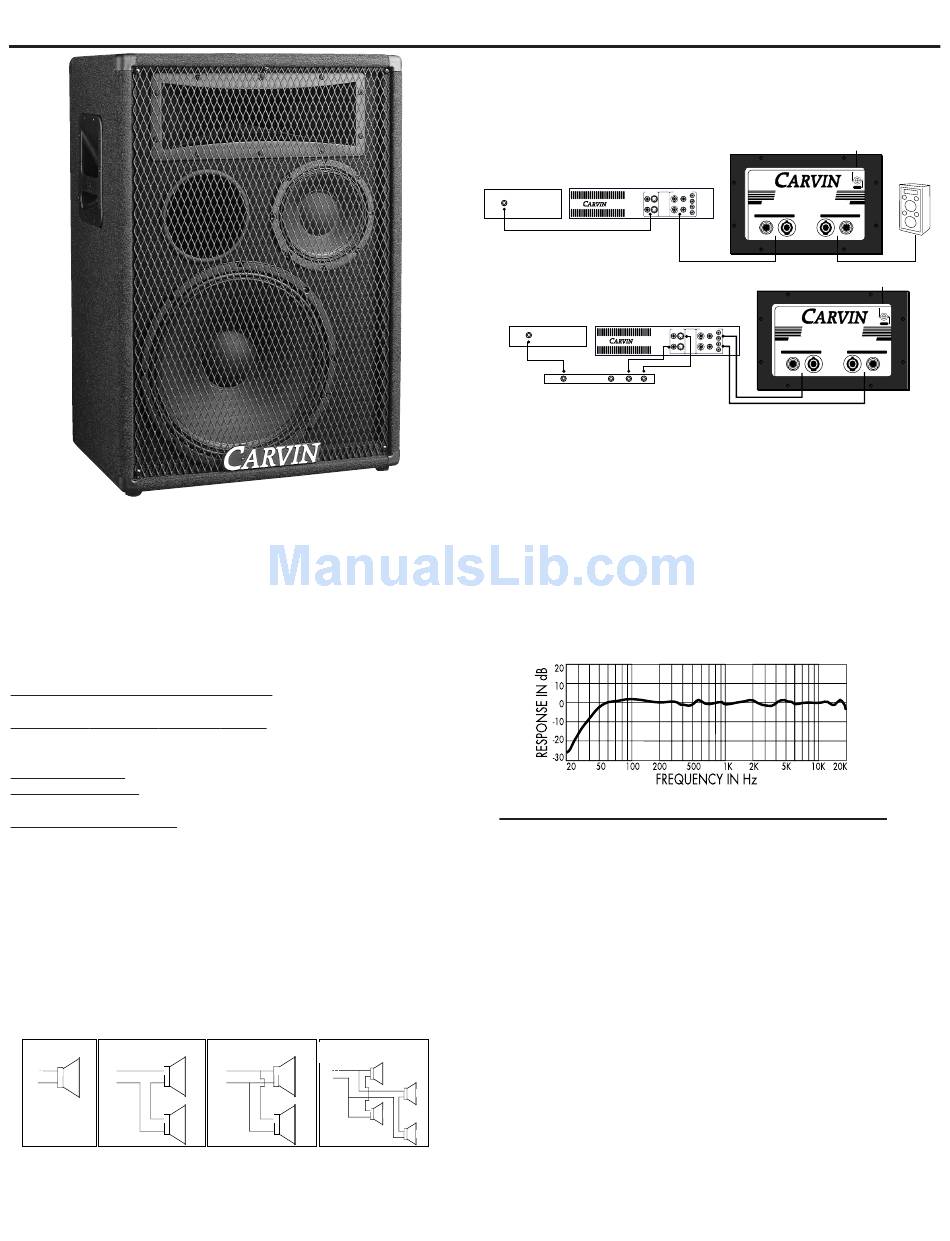

CARVIN ENGINEERING DATA
Congratulations on your selection of the 1584 loudspeaker. The 1584
vented, 400 watt 3-way speaker enclosure will exceed the performance
of the competition because of its superior design computer optimized
cabinet design, advanced C1584 crossover, and precisely aligned
speaker components. The 1584 is an outstanding system for a vast
array of applications ranging from clubs to outdoor use.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship your
unit, always use the original carton and packing material. CARVIN and the shipping
company are not liable for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this manual
for your records. Return the warranty card with your name and comments to us.
WARRANTY
Parts and labor are covered for 1 year on manufacturer's defects. Warranty does not
cover burned out drivers caused by excessive power or distortion, or physical damage
caused by general use, moisture or dust. CAUTION: Distortion from power amps can
destroy drivers much faster than clean power. Contact Carvin's Customer Service at
800-854-2235 or returnsrepairs@carvin.com. Customer is responsible for shipping
charges.
TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS
Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL
SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+
+
+
+
8Ω
8Ω
16Ω
8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-01584 0902
1584
PARALLEL CONNECTION
SERIES/PARALLEL
4Ω TOTAL IMPEDANCE
CONNECTION
8Ω TOTAL IMPEDANCE
+
+
+
+
8Ω
8Ω
4Ω
8Ω
+
8Ω
+
8Ω

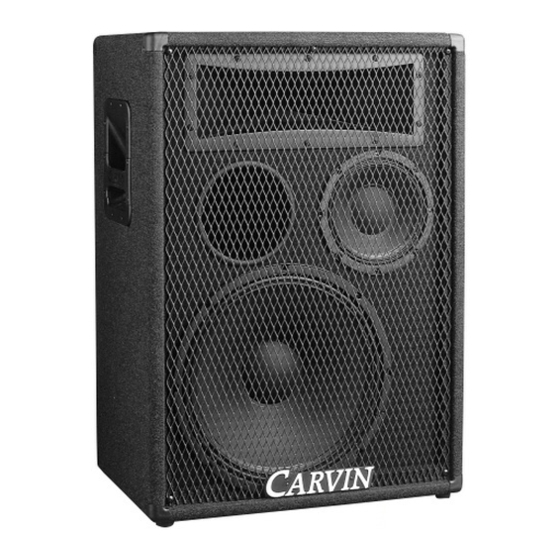

1584 SPEAKER SYSTEM
See other side for SPS™ Powered Speaker operation
REAR CONNECT PLATE
Two standard 1/4" phone jacks and two Twist Lok™ connectors are featured.
See hookup diagrams for full range and biamp options.
NORMAL FULL RANGE HOOKUP
MIXER
POWER AMP
OUT
BI-AMP HOOKUP
MIXER
OUT
MIXER
IN
(Set FREQ 600Hz)
ELECTRONIC CROSSOVER
SPEAKER CABLES
Use either 1/4" 16 gauge copper wire speaker cable or high-current Twist- Lok™
cables with heavy 4 conductor 12 gauge copper wire. The Carvin PH50 is
adequate for lengths up to 50' under normal use. You can DAISY-CHAIN up to one
additional speaker per cable by using the OUTPUT connector. Be sure to note the
total impedance to the amp so it is not lower than it's recommended impedance.
See Typical Loudspeaker Impedance Configurations.
SUGGESTIONS FOR OPTIMAL PERFORMANCE
Raise the enclosure to the ear level of your audience for greater coverage. To
help control feedback, keep the speakers in front of the microphone. Never direct
the microphone towards the speaker. Use a graphic EQ for further feedback
control. For greater coverage, add a second speaker system 20° to 30° off axis.
MODEL 1584 SPEAKER SYSTEM SPECS:
Frequency Response: 50 Hz to 19 kHz ±3 dB
Useable Low Frequency
Input & Output Connectors: Two 1/4", two Twist-Lok™
Horn Driver Protection: Yes—Relay Dimming
Woofer Enclosure Type: Vented Box
+
8Ω
For your records, you may wish to record the following information.
+
Serial No._____________________ Invoice Date_______________
8Ω
SPEAKER SYSTEM
INPUT
SPK OUT
1
Toll Free 1-800-854-2235
USA
BIAMP SW–HI FREQ. INPUT 8Ω
SPEAKER SYSTEM
POWER AMP
INPUT
SPK OUT
1
USA
SUB
LO
HI
1584 FREQUENCY RESPONSE
Bandwidth: 38 Hz (-10 dB)
Power Handling: 400 watts Continuous Program Power
Recommended Amp: 75 to 600 watts
Sensitivity: 100 dB SPL, 1 Watt @ 1 meter
Coverage Angles: 90° Horizontal, 45° Vertical
Nominal Impedance: 8Ω
Crossover Type: C1584 Constant Voltage
BIAMP Support: Yes—Panel Switch
Enclosure Covering: Black Duratuff™
Dim/Wt: 22"W x 15.25"D x 31.5"H, 68 lbs.
Warranty: One Year, Extended Warranty available
Optional Cables: PH50, SPK25, SPK50, SPK100
Optional Vinyl Cover: CVS1584
c
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
INSTRUCTIONS
MODE SWITCH: FULL RANGE
ADDITIONAL
FULL
RANGE
SYSTEM
BIAMP
1
584
PROFESSIONAL SOUND REINFORCEMENT
8 Ω 400 Watts
FULL RANGE—INPUT
FULL RANGE —PARALLEL
JACKS WIRED
BIAMP SW–LOW FREQ. INPUT 8Ω
PARALLEL IN FULL
RANGE MODE
Speakon™
1+SIGNAL
1—GROUND
2+ & 2—
MADE IN THE
NOT USED
USA
MODE SWITCH: BIAMP
FULL
RANGE
BIAMP
1
584
PROFESSIONAL SOUND REINFORCEMENT
8 Ω 400 Watts
FULL RANGE—INPUT
FULL RANGE —PARALLEL
JACKS WIRED
BIAMP SW–HI FREQ. INPUT 8Ω
PARALLEL IN FULL
BIAMP SW–LOW FREQ. INPUT 8Ω
RANGE MODE
Speakon™
1+SIGNAL
1—GROUND
2+ & 2—
MADE IN THE
USA
NOT USED
