CARVIN RL118 Instructions

CARVIN ENGINEERING DATA

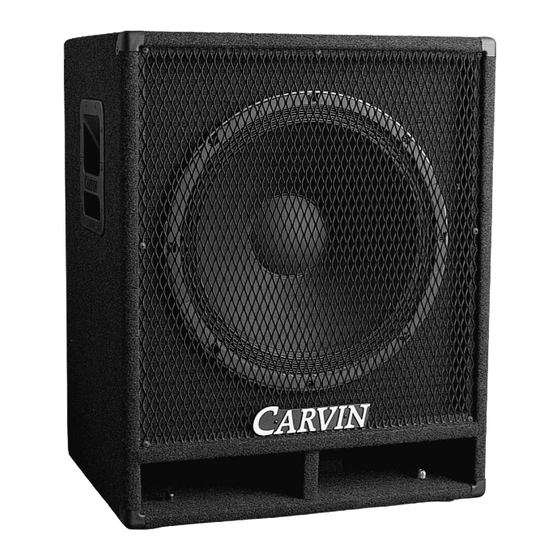

The RL118 features our super duty cast frame, 800 watt, 18 inch woofer in a
computer tuned, front shelf ported cabinet which is 18 inches deep. High output
and deep, earth shaking bass are easily achieved without "breaking up" or
"bottoming out". Great as a stand-alone unit or as part of a bi-amped system. The
enclosure is built from light weight, yet incredibly strong, poplar plywood and is
covered in bulletproof Duratuff II™ carpet covering. Steel corners and a steel mesh
grill further protect your investment.
Caster inserts are already in place if you choose to add the optional CTS4 casters.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the best
possible protection during shipment. CARVIN and the shipping company are not liable
for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with your
name and comments to us.
TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS
Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL
SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-???? 0705
RL118
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+ + +
+
8Ω
8Ω
4Ω 8Ω
+
8Ω
+
8Ω

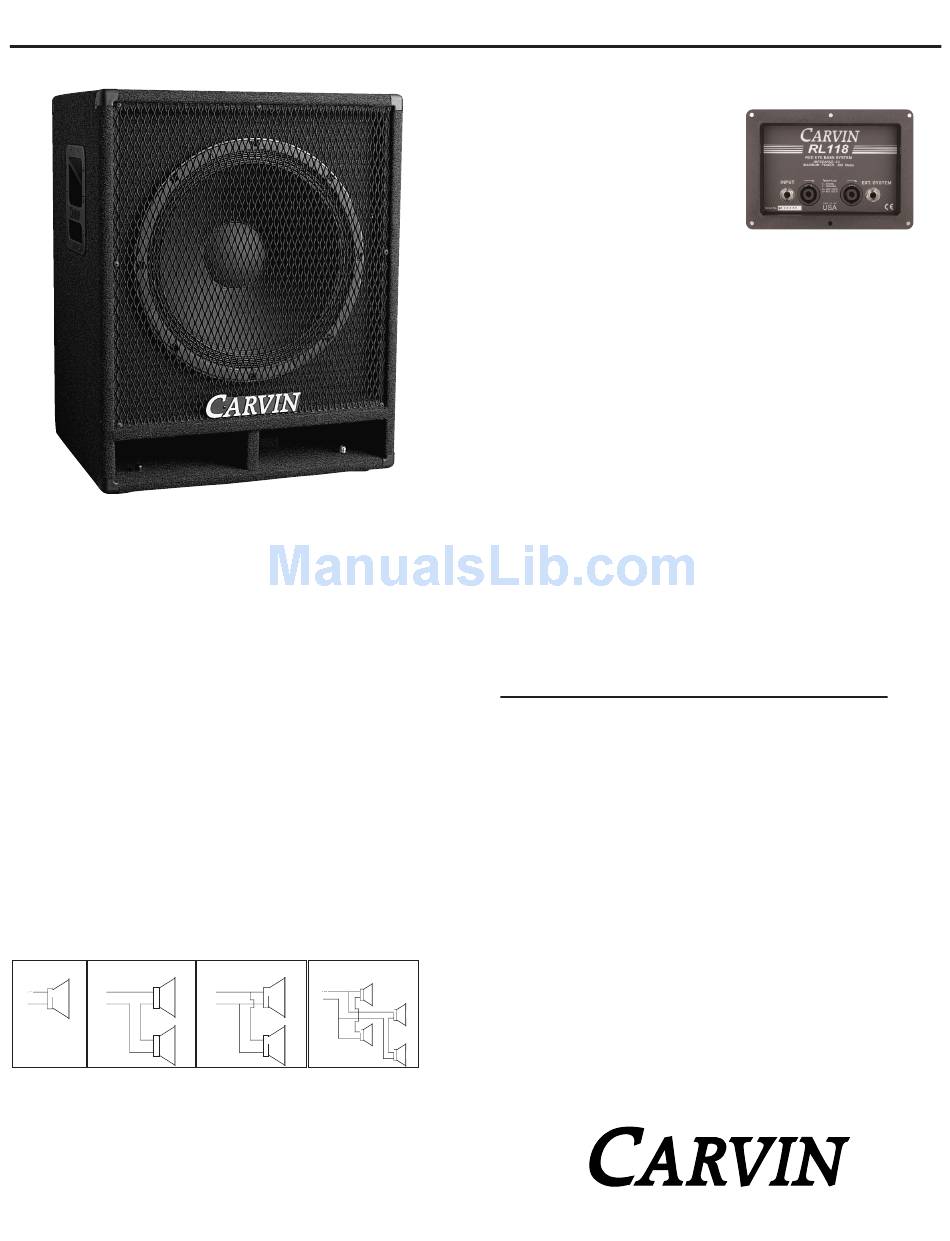

RL118 BASS SPEAKER SYSTEM
REAR CONNECT PLATE
Two standard 1/4" phone jacks and two
high current Speakon
featured. One for connecting to the power
amp and the other for connecting to an
additional speaker system.
SPEAKER CABLES
12 gauge Speakon™ speaker cables will provide a secure connection and high
current transfer of power to the speakers. You can also use standard 1/4" speaker
cables instead of the Speakon™ cables provided they are at least 16 gauge. You
can DAISY-CHAIN up to one additional speaker per cable by using the unused
OUTPUT jack (right side) on your speaker jack plate. Be sure to note the total
impedance to the amp so it is not lower than it's recommended impedance. See
Typical Loudspeaker Impedance Configurations.
PRECAUTIONS
1) DO NOT EXCEED THE POWER RATING marked on the rear connect plate.
Excessive power will destroy drivers. 2) DISTORTION from power amps will destroy
drivers much faster than clean power. 3) WATER, MOISTURE, and DUST are
harmful to drivers causing failure which is not covered under warranty.
WARRANTY
CARVIN loudspeakers are covered by a ONE year limited warranty unless
otherwise stated. Warranty coverage is limited to original manufactures defects
only. WARRANTY DOES NOT COVER: 1) Opened or burned voice coils. 2) Torn
cones caused by improper packing or abuse. 3) Damage from rain, moisture, ETC.
When returning defective driver(s), remove them from the enclosure to reduce
shipping costs. DO NOT stuff paper into the driver(s). Return pre-paid by UPS.
Include your address and description of the problem. Your driver(s) will be returned
COD for the cost of shipping and reconditioning if not covered under warranty.
MODEL RL118 BASS SPEAKER SYSTEM SPECS:
Frequency Response: 38 to 2k Hz - useable to 30 Hz @ -10dB
Useable Low Frequency
Nominal Impedance: 4Ω
Output Connector: Speakon ™ and 1/4" Phone Connector
Woofer Enclosure Type: Computer Optimized Vented Box
Enclosure Covering: Duratuff II™
Optional Vinyl Cover: CVS118
+
8Ω
+
8Ω
™ connectors are
Bandwidth: 30Hz (-10 dB)
Drivers: One heavy duty 18" PS18 Woofer
Power Handling: 800 watts
Coverage Angles: 90° Horizontal, 90° Vertical
Input Connector: Speakon ™ and 1/4" Phone Connector
Dimensions: 23.5"W x 18.25"D x 29.25"H
Warranty: One Year
Weight: 74 lbs.
Optional Cable: PH8
Optional Casters: CTS4
12340 World Trade Drive, San Diego, CA 92128
(619) 487-1600 (800) 854-2235
www.carvin.com
