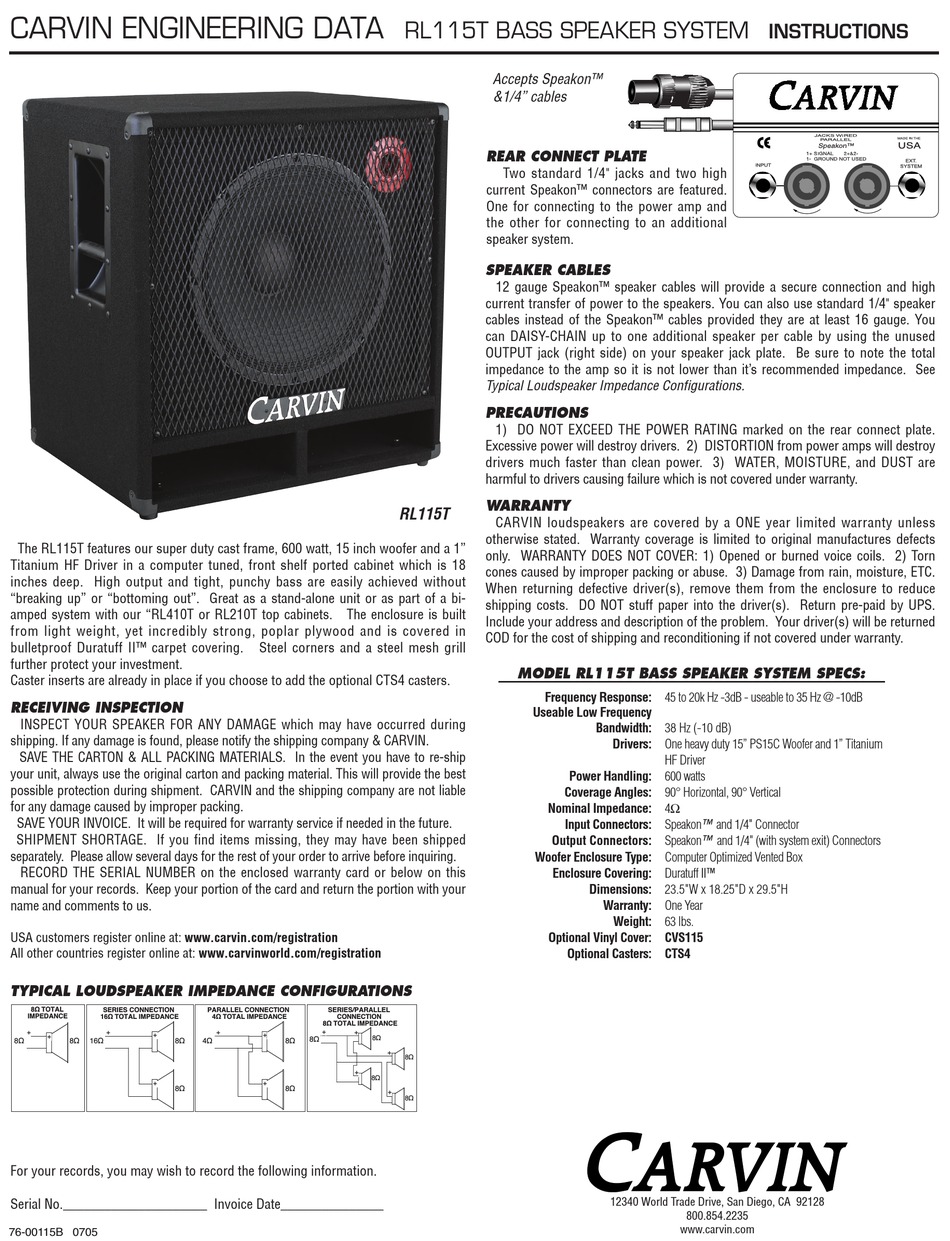

CARVIN ENGINEERING DATA
The RL115T features our super duty cast frame, 600 watt, 15 inch woofer and a 1"
Titanium HF Driver in a computer tuned, front shelf ported cabinet which is 18
inches deep. High output and tight, punchy bass are easily achieved without
"breaking up" or "bottoming out". Great as a stand-alone unit or as part of a bi-
amped system with our "RL410T or RL210T top cabinets. The enclosure is built
from light weight, yet incredibly strong, poplar plywood and is covered in
bulletproof Duratuff II™ carpet covering.
further protect your investment.
Caster inserts are already in place if you choose to add the optional CTS4 casters.

RECEIVING INSPECTION

INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the best
possible protection during shipment. CARVIN and the shipping company are not liable
for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with your
name and comments to us.
USA customers register online at: www.carvin.com/registration
All other countries register online at: www.carvinworld.com/registration

TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS

Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-00115B 0705
Steel corners and a steel mesh grill
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+
+ +
+
8Ω
8Ω
4Ω 8Ω
+
8Ω
+
8Ω

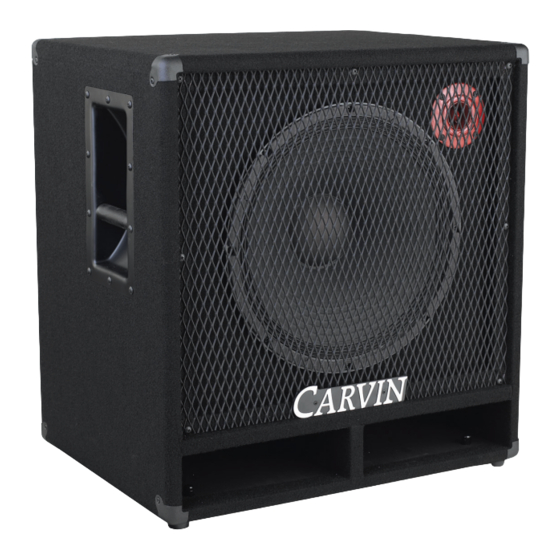

RL115T BASS SPEAKER SYSTEM
Accepts Speakon™
&1/4" cables

REAR CONNECT PLATE

Two standard 1/4" jacks and two high
current Speakon™ connectors are featured.
One for connecting to the power amp and
the other for connecting to an additional
speaker system.

SPEAKER CABLES

12 gauge Speakon™ speaker cables will provide a secure connection and high
current transfer of power to the speakers. You can also use standard 1/4" speaker
cables instead of the Speakon™ cables provided they are at least 16 gauge. You
can DAISY-CHAIN up to one additional speaker per cable by using the unused
OUTPUT jack (right side) on your speaker jack plate. Be sure to note the total
impedance to the amp so it is not lower than it's recommended impedance. See
Typical Loudspeaker Impedance Configurations.

PRECAUTIONS

1) DO NOT EXCEED THE POWER RATING marked on the rear connect plate.
Excessive power will destroy drivers. 2) DISTORTION from power amps will destroy
drivers much faster than clean power. 3) WATER, MOISTURE, and DUST are
harmful to drivers causing failure which is not covered under warranty.

WARRANTY

RL115T
CARVIN loudspeakers are covered by a ONE year limited warranty unless
otherwise stated. Warranty coverage is limited to original manufactures defects
only. WARRANTY DOES NOT COVER: 1) Opened or burned voice coils. 2) Torn
cones caused by improper packing or abuse. 3) Damage from rain, moisture, ETC.
When returning defective driver(s), remove them from the enclosure to reduce
shipping costs. DO NOT stuff paper into the driver(s). Return pre-paid by UPS.
Include your address and description of the problem. Your driver(s) will be returned
COD for the cost of shipping and reconditioning if not covered under warranty.

MODEL RL115T BASS SPEAKER SYSTEM SPECS:

Frequency Response: 45 to 20k Hz -3dB - useable to 35 Hz @ -10dB
Useable Low Frequency
Coverage Angles: 90° Horizontal, 90° Vertical
Nominal Impedance: 4Ω
Input Connectors: Speakon ™ and 1/4" Connector
Output Connectors: Speakon ™ and 1/4" (with system exit) Connectors
Woofer Enclosure Type: Computer Optimized Vented Box
Enclosure Covering: Duratuff II™
Optional Vinyl Cover: CVS115
+
8Ω
+
8Ω
Bandwidth: 38 Hz (-10 dB)
Drivers: One heavy duty 15" PS15C Woofer and 1" Titanium
HF Driver
Power Handling: 600 watts
Dimensions: 23.5"W x 18.25"D x 29.5"H
Warranty: One Year
Weight: 63 lbs.
Optional Casters: CTS4
12340 World Trade Drive, San Diego, CA 92128
800.854.2235
www.carvin.com
