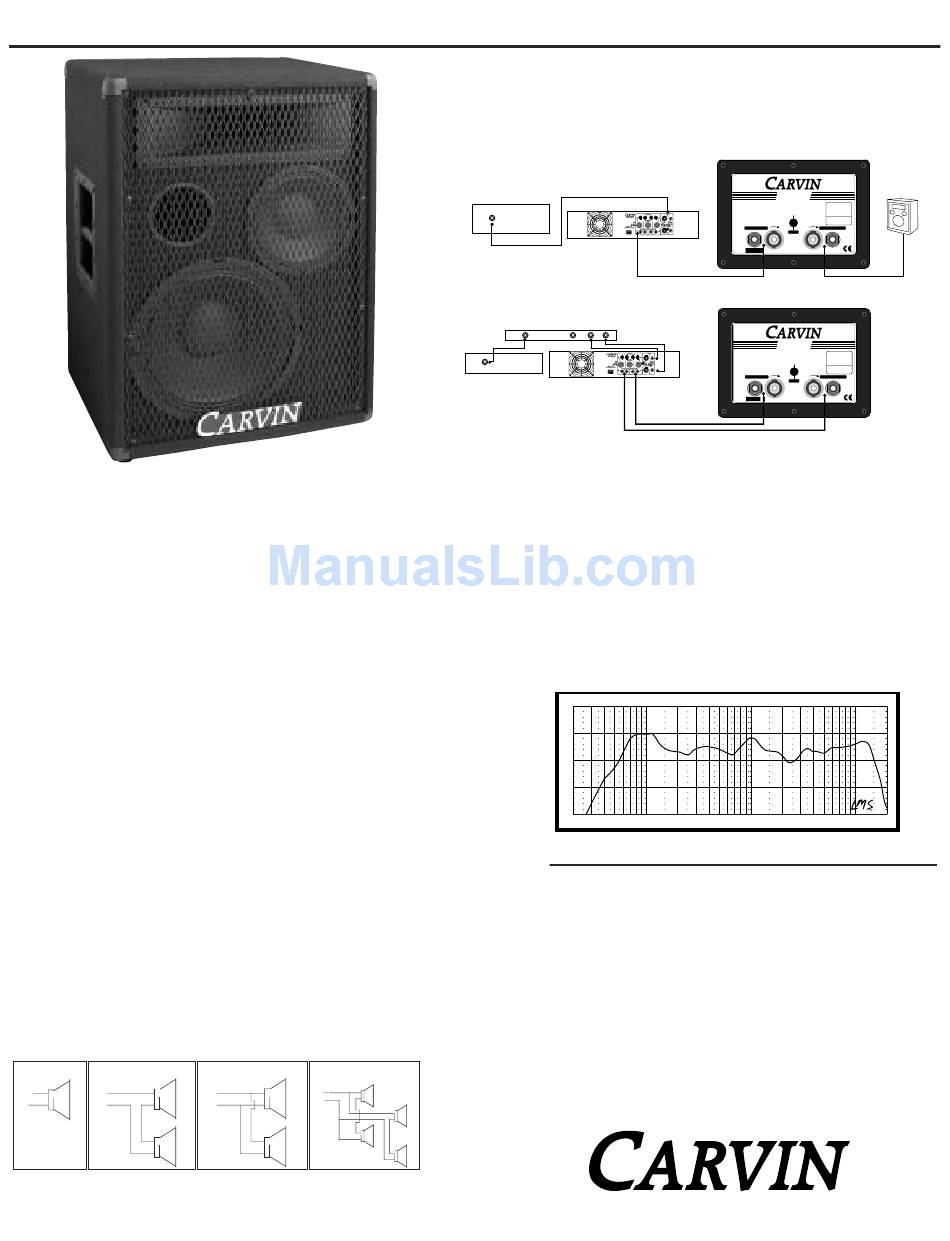

CARVIN 1283 Instructions

CARVIN ENGINEERING DATA

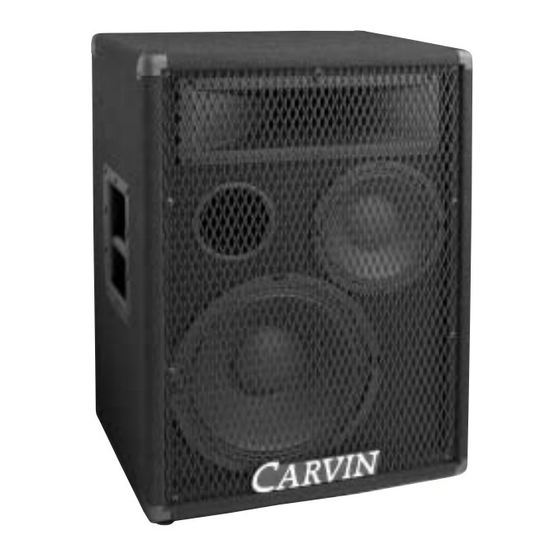

Congratulations on your selection of the 1283 loudspeaker. The 1283
vented, 300 watt 3-way speaker enclosure will exceed the power and
output of the competition and it will sound better because of its superior
design featuring a computer optimized cabinet, crossover and the Pro
Series speaker components. We realize that for a loudspeaker to sound
its finest, it must be a system of precisely aligned components. With our
matched 12" woofer, 8" midrange and titanium horn, the 1283 is an
outstanding system for a vast array of applications ranging from clubs to
outdoor use.
RECEIVING INSPECTION
INSPECT YOUR SPEAKER FOR ANY DAMAGE which may have occurred during
shipping. If any damage is found, please notify the shipping company & CARVIN.
SAVE THE CARTON & ALL PACKING MATERIALS. In the event you have to re-ship
your unit, always use the original carton and packing material. This will provide the best
possible protection during shipment. CARVIN and the shipping company are not liable
for any damage caused by improper packing.
SAVE YOUR INVOICE. It will be required for warranty service if needed in the future.
SHIPMENT SHORTAGE. If you find items missing, they may have been shipped
separately. Please allow several days for the rest of your order to arrive before inquiring.
RECORD THE SERIAL NUMBER on the enclosed warranty card or below on this
manual for your records. Keep your portion of the card and return the portion with your
name and comments to us.
WARRANTY
Parts and labor are covered for 1 year on manufacturer's defects. Warranty does not
cover burned out drivers caused by excessive power or distortion, or physical damage
caused by general use, moisture or dust. CAUTION: Distortion from power amps can
destroy drivers much faster than clean power. Contact Carvin's Customer Service at
800-854-2235 or returnsrepairs@carvin.com. Customer is responsible for shipping
charges.
TYPICAL LOUDSPEAKER IMPEDANCE CONFIGURATIONS
Individual speaker or speaker cabinet wiring examples for total impedance.
8Ω TOTAL SERIES CONNECTION
IMPEDANCE
16Ω TOTAL IMPEDANCE
+ +
+
+
8Ω 8Ω 16Ω 8Ω
+
8Ω
For your records, you may wish to record the following information.
Serial No._____________________ Invoice Date_______________
76-01283A 0902
1283
PARALLEL CONNECTION SERIES/PARALLEL
4Ω TOTAL IMPEDANCE CONNECTION
8Ω TOTAL IMPEDANCE
+
+ +
+
8Ω
8Ω
4Ω 8Ω
+
8Ω
+
8Ω
1283 SPEAKER SYSTEM
See other side for SPS™ Powered Speaker operation
REAR CONNECT PLATE
Two standard 1/4" phone jacks and two Twist Lok™ connectors are featured.
See hookup diagrams for full range and biamp options.
NORMAL FULL RANGE HOOKUP
MIXER
OUT
POWER AMP
BI-AMP HOOKUP
IN (Set FREQ 600Hz)
ELECTRONIC CROSSOVER
MIXER
OUT
MIXER
SPEAKER CABLES
Use either 1/4" 16 gauge copper wire speaker cable or high-current Twist- Lok™
cables with heavy 4 conductor 12 gauge copper wire. The Carvin PH50 is
adequate for lengths up to 50' under normal use. You can DAISY-CHAIN up to one
additional speaker per cable by using the OUTPUT connector. Be sure to note the
total impedance to the amp so it is not lower than it's recommended impedance.
See Typical Loudspeaker Impedance Configurations.
SUGGESTIONS FOR OPTIMAL PERFORMANCE
Raise the enclosure to the ear level of your audience for greater coverage. To
help control feedback, keep the speakers in front of the microphone. Never direct
the microphone towards the speaker. Use a graphic EQ for further feedback
control. For greater coverage, add a second speaker system 20° to 30° off axis.
100
95
90
85
80
MODEL 1283 SPEAKER SYSTEM SPECS:
Useable Low Frequency Bandwidth:
+
8Ω
+
8Ω
BIAMP—HI FREQ.
xxxxxx
Serial No.
SUB LO HI
BIAMP—HI FREQ.
xxxxxx
Serial No.
1283 FREQUENCY RESPONSE
dB spl
2 0 F r e q u e n c y 1 0 0 5 0 0 1 k
Frequency Response: 60 Hz to 19 kHz ±3 dB
50 Hz (-10 dB)
Power Handling: 300 watts Continuous Program Power
Recommended Amp: 75 to 500 watts
Sensitivity: 100 dB SPL, 1 Watt @ 1 meter
Coverage Angles: 90° Horizontal, 45° Vertical
Nominal Impedance: 8Ω
Crossover Type: C1283 Constant Voltage
Input & Output Connectors: Two 1/4", two Twist-Lok™
BIAMP Support: Yes—Panel Switch
Horn Driver Protection: Yes
Woofer Enclosure Type: Vented Box
Enclosure Covering: Black Duratuff™
Dim/Wt: 20"W x 14"D x 26"H, 68 lbs.
Warranty: One Year, Extended Warranty available
Optional Cables: PH50, SPK25, SPK50, SPK100
Optional Vinyl Cover: CVS832
12340 World Trade Drive, San Diego, CA 92128
800-854-2235
www.carvin.com
INSTRUCTIONS
MODE SWITCH: FULL RANGE
ADDITIONAL
1283 SYSTEM
PRO SOUND REINFORCEMENT
TWIST-LOK
IMPEDANCE: 8 Ohms
1+ SIGNAL
POWER RATING: 300 Watts 1– GROUND
2+ NOT USED
FULL RANGE
2– NOT USED
FULL RANGE MODE:
JACKS WIRED
IN PARALLEL
BIAMP—LOW FREQ.
BIAMP
MADE IN THE
US A
MODE SWITCH: BIAMP
1283
PRO SOUND REINFORCEMENT
TWIST-LOK
IMPEDANCE: 8 Ohms
1+ SIGNAL
POWER RATING: 300 Watts 1– GROUND
2+ NOT USED
FULL RANGE
2– NOT USED
FULL RANGE MODE:
JACKS WIRED
IN PARALLEL
BIAMP—LOW FREQ.
BIAMP
MADE IN THE
US A
H z 5 k 1 0 k 2 0 k
