Gefen EXT-DVI-CAT5-4X User Manual

4x4 dvi extender s
Hide thumbs Also See for EXT-DVI-CAT5-4X:
Table of Contents

Advertisement

Quick Links

Download this manual
®
EXT-DVI-CAT5-4X
User Manual
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
w
ww.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-DVI-CAT5-4X and is the answer not in the manual?

Questions and answers

Related Manuals for Gefen EXT-DVI-CAT5-4X

Summary of Contents for Gefen EXT-DVI-CAT5-4X

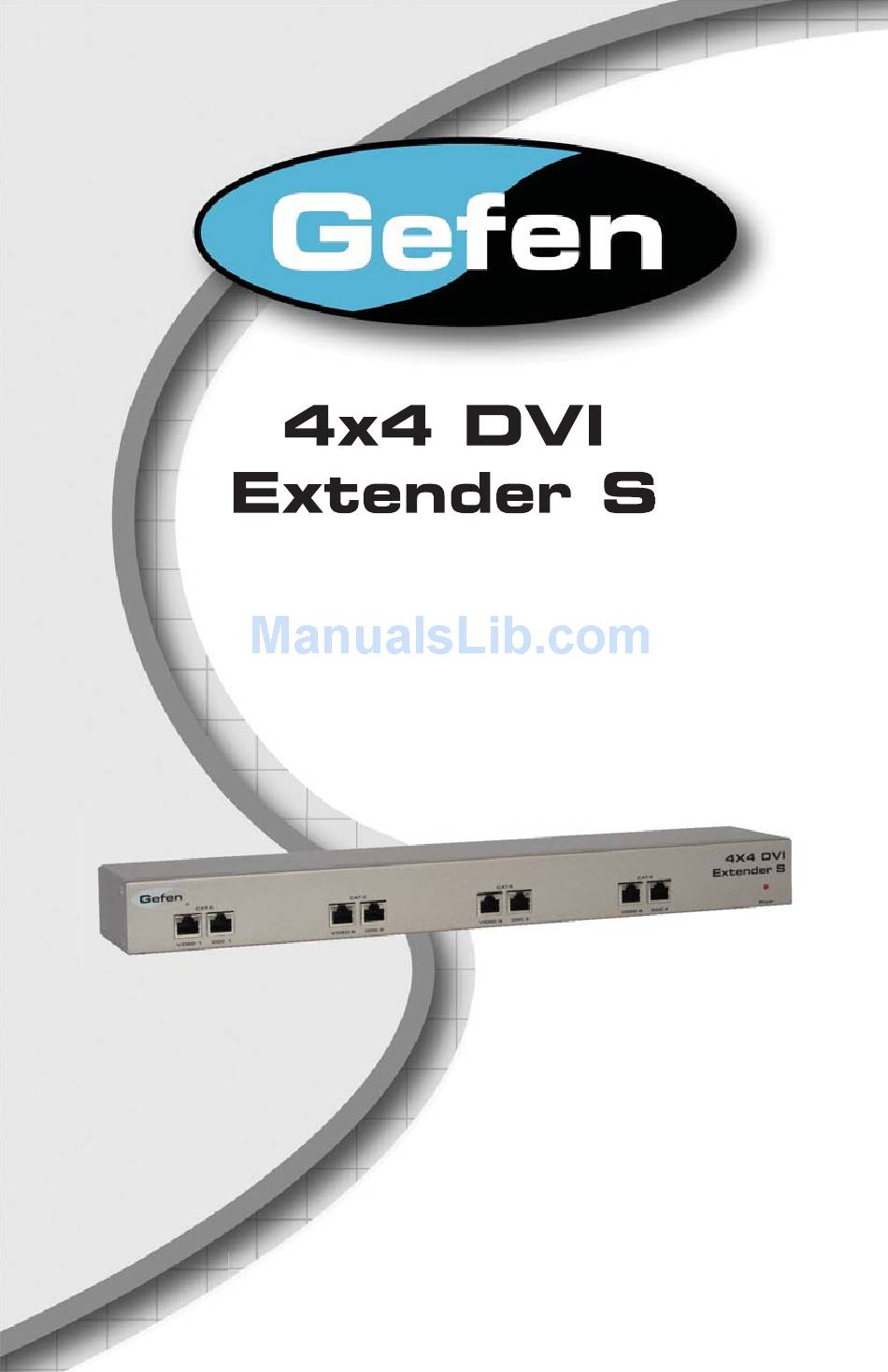

  • Page 1 ® EXT-DVI-CAT5-4X User Manual ww.gefen.com...
  • Page 3 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. 4x4 DVI Extender S is a trademark of Gefen, LLC © 2011 Gefen, LLC. All rights reserved.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Sender Panel Layout Receiver Panel Layout Panel Descriptions Connecting the 4x4 DVI Extender S 4x4 DVI Extender S Confi guration Manual Equalization Procedure DIP Switch Location Diagram 10 Network Cable Wiring Diagram 11 Rack Mount Installation 12 Mounting Plate Installation 13 Specifi...

  • Page 5: Introduction

    Congratulations on your purchase of the 4x4 DVI Extender S Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate.

  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 4X4 DVI EXTENDER S • The 4x4 DVI Extender S Extender and DVI CAT5 MSR units are housed in a metal box for better RF shielding. • The maximum cable extension is 300 feet (91 meters) for video resolutions of 1080i and below.

  • Page 7: Features

    FEATURES Features • Easily distribute four DVI sources to four remote DVI displays • Extends video signals up to 300 feet over CAT-5, CAT-5e or CAT-6a network cable • Maintains 1920 x 1200, 1080p, and 2k resolution video • HDCP-compliant Package Includes (1) 4x4 DVI Extender S - Sender unit (4) DVI CAT5 MS - Receiver unit...

  • Page 8: Sender Panel Layout

    SENDER PANEL LAYOUT...

  • Page 9: Receiver Panel Layout

    RECEIVER PANEL LAYOUT Front Back...

  • Page 10: Panel Descriptions

    PANEL DESCRIPTIONS Sender Unit CAT-5 Video / DDC (1 - 4) Connect a pair of CAT-5 cables from each set of RJ-45 jacks (Video/DDC) on the Sender unit to the respective RJ-45 jacks on the DVI CAT5 MS Receiver unit. 24V DC Connect the included 24V DC power supply to this power receptacle and connect the AC power cord to an available electrical outlet.

  • Page 11: Connecting The 4X4 Dvi Extender S

    CONNECTING THE 4X4 DVI EXTENDER S How to Connect the 4x4 DVI Extender S Connect your sources (up to four) to the 4x4 DVI Extender S DVI inputs using the supplied DVI cables. Connect up to four displays to the DVI output ports on each DVI CAT5 MS Receiver unit.

  • Page 12: Manual Equalization Procedure

    MANUAL EQUALIZATION PROCEDURE The 4x4 DVI Extender S Extender and DVI CAT5 MSR receiver units both have sets of DIP switches located on the underside of their casings. There is a piece of silver metallic tape that must be removed to expose these DIP switches. The 4x4 DVI Extender S Extender unit carries 4 banks of 4 DIP switches.

  • Page 13: Dip Switch Location Diagram

    DIP SWITCH LOCATION DIAGRAM 4x4 DVI Extender S FRONT Remove Tape Boost Dip Switches DVI CAT5 MSR Equalization Trim Pot Remove Tape Auto EQ Dip Switches...

  • Page 14: Network Cable Wiring Diagram

    Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance.

  • Page 15: Rack Mount Installation

    RACK MOUNT INSTALLATION Rack mount ears are provided for installation of this unit into a 1U rack mount space. Locate the side screws on the unit. Remove the front 2 screws that are located closest to the front of the unit. Using the removed screws, screw the rack mounting bracket into the unit.

  • Page 16: Mounting Plate Installation

    MOUNTING PLATE INSTALLATION Mounting Plate Installation Remove the rubber feet covering the screws off the bottom of the unit. Remove the screws. Line up the mounting plates and screw it on to the unit.

  • Page 17: Specifications

    SPECIFICATIONS Video Amplifi er Bandwidth ..............4 x 165 MHz Input Video Signal ................1.2 V p-p Input DDC Signal ................5V p-p (TTL) Single Link Range ..............1080p / 1920 x 1200 DVI Connector Type ........DVI-I 29 Pin Female (digital only) Link Connector ..................

  • Page 18: Specifi Cations

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 20 Rev A5 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
