Repair
HTX 2030
-For Portable Airless and Air-Assisted Spraying of Water-Based Architectural Coatings with Base Coat Pump-
-For Airless Spraying Architectural Coatings and Paints with Top Coat Pump-
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in this man-
ual. Save these instructions.
Model Number: 257369
Maximum Working Pressure:
Base Coat Pump: 1000 psi (69 bar, 6.9 MPa)
Top Coat Pump: 3300 psi (228 bar, 22.8 MPa)
Related Manuals
313888 - Operation (English)
313891 - Operation (French)
313893 - Operation (Spanish)
313892 - Repair (French)
313894 - Repair (Spanish)
313890 - Parts
313895 - HTX 2030 Flex Head and Pole Spray Applicator (English)
313896 - HTX 2030 Flex Head and Pole Spray Applicator (French)
313897 - HTX 2030 Flex Head and Pole Spray Applicator (Spanish)
310894 - Displacement Pump (Top Coat)
308491 - Texture Airless Spray Gun
313537 - HTX 2030 Applicator (English)
313603 - HTX 2030 Applicator (Chinese)
313908 - HTX 2030 Applicator (French)
313911 - HTX 2030 Applicator (Spanish)
313889B
ti13632a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTX 257369 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco HTX 257369

Summary of Contents for Graco HTX 257369

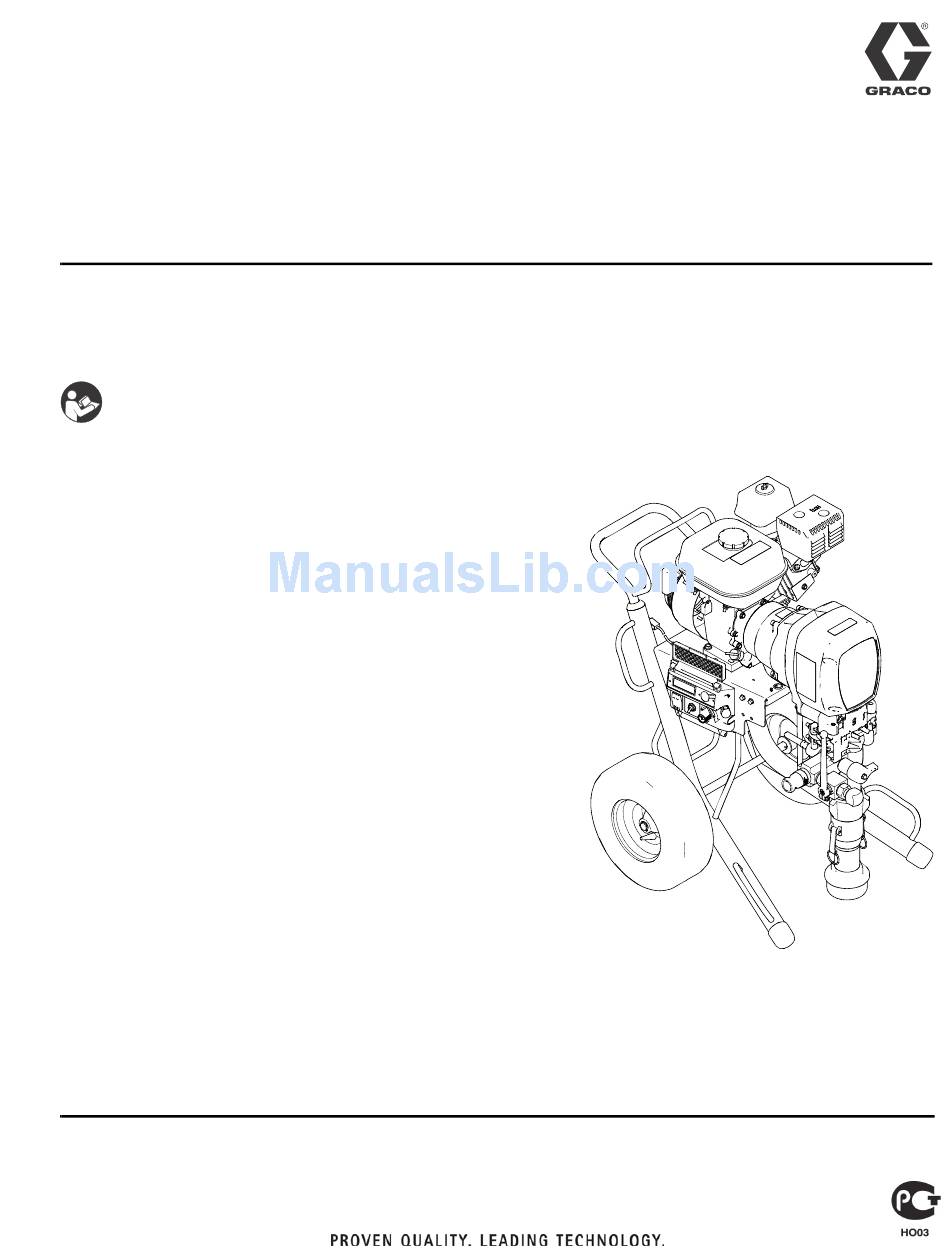

  • Page 1 Repair HTX 2030 -For Portable Airless and Air-Assisted Spraying of Water-Based Architectural Coatings with Base Coat Pump- -For Airless Spraying Architectural Coatings and Paints with Top Coat Pump- IMPORTANT SAFETY INSTRUCTIONS Read all warnings and instructions in this man- ual. Save these instructions. Model Number: 257369 Maximum Working Pressure: Base Coat Pump: 1000 psi (69 bar, 6.9 MPa)
