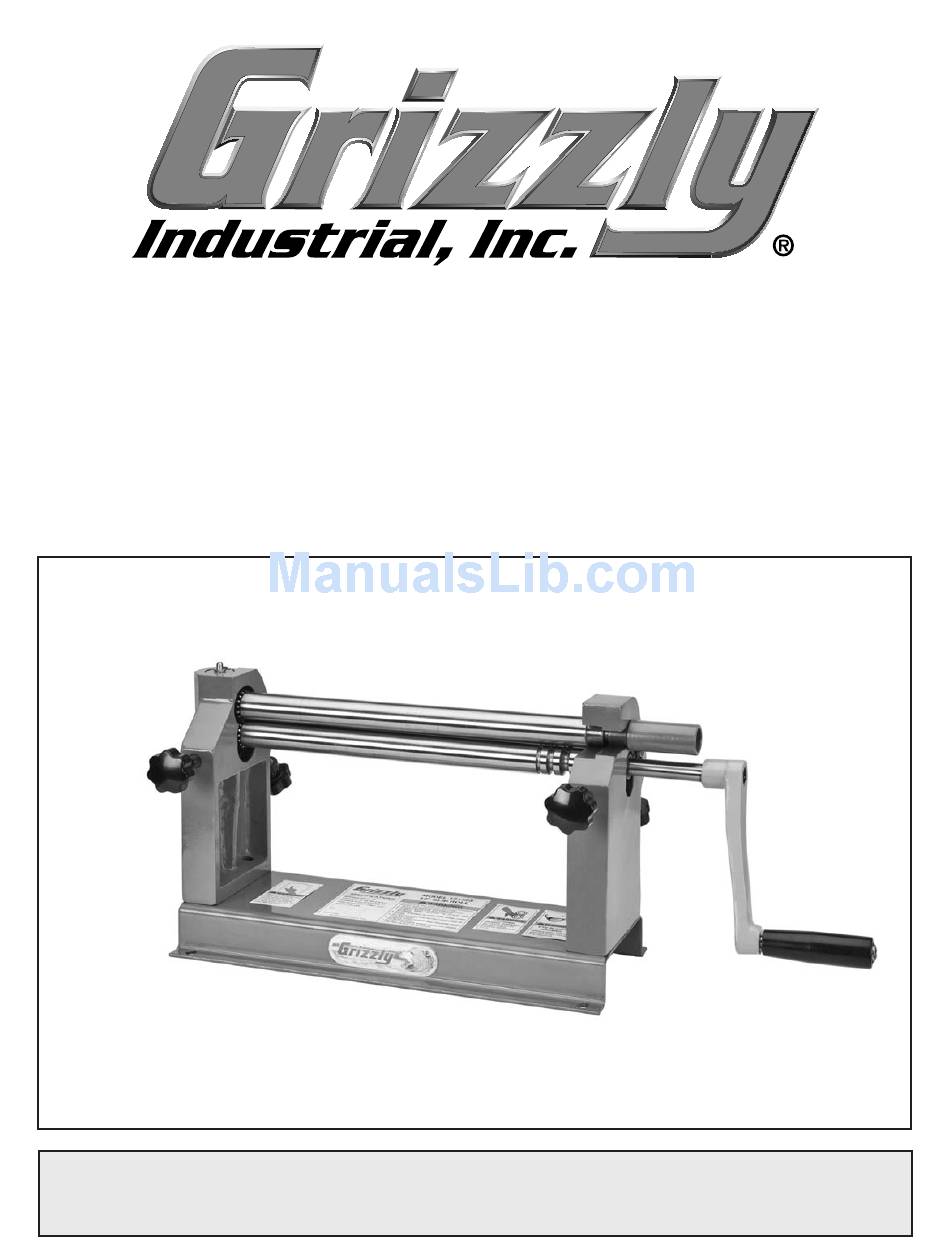

MODEL T23103
12" SLIP ROLL
OWNER'S MaNuaL
Copyright © SEptEMBEr, 2010 By grizzly induStrial, inC.
WaRNINg: NO PORTION Of ThIS MaNuaL May bE REPRODucED IN aNy ShaPE
OR fORM WIThOuT ThE WRITTEN aPPROvaL Of gRIzzLy INDuSTRIaL, INc.
For ModElS ManuFaCturEd aFtEr 12/09 #Cr13241 printEd in China.
