Grizzly T23082 Instructions

To reduce the risk of injury when using this
tool:
• Make sure the incoming air pressure
does not exceed the maximum rating of
200 PSI for the reel or hose/accessory
you are using. Otherwise, the fittings
could crack or explode.
• Protect your eyes by wearing safety
glasses or a face shield when assem-
bling, mounting and using the hose reel.
• Pressurized air may cause injury to
exposed body parts. Never expose any
part of your body to pressurized air.
• Make sure the hose reel is firmly mounted
to a stable surface before pressurizing.
• Do not allow children to use the hose
reel. Keep children clear of the work
area.
Specifications
max. incoming air pressure ................... 200 psi
max. hose length ................29
air Fitting size .........................................
Items Needed
phillips head screwdriver #2 ............................ 1
air Compressor ................................................. 1
air hose (Connects Compressor/hose reel).... 1
Fasteners ⁄ " ..................................... as needed
1
4
Inventory
the model t23082 is shipped fully assembled.
WaRNINg: NO pORTION Of THIS MaNUaL May bE REpRODUCED IN aNy SHapE
Or fOrM wIthOut the wrItteN aPPrOval Of GrIzzly INDuStrIal, INc.
⁄ ft. of ⁄ " hose
1 5
2 16
⁄ " npt
1
4
Copyright © DeCember, 2010 by grizzly inDustrial, inC.
#bl13622 printeD in China
MODEL T23082
HOSE REEL
INSTRUCTIONS
Mounting
1. Choose a location for mounting the hose
reel to a wall, floor, ceiling, etc. that uses a
load-bearing structural member capable of
supporting the combined weight of the reel,
hose and any forces applied to it. provide
adequate clearance for the hose reel to
swivel 180˚ left–right.
guide
hose stop

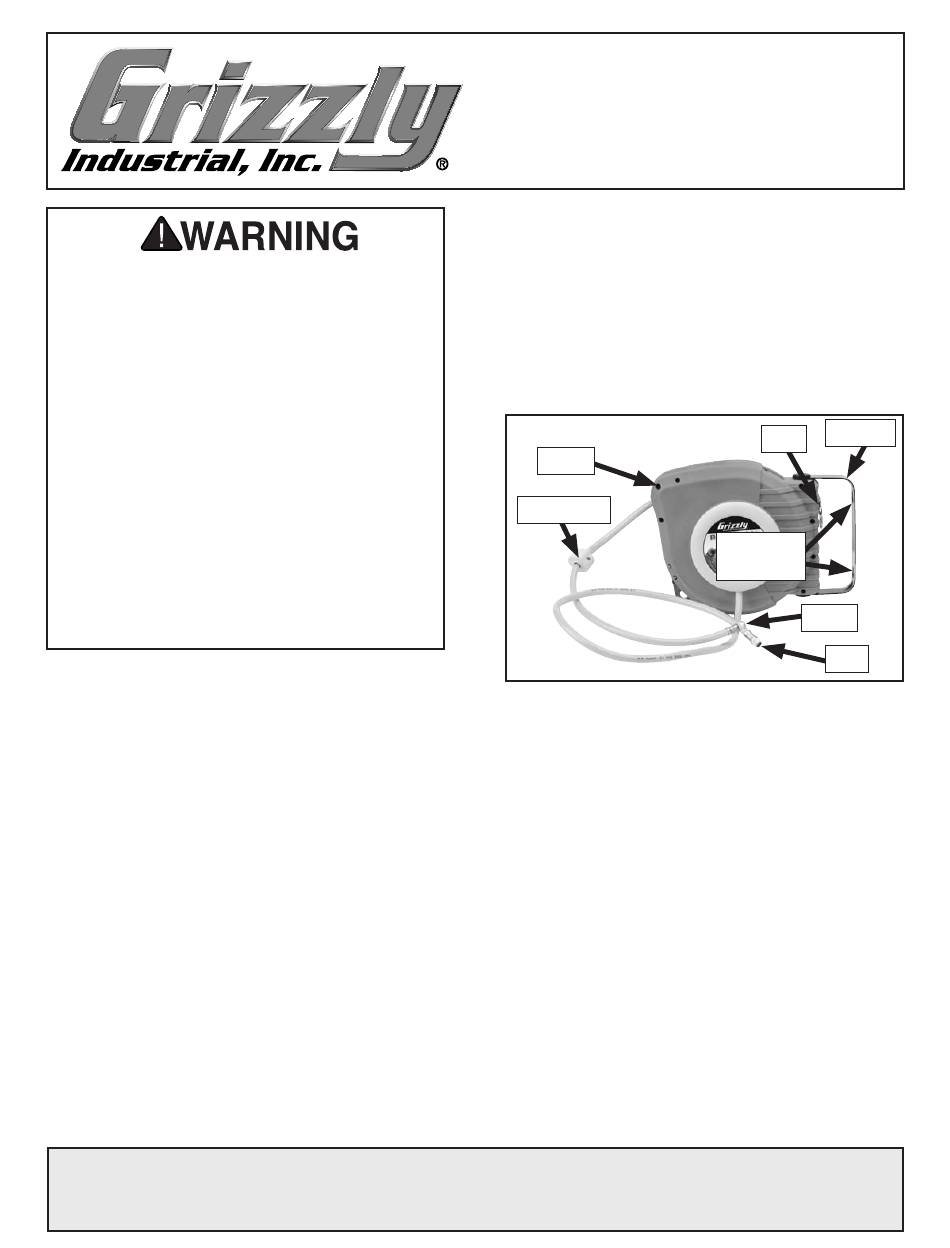

figure 1. main components.
wall or floor Mounting
mark the location of the mounting holes on
the bracket base (see figure 1) in the chosen
location, then secure with
ers.
ceiling Mounting Options
— use the mounting ring shown in figure 1
to mount the hose reel to a ceiling-mounted
hook.
— loosen the screws that secure the bracket
to the hose reel assembly, remove the
bracket, mark the bracket mounting holes
in the chosen location, then secure the
bracket with ⁄ " lag screws and flat wash-
1
4
ers. re-install the bracket onto the hose
reel.
bracket
ring
mounting
holes
outlet
inlet
⁄ " grade 8 fasten-
1
4
