Grizzly T26857 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T26857 Air Hose Reel can be mount-
ed on nearly any flat surface, including floors,
workbenches, walls, and ceilings. It is equipped
with 30' of ⁄ " air hose, but it can accommodate
3
8
hose lengths up to 50'.
To reduce the risk of injury when using this
tool:
• Make sure incoming air pressure does
not exceed maximum rating of 250
PSI. Otherwise fittings could crack or
explode.
• Protect your eyes by wearing safety
glasses or a face shield when assem-
bling and using hose reel.
• Pressurized air may cause injury to
exposed body parts. Never expose any
part of your body to pressurized air.
• Make sure hose reel is firmly mounted to
a stable surface before pressurizing.
Specifications
Max. Incoming Air Pressure ................... 250 PSI
Included Hose Length ................................. 30 ft.
Max. Hose Length on Reel ......................... 50 ft.
Air Fitting Size .........................................
Air Hose Diameter ...........................................
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄
1
4
COPYRIGHT © JULY, 2014 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#TSMN16683 PRINTED IN CHINA
Inventory
Description
A. Hose Reel Assembly .................................. 1
B. Handle ........................................................ 1
C. Lock Nuts M6-1 .......................................... 3
D. Phillips Head Screws M6-1 X 12 ................ 3
A

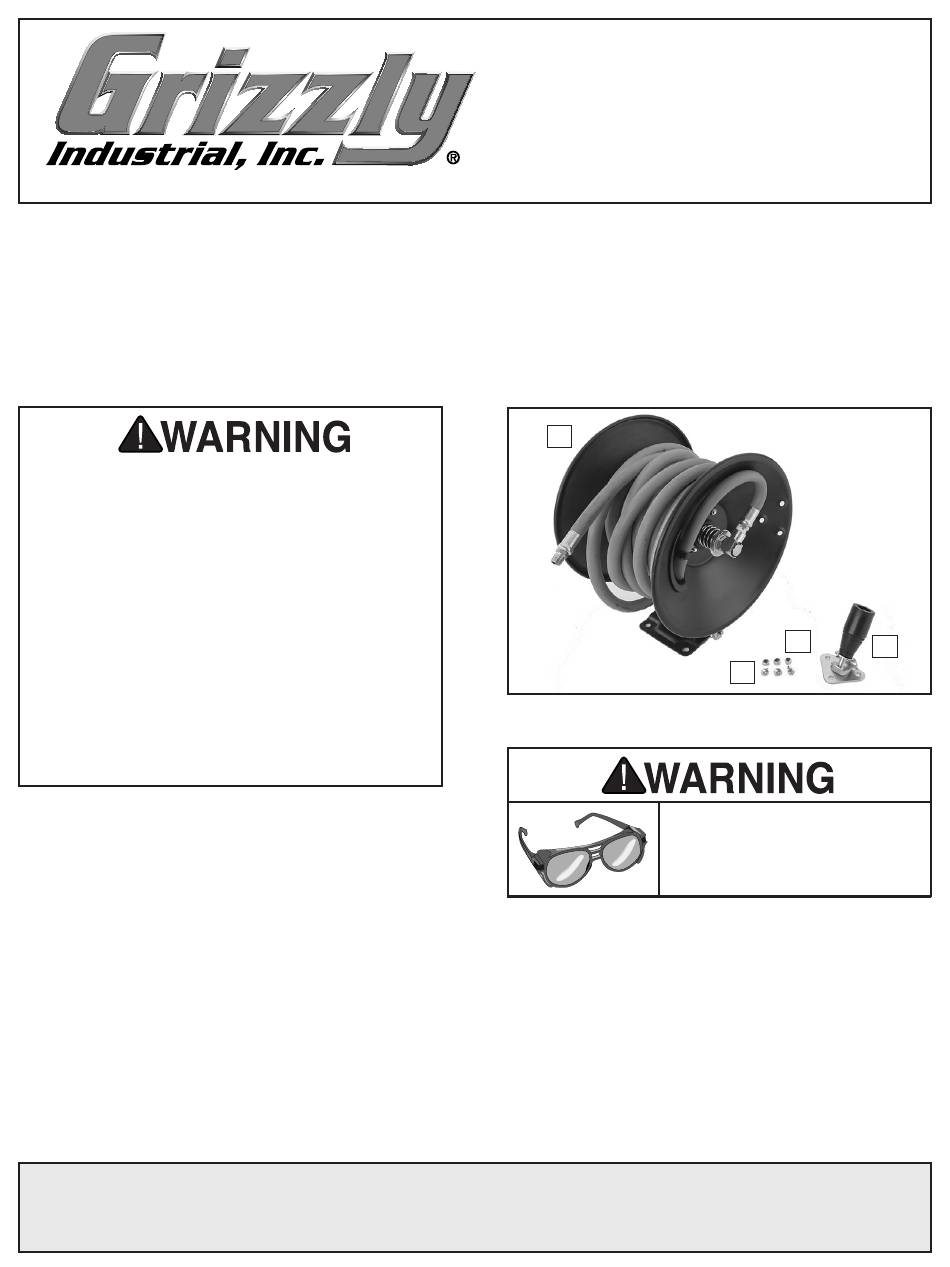

Figure 1. Model T26857 inventory components.
" NPT
⁄ "
3
8
MODEL T26857
AIR HOSE REEL
w/30' HOSE
INSTRUCTIONS
D
EYE INJURY HAZARD!
Always wear safety glasses
during use
serious personal injury.
Qty
C
B
to prevent
