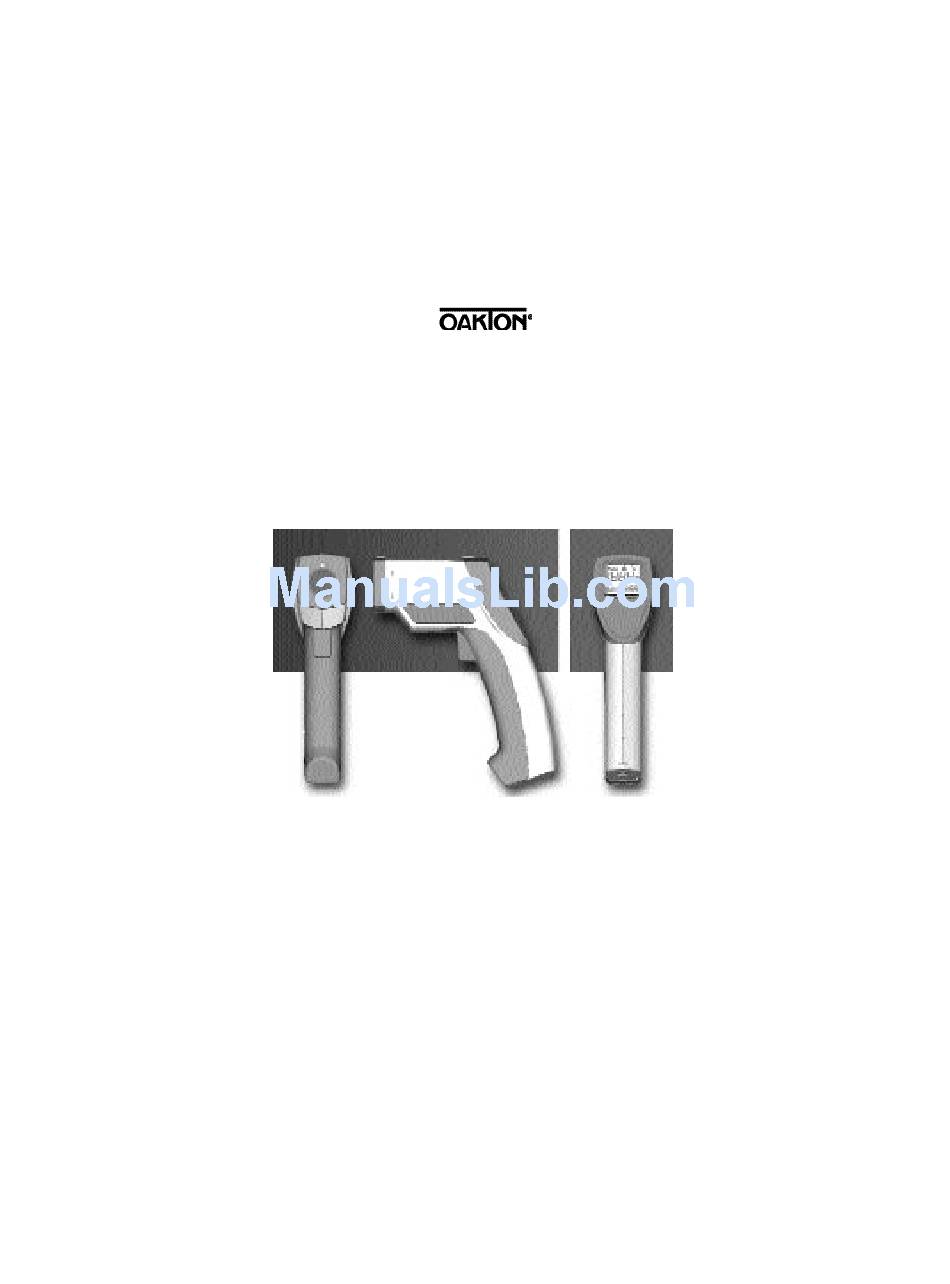

- Page 1 InfraPro ® 35629-00 Standard Model InfraPro ® 2 Enhanced Model 35629-10 Noncontact Thermometer 57511-1 Rev. A 4/00...
-
Page 2: Specifications
Specifications Temperature range 35629-00 -32 to 400°C (-25 to 750°F) 35629-10 -32 to 545°C (-25 to 950°F) D : S 12 : 1 (35629-10 has 90% encircled energy at the focal point) Display Resolution 0.2°C (0.5°F) Accuracy For targets: (assumes ambient Above 23°C (73°F): ±1% of reading or ±1°C (±... - Page 3 • Laser • Display • Laser • Anzeige • Laser • Affichage • Láser • Pantalla • Laser • Display • • • • • °C/°F Switch • Trigger • °C/°F-Schalter • Meßtaste • Commutateur °C/°F • Gâchette • Interruptor de °C/°F •...
- Page 4 English Warning Do not point laser directly at eye or indirectly off reflective surfaces. Cautions All models should be protected from the following: EMF (electro-magnetic fields) from arc welders, induction heaters Static electricity Thermal shock (caused by large or abrupt ambi- ent temperature changes—allow 30 minutes for unit to stabilize before use) Do not leave the unit on or near objects of high...
- Page 5 English Features Your thermometer includes: • Single-point laser sighting (Standard Model) • Circular laser sighting (Enhanced Model) • MAX temperature display • Backlit graphic display • Tripod mount • Durable, ergonomic construction Options/Accessories • Nylon Holster • N.I.S.T./DKD Certification Display A) Low battery indicator (comes on when battery is low) B) °C/°F symbol...
-
Page 6: How It Works
English Introduction We are confident you will find many uses for your handheld noncontact thermometer. Compact, rugged, and easy to use—just aim, pull the trigger, and read the tempera- ture in less than a second. You can safely measure surface temperatures of hot, haz- ardous, or hard-to-reach objects without contact. -
Page 7: How To Operate The Unit
English How to Operate the Unit Measurement: Quick Start To measure a temperature, point the unit at an object, and pull the trigger. Be sure to consider distance-to-spot size ratio and field of view. When using the laser, use it only for aiming. -
Page 8: Field Of View
English How to Accurately Measure Temperature Locating a Hot or Cold Spot To find a hot or cold spot, aim the ther- mometer outside the area of interest. Then scan across the area with an up and down motion until you locate the hot or cold spot. Field of View Make sure that the target is larger than the unit’s spot size. -
Page 9: Distance & Spot Size
English Distance & Spot Size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size is 12:1 at the focus point (0.914 meter/36 inches). The spot sizes indicate 90% encircled energy. -
Page 10: Maintenance
English Maintenance Lens Cleaning: Blow off loose particles using clean compressed air. Gently brush remaining debris away with a camel's hair brush. Carefully wipe the surface with a moist cotton swab. The swab may be moistened with water. NOTE: DO NOT use solvents to clean the plastic lens. - Page 11 Some Noncontact Thermometer Uses Electrical/Industrial • Industrieanwendungen • Électricité-Méchanique •Uso electromecánico Industrial • Manutenção Elétrica e Industrial • • Automotive & Diesel • KFZ-Instandesetzung und Wartung • Vehicules (essence et diesel) • Automotriz y Diesel • Automotive e Diesel • •...
-
Page 12: Oakton Instruments
Oakton Instruments...
