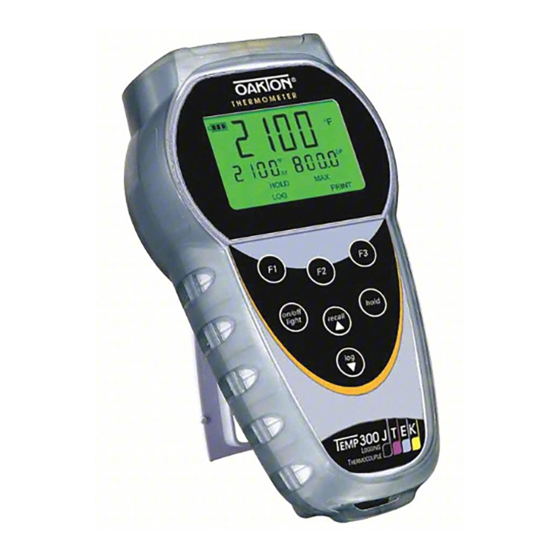

- Page 1 Instruction Manual Temp-100 and Temp-300 Dual-Input Thermocouple Datalogging Thermometer 68X518203 Rev 0 07/09...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION ........1 2. SAFETY PRECAUTIONS......2 3. SPECIFICATIONS ........3 4. BATTERY INSTALLATION AND REPLACEMENT........6 5. INSERTING AND REMOVING OPTIONAL RUBBER ARMOUR........7 6. ASSEMBLING OPTIONAL HANDSFREE ACCESORIES ........... 8 7. CONNECTING A THERMOCOUPLE..9 8. -
Page 4: Introduction
INTRODUCTION This versatile hand-held instrument provides highly accurate temperature measurements. The instrument is designed for easy operation and includes the following features: • Menu driven setup and operation • Datalogging for up to 1000 points on Temp 100, 2000 on Temp 300 •... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS WARNING: This instrument is designed to accept low level signals supplied by standard Thermocouples. Under NO circumstances should the input voltage exceed the specified 50V RMS. To prevent ignition of a hazardous atmosphere, batteries must only be changed in an area known to be non-hazardous. -
Page 6: Specifications
SPECIFICATIONS Thermocouple Thermometers Type Temperature range –210°C to 1200°C Type J (–346°F to 2192°F) –250°C to 1372°C Type K (–418°F to 2501°F) –250°C to 400°C Type T (–418°F to 752°F) -250°C to 1000°C Type E (-418°F to1832°) 0°C to 1768°C Type R (300 only) (32°F to 3214°F) 0°C to 1768°C... -
Page 7: Data Logging
Accuracy J,K,T,E & N Below -150 °C (-238 °F): ±0.25% of reading ±1 °C (±0.25% ±0.7 °F) Above -150 °C (-238 °F): ±0.1% of reading ±0.4 °C (±1% ±0.7 °F) R,S & B ±0.1% of reading ±1 °C (±0.1% ±2 °F) Display Backlit Dot-matrix 50mm X 37.2mm Data Logging... - Page 8 Storage –40°C to 65°C (–40°F to 149°F) Humidity 10% to 90% (non-condensing) Battery Life Size: Three AA, 1.5V; Alkaline Life: 400 hours continuous, typical, (without backlighting) Dimensions Without Armor: 175mm (L) X 97mm (W) X 42mm (H) With Armor: 180mm (L) X 102mm (W) X 52mm (H) Weight with batteries Without Armor: 267g With Armor: 362g...
-
Page 9: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT total battery life without backlighting and alarm is about 400 hours. The battery bar annunciator represents the battery strength. An empty battery annunciator indicates low battery strength; a blinking battery annunciator indicates that the batteries should be replaced immediately. Selected settings are stored in memory and will remain in memory even after power is turned off, or while batteries... -
Page 10: Inserting And Removing Optional Rubber Armour
INSERTING AND REMOVING OPTIONAL RUBBER ARMOUR insert thermometer into optional rubber armor, slide in from the top of meter before pushing the bottom edges of meter down to set it into position. Lift up the stand at the back meter bench applications if necessary. -
Page 11: Assembling Optional Handsfree Accesories
ASSEMBLING OPTIONAL HANDSFREE ACCESORIES You can use the optional magnets and strap in the Handsfree Kit accessories for hands free operations. - 8 -... -
Page 12: Connecting A Thermocouple
CONNECTING A THERMOCOUPLE Use the correct thermocouple type for your instrument setting. Using an incorrect thermocouple type will result in erroneous readings. Thermocouples are colour coded by type using the North American ANSI Colour Code as follows: TYPE COLOR Black Yellow Blue Purple... - Page 13 Thermocouple wiring polarity must be correct. If readings decrease as the temperature increases, the thermocouple wires may be reversed. The red wire is negative thermocouple wires manufactured in North America. If no probe is connected the display will read “open”. Thermocouples are sensitive at the tip or measuring junction.
-
Page 14: Key Functions
KEY FUNCTIONS Step through Min, Max and Avg readings. Choose probe T1, T2 or T1-T2 Toggle between menu and measure mode hold Freeze display Turns meter on and off (press and hold for 3 seconds to turn on/off off) light Press momentarily to turn on backlight Recalls and steps through... -
Page 15: Display Overview
DISPLAY OVERVIEW The dot matrix display features a large primary display, smaller secondary displays for channel info or min/max/ave, helpful annuciators added measurement data HOLD - Active Data Logging is Active Alarm Enabled – channel in alarm indicated: T1 or T2 or T1&T2 MAX/MIN/AVG of Secondary channel if MIN/MAX/AVG activated MAX/MIN/AVG of Primary channel... -
Page 16: Measurement Mode
10. MEASUREMENT MODE On initial start-up the meter will display the measured value for input one in the primary display and for input two in the secondary display. Pressing the F2 key will toggle primary display through input one (T1), input two, and the delta (T1 –... -
Page 17: Hold Functon
11. HOLD FUNCTON Press the hold key to retain the reading on the display. Press the hold key again for normal operation. 12. MIN, MAX, and AVE FUNCTION Press the F1 key to toggle between the minimum, maximum, average readings. The minimum and maximum reading function is ideal for monitoring unattended operations while continually displaying every temperature change that... -
Page 18: Setup Mode
14. SETUP MODE To access the setup mode from measurement mode press the F3 key (Menu). Press ▲▼ keys on the meter key pad to scroll through options. To enter a setup screen press Select F1 key. To return to measurement mode press Meas F3 key. -
Page 19: General Setup Screen
15. GENERAL SETUP SCREEN The first page of the General Setup screens let you set probe type, measurement units, time, and date. Press F1 to indicate you want to change the setting of the current parameter or recall▲ or log▼ to move to the next parameter. - Page 20 On the second page you can set auto-off time, line frequency, and password. This screen below is used to reset/change password. In the event if uses forget his/her password, 5586 can be used to reset to a new value - 17 -...
-
Page 21: Calibration Screen
16. CALIBRATION SCREEN The thermometer is factory calibrated and does not require calibration before use. The Calibration function allows single point calibration of the thermometer, at 0°C (32°F) to compensate for thermocouple off-set error. It is NOT necessary to perform a field calibration to obtain specified meter accuracy. - Page 22 Select calibration method by pressing F1 and the ▲ or ▼ keys. Then select the channel you with to calibrate the ▲ or ▼ keys . Offset Calibration Use the ▲ or ▼ keys to adjust the value to match known temperature standard. Press F1 to accept.
- Page 23 Slope Calibration Use the ▲ or ▼ keys to adjust the value to match known temperature standard. . Press F1 to accept. Then move to second temperature point using the ▲ or ▼ keys and repeat. Match Calibration Use the ▲ or ▼ keys to adjust the value to match T1 readings and T2 readings.
-
Page 24: Alarms Screen
17. ALARMS SCREEN Disable or enable the alarm for individual probe by pressing recall▲ or log▼and F1 to accept. Increase or decrease individual limit by pressing recall▲ or log▼. - 21 -... -
Page 25: Data Logging Screen
18. DATA LOGGING SCREEN Press recall▲ or log▼to choose the logging methods as auto or manual. If it is auto logging, using recall▲ or log▼to set time interval. Its range is from 0min to 60min. Button “Page1” will appear only in Temp 300. -
Page 26: Calibration Report Screen
Once the USB connection is establish with PC, press the Start button to download data from Meter to PC using HyperTerminal. 19. CALIBRATION REPORT SCREEN The Calibration report will show the time and date along with results of the last user calibration. -
Page 27: Clear / Reset Screen
20. CLEAR / RESET SCREEN Press F1 to choose which data you want to clear or reset. For calibration, logged data and reset all, you will have to enter the password to proceed. (Default Password is 9900) - 24 -... -
Page 28: Maintenance
21. MAINTENANCE Properly used, the thermometer should maintain calibration indefinitely and not require service other than occasional cleaning of the housing and changing of the batteries. 22. CLEANING WARNING: TO PREVENT IGNITION OF A HAZARDOUS ATMOSPHERE BY ELECTROSTATIC DISCHARGE, CLEAN WITH DAMP CLOTH. Do not clean with abrasives or solvents. -
Page 29: Trouble Shooting
24. TROUBLE SHOOTING The following chart lists the most probable faults. There are no internal adjustments or user-replaceable parts. FAULT ACTION Check condition of batteries. Check that batteries are inserted Display properly. Display shows Out of range indication - - - - Display No thermocouple connected in the Shows... -
Page 30: Accessories
25. ACCESSORIES Replacement Meters and Meter Accessories Item Oakton Thermo Scientific Type 100 thermometer 91427-40 TSTEMP100 TSTEMP300 Type 300 thermometer 91427-50 Rubber Armour with Stand 35427-80 ARMORTEMP Handsfree Kit (Two Magnets 35427-85 HNDSFRKIT and a Strap) General purpose probe 08517-55... -
Page 31: Warranty
26. WARRANTY The Manufacturer warrants this product to be free from significant deviations from published specifications for a period of three years. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer. -
Page 32: Innocal® Calibration And Repair Services
28. INNOCAL® CALIBRATION AND REPAIR SERVICES Optimum performance of your temperature-measuring instrument is not a timeless condition. To ensure quality measurements, have your instrument calibrated regularly. Trust InnoCal® to satisfy your calibration and equipment repair needs. With over a decade of service, we've helped thousands of customers meet ISO, FDA, EPA, GLPs/cGMPs and other quality... - Page 33 Reliable Support Trust in our free diagnostic support and troubleshooting advice. Our factory- trained metrologists and technicians are armed with years of experience and extensive technical data. Convenient Reminders It’s so easy to keep your instruments functioning properly. Based on your requirements, InnoCal will send you a reminder when it’s time to re-certify or service your instrument.
- Page 34 With today's high quality standards such as ISO 9000, certification is becoming increasingly important. Traceability is not a timeless condition. It must be verified and maintained over the life of the calibration to ensure the highest accuracy possible. When you have your calibration done by InnoCal, we will send you an automatic reminder when it is time to recalibrate your instrument.
- Page 36 TECHNICAL ASSISTANCE If you have any questions about the use of this product, contact the Manufacturer or authorized seller. For more information on OAKTON Instruments Products, please contact your nearest distributor or visit our web site listed below: OAKTON Instruments P.O.
