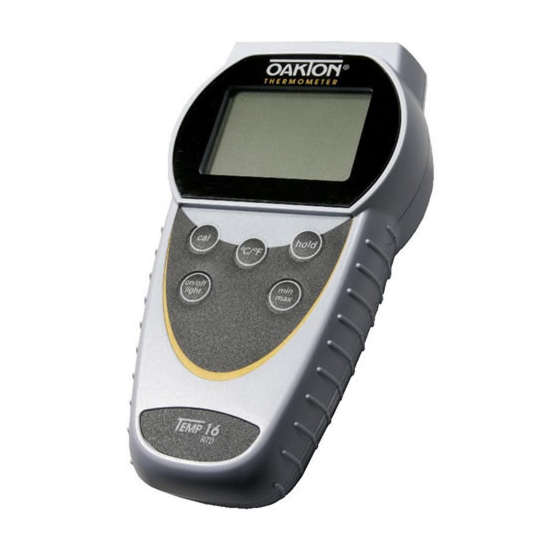

  • Page 1 Instruction Manual Temp-16 Precision RTD Thermometer 68X481904 Rev 0 09/09 Part of Thermo Fisher Scientific...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Quick Start Guide..........1 Introduction ..........2 Safety Precautions........3 Specifications........... 4 Battery Installation And Replacement ..6 Inserting And Removing Optional Rubber Armour ........7 Assembling Optional Handsfree Accesories ..........8 Connecting An Rtd Probe......9 Key Functions..........
  • Page 5: Quick Start Guide

    QUICK START GUIDE To ensure best results please read the complete manual. Connect probe. Press the on/off key. Press again to turn on backlight. Select °C or °F display using °C/°F key. Insert probe in sample. Allow adequate time for reading to stabilize.
  • Page 6: Introduction

    INTRODUCTION Thank you for choosing the Temp-16 Precision Thermometer.This versatile hand-held instrument provides highly accurate temperature measurements and is designed for easy operation which includes the following features: • Operator selection Celsius Fahrenheit scale • Resolution of 0.1° (auto ranging) •...
  • Page 7: Safety Precautions

    SAFETY PRECAUTIONS Voltages present at the RTD may also be present at the battery terminals. Always disconnect when changing batteries. W W ARNING This instrument is designed to accept low level signals supplied by standard 100 Ω RTDs. Under no circumstances should the input voltage exceed the specified 10 v rms.
  • Page 8: Specifications

    SPECIFICATIONS Platinum RTD Probes 100 ohm platinum: alpha = 0.003850 –200 °C to 850 °C (–392 °F to 1562 °F) Out of range display: “Ur”, “Or”, “OPEN” Range Accuracy –200.0 to –100.0 °C ±2.0 °C (±4.0 °F) (–392 to –148 °F) –99.9 to 199.9 °C ±0.2 °C (±0.4 °F)
  • Page 9 Weight Without armour 267 g 362 g With armour Meets IEC-529 IP-54 for dust Ingress Protection and water-resistant (With Probe enclosures. Attached) EN61326-1/A1: CE Compliance 1998 (EU EMC Directive)
  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION AND REPLACEMENT Voltages present at the RTD may also be present at the battery terminals. Always disconnect when changing batteries. Weak batteries should not be left in the instrument. Dead batteries can leak and cause damage to unit. The typical battery life is about 700 hours.
  • Page 11: Inserting And Removing Optional Rubber Armour

    INSERTING AND REMOVING OPTIONAL RUBBER ARMOUR Figure 1: Removing Optional Rubber Armour To insert thermometer into the optional rubber armor, slide in from the top of meter before pushing the bottom edges of meter down to set it into position. Lift up the stand at the back of meter for bench top applications if necessary.
  • Page 12: Assembling Optional Handsfree Accesories

    ASSEMBLING OPTIONAL HANDSFREE ACCESORIES You can use the optional magnets and strap in the Hands Free Kit accessories for hands- free operations. Figure 2: Hands Free Kit...
  • Page 13: Connecting An Rtd Probe

    CONNECTING AN RTD PROBE Use the correct 100 Ω RTD (alpha = 0.003850) for your instrument. Using an incorrect probe type will result in erroneous readings. Insert the 3-pin plug into the mating connector instrument. RTD Input Figure 3: Top view of RTD Thermometer...
  • Page 14: Key Functions

    KEY FUNCTIONS Figure 4: Keypad Toggles between Celsius or Fahrenheit in measurement mode °C/°F and user calibration mode. Press and hold this key for 3 seconds to enter Calibration mode if field calibration is unprotected. Activates/ Deactivates freezing of the measured reading while in hold measurement mode.
  • Page 15: Display Overview

    DISPLAY OVERVIEW Figure 5: Meter Display °C/°F Celsius or Fahrenheit indicator. Minimum reading annunciator. Maximum reading annunciator. 3 Bar : 700 – 550 hours 2 Bar : 350 – 550 hours 1 Bar : 150 – 350 hours Blinking: < 150 hours Blinks during calibration mode.
  • Page 16: Measurement Mode

    10. MEASUREMENT MODE Press the on/off key. The thermometer performs a self-test and all display digits and indicators should remain approximately two seconds before the meter enters measurement mode. If a probe is not connected or if the probe is defective, the display will indicate “OPEN”.
  • Page 17: Selecting Temperature Scale

    11. SELECTING TEMPERATURE SCALE °c 24.6 °C/°F °F 75.4 Figure 8: Press °C/°F key to toggle between °C and °F Select °C or °F by pressing the °C/°F key. Each time the pressed, temperature scale will switch. Switching between °C and °F can be done at any time during operation.
  • Page 18: Min And Max Function

    12. MIN AND MAX FUNCTION Press the min/max key to toggle between the minimum and maximum readings. The minimum and maximum reading function is ideal for monitoring unattended operations while continually displaying every temperature change that occurs. minimum and maximum values are sensed and automatically stored.
  • Page 19: Calibration

    0°C (32°F) to compensate for probe offset error. Use the field calibration feature to improve thermometer/probe accuracy. The Temp-16 Precision RTD Thermometer comes with a calibration lock function to prevent accidental changes to calibration settings. A field calibration can only be performed when the function has been unlocked.
  • Page 20: Clear Field Calibration

    15. CLEAR FIELD CALIBRATION To clear user calibration: 1. Turn the thermometer off. 2. Hold the cal key down while pressing the on/off key. 3. The measurement mode window appears without the CAL indicator to indicate that the user calibration has been successfully cleared.
  • Page 21: Field Calibration Lockout

    4. When the cal and hold keys are released, the unit will go to measurement mode (Figure 11). STABLE °c Figure 11: Unit goes to measurement mode 17. FIELD CALIBRATION LOCKOUT The calibration lockout feature prevents any field calibration changes. lockout remains in effect until an unlock has been performed.
  • Page 22: Maintenance

    4. When the cal and °C/°F keys are released, the unit will return to measurement mode (Figure 13). STABLE °c Figure 13: Unit returns to measurement mode 18. MAINTENANCE Properly used, the thermometer should maintain calibration indefinitely and not require service other than...
  • Page 23: Troubleshooting

    20. TROUBLESHOOTING Problem Cause Solution Power on Batteries not in Insert batteries. but no place or wrong or re-insert display polarity. batteries in correct polarity. “OPEN” Probe not Make sure probe display connected is firmly on LCD connected. “Ur” or Measurement Ensure “Or”...
  • Page 24: Service

    21. SERVICE There are no internal adjustments or user replaceable parts. Note: Serial number label is located behind the meter. 22. REPLACEMENT METER & ACCESSORIES Thermo Item Scientific Rubber Armour with Stand 35427-80 Hands Free Kit (Two 35427-85 Magnets and a Strap) General-purpose probe, 10 in long x 0.188 in dia.
  • Page 25: Warranty

    23. WARRANTY The Manufacturer warrants this product to be free from significant deviations from published specifications for a period of three years. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer.
  • Page 26: InnocalĀ® Calibration And Repair Services (North America)

    25. INNOCAL® CALIBRATION AND REPAIR SERVICES (NORTH AMERICA) Optimum performance of your temperature- measuring instrument is not a timeless condition. To ensure quality measurements, have your instrument calibrated regularly. Trust InnoCal® to satisfy your calibration and equipment repair needs. With over a decade of service, we've helped thousands of customers meet...
  • Page 27 years of experience and extensive technical data. Convenient Reminders It’s so easy to keep your instruments functioning properly. Based your requirements, InnoCal will send you a reminder when it’s time to re-certify or service your instrument. We provide you with the documentation you need to meet your most stringent quality requirements for the control of inspection, measuring, and test equipment.
  • Page 28 Are your calibration certificates good enough? InnoCal surpasses competition providing the most complete certificates as required by NIST. All of our certificates include measured data and point-by-point measurement uncertainty, and by request, we’ll provide test accuracy test uncertainty ratios at no extra cost. Call us today and see why InnoCal is The Choice of Quality.
  • Page 29: Technical Assistance

    26. TECHNICAL ASSISTANCE If you have any questions about the use of this product, contact the Manufacturer or authorized seller. For more information on OAKTON Instruments Products, please contact your nearest distributor or visit our web site listed below: OAKTON Instruments P.O.
