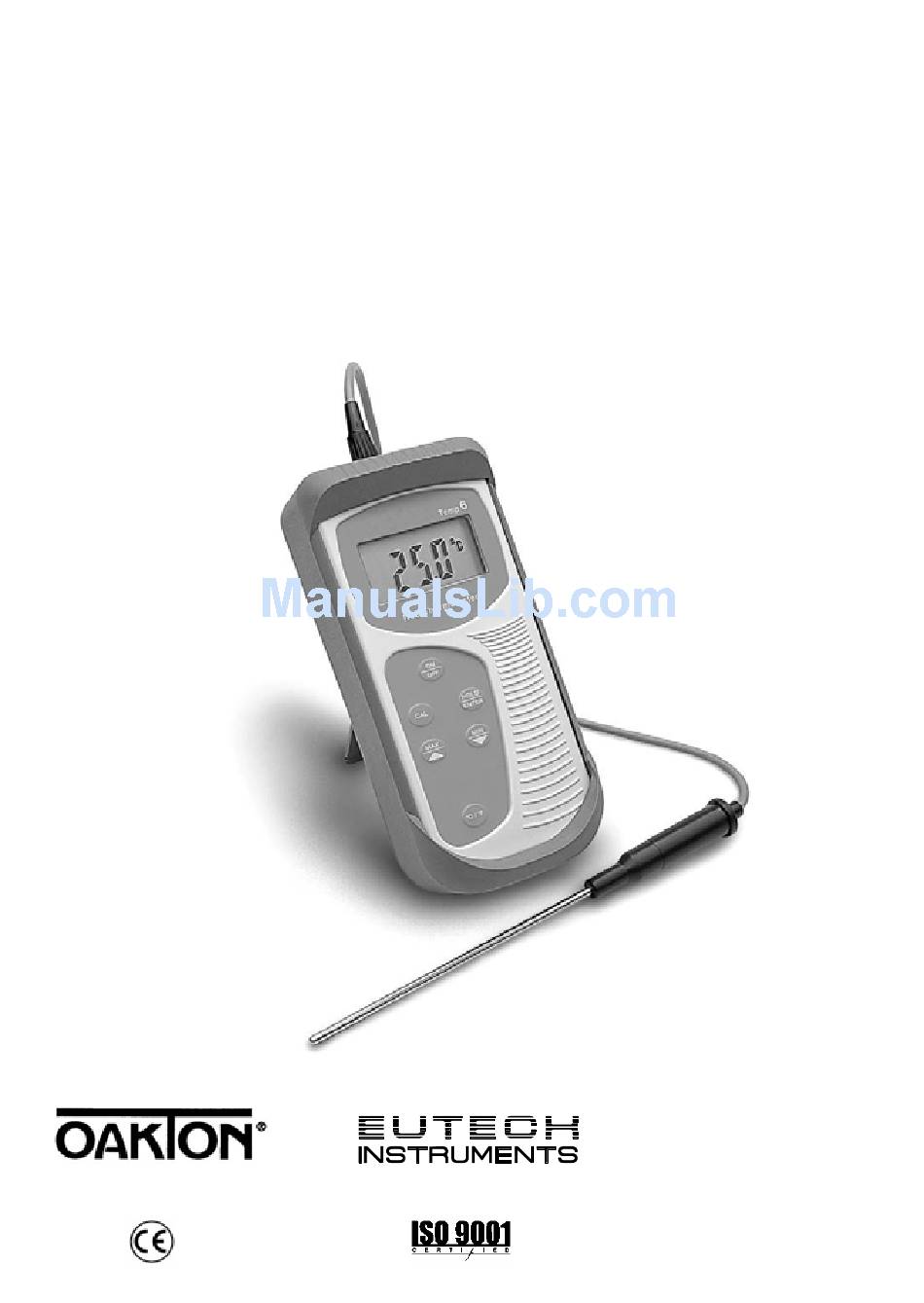

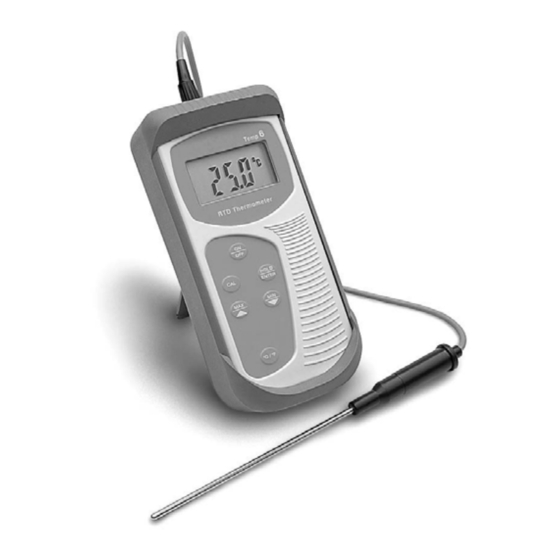

- Page 1 Instruction Manual Temp 4/5/6 Temperature Meter Series 68X243607 Technology Made Easy ... Rev. 2 01/03 - 1 -...
- Page 2 Preface This instruction manual serves to explain the use of the Temp 4/5/6 temperature meter. It functions in two ways: first as a step by step guide to help you operate the meter; second, it serves as a handy reference guide.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION 1.1 Introducing the economy series 2. GETTING STARTED 2.1 Description of Keypad Functions 2.2 Description of LCD Annunciators 2.3 Inserting & Removing the Rubber Boot 2.4 Inserting New Batteries 2.5 Battery Replacement 2.6 Connecting the Temperature Sensor 2.7 Switching the Meter On 3. -
Page 4: Introduction
1. INTRODUCTION 1.1 Introducing the economy series Thank you for purchasing the Temp 4/5/6 meter. These microprocessor-based handheld meters are economical and easy to use. They are available in three models: The Temp 4 uses *YSI 400 series thermistor temperature sensor... -
Page 5: Getting Started
F: Switches between C and F in measurement mode. 2.2 Description of LCD Annunciators The Temp 4/5/6 meters have a large custom LCD that consists of 4-digit segments and operation annunciators for C and F. Other indicators include “MIN’, “MAX”, “HO” (when the HOLD function is activated) and “LO” (low battery condition). -
Page 6: Inserting & Removing The Rubber Boot
Instruction Manual Temp 4/5/6 2.3 Inserting & Removing the Rubber Boot 1. To remove meter from rubber boot, push out from the bottom edges of meter until it is completely out of boot. Ensure that the connector of temperature sensor is not connected. -
Page 7: Inserting New Batteries
Instruction Manual Temp 4/5/6 2.4 Inserting New Batteries The battery compartment is found at the back of instrument. To open the battery compartment, push in the direction of arrow and lift up the cover. Note the polarity of battery before inserting into position. After replacement, place cover... -
Page 8: Battery Replacement
Instruction Manual Temp 4/5/6 2.5 Battery Replacement A “LO” annunciator in the LCD alerts you when battery power is running low. Replace with the same type as recommended by the manufacturer. °C Caution: Power off the meter when changing battery. -
Page 9: Switching The Meter On
Instruction Manual Temp 4/5/6 2.7 Switching the Meter On 1. Press ON/OFF key to power up your meter. All the LCD segments display momentarily as the meter performs a self-diagnostic test, per shown in section 2.2. The LCD then switches into measurement mode. -
Page 10: Calibration
The temperature sensor included (only for Temp 5) with your meter is factory calibrated. Over time, the temperature calibration may drift and the probe requires recalibration. The Temp 4/5/6 meters allow you to have a 1-point calibration as fine adjustment by changing its offset value. This is useful if you replace the probe and should recalibrate the probe to the meter. -
Page 11: Temperature Curve Selection (Temp 5 Meter Only)
Instruction Manual Temp 4/5/6 3.1.2 Temperature Curve Selection (Temp 5 Meter Only) In the event temperature probe has drifted too far from its original characteristic – due to age and use or if the probe is being replaced, it may be a good idea to match probe to the best curve. -
Page 12: Measurement
Instruction Manual Temp 4/5/6 4. MEASUREMENT 4.1 Taking Measurements 1. Power on the meter. The meter automatically enters Temperature mode. C or F annunciator displays in your LCD to indicate which mode you are taking measurements in. 2. Press the F key to toggle between each measurement mode. -
Page 13: Releasing A Held Reading
Instruction Manual Temp 4/5/6 4.4 Releasing a Held Reading Press HOLD key again to deactivate HOLD function or to release your frozen reading. The meter returns to measurement mode, and the “HO” annunciator disappears from the LCD. 4.5 Maximum and Minimum Hold Mode With the Maximum and Minimum Hold Mode, the EcoScan Temp meter can be used as a maximum registering (or minimum registering) thermometer. -
Page 14: Probe Care And Maintenance
Instruction Manual Temp 4/5/6 5. PROBE CARE AND MAINTENANCE For best results, always clean the temperature probe with clean tissue paper after measurement to keep the probe in good working condition. Wash the probe thoroughly with tap water if necessary to wash off any residue. Should there be any thin oil film sticking on the probe, wash with mild detergent or soap and warm water. -
Page 15: Specifications Of Temp Series
Instruction Manual Temp 4/5/6 7. SPECIFICATIONS OF TEMP SERIES Model Temp 4 and 5 Temp 6 (Thermistor) (RTD) Temperature Range -40.0 to 125.0 -200.0 to 850.0 -40.0 to 257 -328.0 to 1562 Resolution C/0.1 C/0.1 F (-99.9 to 199.9 -99.9 to 391.9 F (range <... -
Page 16: Accessories
Instruction Manual Temp 4/5/6 8. ACCESSORIES Item Description Eutech Instruments Oakton Instruments Order Code Ordering Code Temp 4 Meter EC-TEMP4/00 35626-00 General Purpose Probe 93824-00 Temp 5 Meter with probe EC-TEMP5/01 35626-10 100K Thermistor Temperature EC-TEM5TEM01P 35626-50 probe Temp 6 Meter (with probe) -
Page 17: Warranty & Return Of Items
Instruction Manual Temp 4/5/6 9. WARRANTY & RETURN OF ITEMS This meter is supplied with a warranty against significant deviations in material and workmanship for a period of THREE years from date of purchase whereas probe with a SIX-month warranty. -
Page 18: Return Of Items
Instruments will not be responsible for damage resulting from careless or insufficient packing. A restocking charge will be made on all unauthorized returns. NOTE: Eutech Instruments Pte Ltd/ Oakton Instruments reserves the right to make improvements in design, construction, and appearance of products without notice. - Page 19 NOTES...
