- Page 1 Instruction Manual Temp-14 Single Input Thermistor Thermometer 68X481902 Rev 0 10/08 Part of Thermo Fisher Scientific...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Quick Start Guide........1 Introduction ..........2 Safety Precautions ........3 Specifications........... 4 Battery Installation And Replacement ..5 Inserting And Removing Optional Rubber Armour ............. 6 Assembling Optional Handsfree Accesories..........7 Connecting A Thermistor......8 Key Functions .......... 9 10. -
Page 4: Quick Start Guide
QUICK START GUIDE To ensure best results please read the complete manual. Connect probe. Press the on/off key. Press again to turn on backlight. Select °C or °F display using °C/°F key. Insert probe in sample. Allow adequate time for reading to stabilize. -
Page 5: Introduction

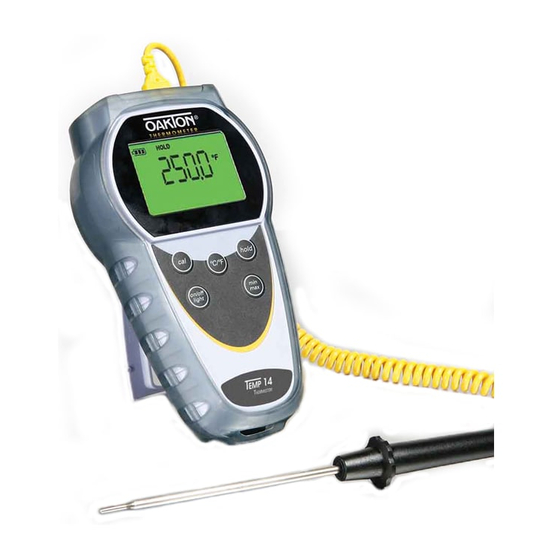

INTRODUCTION Thank you for choosing the Temp-14 Thermistor Thermometer. This sturdy handheld thermometer provides highly accurate temperature measurements using thermistor probes. The Instrument is easy to use and includes the following features: • Operator selection of Celsius or Fahrenheit scale •... -
Page 6: Safety Precautions
SAFETY PRECAUTIONS Voltages present at the thermistors may also be present at the battery terminals. Always disconnect the thermistor when changing batteries. W W ARNING This instrument is designed to accept low level signals supplied by standard 400 series thermistors. Under circumstances should the input voltage exceed the specified 10 v rms. -
Page 7: Specifications
SPECIFICATIONS Range –40 to 150 °C (–40.0 to 302.0 °F) Resolution 0.1 °C (0.1 °F) ±0.2 °C (±0.4 °F) in range -40 °C to 125 °C (-40 °F to 257) Accuracy ±0.5 °C (±0.9 °F) in range 125°C to 150 °C (257to 302 °F) 4+4 digit, 58 X 40mm dual-line Lcd Display display with backlight... -
Page 8: Battery Installation And Replacement
BATTERY INSTALLATION AND REPLACEMENT Voltages present at the thermistors may also be present at the battery terminals. Always disconnect the thermistor when changing batteries. Weak batteries should not be left in the instrument. Dead batteries can leak and cause damage to unit. The typical battery life is about 700 hours. -
Page 9: Inserting And Removing Optional Rubber Armour
INSERTING AND REMOVING OPTIONAL RUBBER ARMOUR To insert thermometer into the optional rubber armor, slide in from the top of meter before pushing the bottom edges of meter down to set it into position. Lift up the stand at the back of meter for bench top applications if necessary. -
Page 10: Assembling Optional Handsfree Accesories
ASSEMBLING OPTIONAL HANDSFREE ACCESORIES You can use the optional magnets and strap in the Hands Free Kit accessories for hands-free operations. Figure 1: Hands Free Kit - 7 -... -
Page 11: Connecting A Thermistor
CONNECTING A THERMISTOR Use the correct thermistor (series 400) for your instrument. Using an incorrect probe will result in erroneous readings. (Series 500 thermistor probes may be used along with the supplied correction chart to convert meter readings to actual readings to actual temperature). Insert the ¼... -
Page 12: Key Functions
KEY FUNCTIONS Figure 3: Keypad Toggle between Celsius or Fahrenheit. °C/°F Activates Calibration mode for 0°C offset calibration (after field calibration enabled). Press and hold this key for 3 seconds to enter Calibration mode if field calibration is unprotected. Activates/ Deactivates freezing of the hold measured reading while in measurement mode. -
Page 13: Display Overview
Display Overview Figure 4: Meter Display °C/°F Celsius or Fahrenheit indicator. Minimum reading annunciator. Maximum reading annunciator. 3 Bar : 700 – 550 hours 2 Bar : 350 – 550 hours 1 Bar : 150 – 350 hours Blinking: < 150 hours Blinks during calibration mode. -
Page 14: Measurement Mode
11. MEASUREMENT MODE Press on/off key. thermometer performs a self-test and all display digits and indicators should remain on for approximately seconds before meter enters measurement mode. If a probe is not connected or if the probe is defective, the display will indicate “OPEN”. °c Figure 5: Display when no probe is detected For optimum instrument accuracy, allow one... -
Page 15: Selecting Temperature Scale
12. SELECTING TEMPERATURE SCALE °c 24.6 °C/°F °F 75.4 Figure 7: Press °C/°F key to toggle between °C and °F Select °C or °F by pressing the °C/°F key. Each time the key is pressed, the temperature scale will switch. Switching between °C and °F can be done at any time during operation. -
Page 16: Auto Off Function
The CAL function allows single point calibration thermometer 0°C (32°F) compensate for probe offset error. Use the field calibration feature improve thermometer/probe accuracy. Temp-14 Thermistor comes with calibration lock function to prevent accidental changes calibration settings. field calibration can only be performed when the function has been unlocked. -
Page 17: Clear Field Calibration
with distilled water. Allow temperature to stabilize. 2. Press and release the cal key for 3 seconds to enter the calibration mode. The CAL indicator starts blinking. Release the cal key. 3. If the measured temperature is from –5°C to 5°C (23 to 41°F) when the temperature reading is stable, press the cal key. -
Page 18: Field Calibration Unlock
17. FIELD CALIBRATION UNLOCK The calibration unlock feature enables field calibration operation. To unlock field calibration: 1. Turn the thermometer off. 2. Hold the cal key and hold key down simultaneously, then press the on/off key. 3. The “CAL” indicator appears momentarily with the version-model window to indicate that the user-calibration function has been unlocked successfully (Figure 9). -
Page 19: Field Calibration Lockout
18. FIELD CALIBRATION LOCKOUT The calibration lockout feature prevents any field calibration changes. The lockout remains in effect until an unlock has been performed. To lock the field calibration operation: 1. Turn the thermometer off. 2. Hold the cal key and °C/°F key simultaneously, then press the on/off key. -
Page 20: Maintenance
19. MAINTENANCE Properly used, thermometer should maintain calibration indefinitely and not require service other than occasional cleaning of the housing and changing of the batteries. Do not clean with abrasives or solvents. Use mild detergents; never immerse nor use excessive fluid. -
Page 21: Trouble Shooting
22. TROUBLE SHOOTING The following chart lists the most probable faults. There are no internal adjustments or user-replaceable parts. Problem Solution Check condition of batteries. Check that batteries are inserted No Display properly. Display Measurement under range (-40°C/ - shows 40°F) “Ur“... -
Page 22: Accessories
23. ACCESSORIES Replacement Meter and Meter Accessories Item Oakton Rubber Armour with Stand 35427-80 Hands Free Kit (Two 35427-85 Magnets and a Strap) General Purpose 400 Series Probe, SS 316, 5 ft cable, 93824-00 10” (L) x 0.188” (Dia), 4 second time constant. -
Page 23: Warranty
24. WARRANTY The Manufacturer warrants this product to be free from significant deviations from published specifications for a period of three years. If repair or adjustment is necessary within the warranty period, the problem will be corrected at no charge if it is not due to misuse or abuse on your part as determined by the Manufacturer. -
Page 24: Innocal® Calibration And Repair Services (North America)
26. INNOCAL® CALIBRATION AND REPAIR SERVICES (NORTH AMERICA) Optimum performance of your temperature- measuring instrument is not a timeless condition. To ensure quality measurements, have your instrument calibrated regularly. Trust InnoCal® to satisfy your calibration and equipment repair needs. With over a decade of service, we've helped thousands of customers meet... - Page 25 Convenient Reminders It’s so easy to keep your instruments functioning properly. Based your requirements, InnoCal will send you a reminder when it’s time to re-certify or service your instrument. We provide you with the documentation you need to meet your most stringent quality requirements for the control of inspection, measuring, and test equipment.
- Page 26 Are your calibration certificates good enough? InnoCal surpasses competition providing the most complete certificates as required by NIST. All of our certificates include measured data and point-by-point measurement uncertainty, and by request, we’ll provide test accuracy test uncertainty ratios at no extra cost. Call us today and see why InnoCal is The Choice of Quality.
- Page 28 TECHNICAL ASSISTANCE If you have any questions about the use of this product, contact the Manufacturer or authorized seller. For more information on OAKTON Instruments Products, please contact your nearest distributor or visit our web site listed below: OAKTON Instruments P.O.
