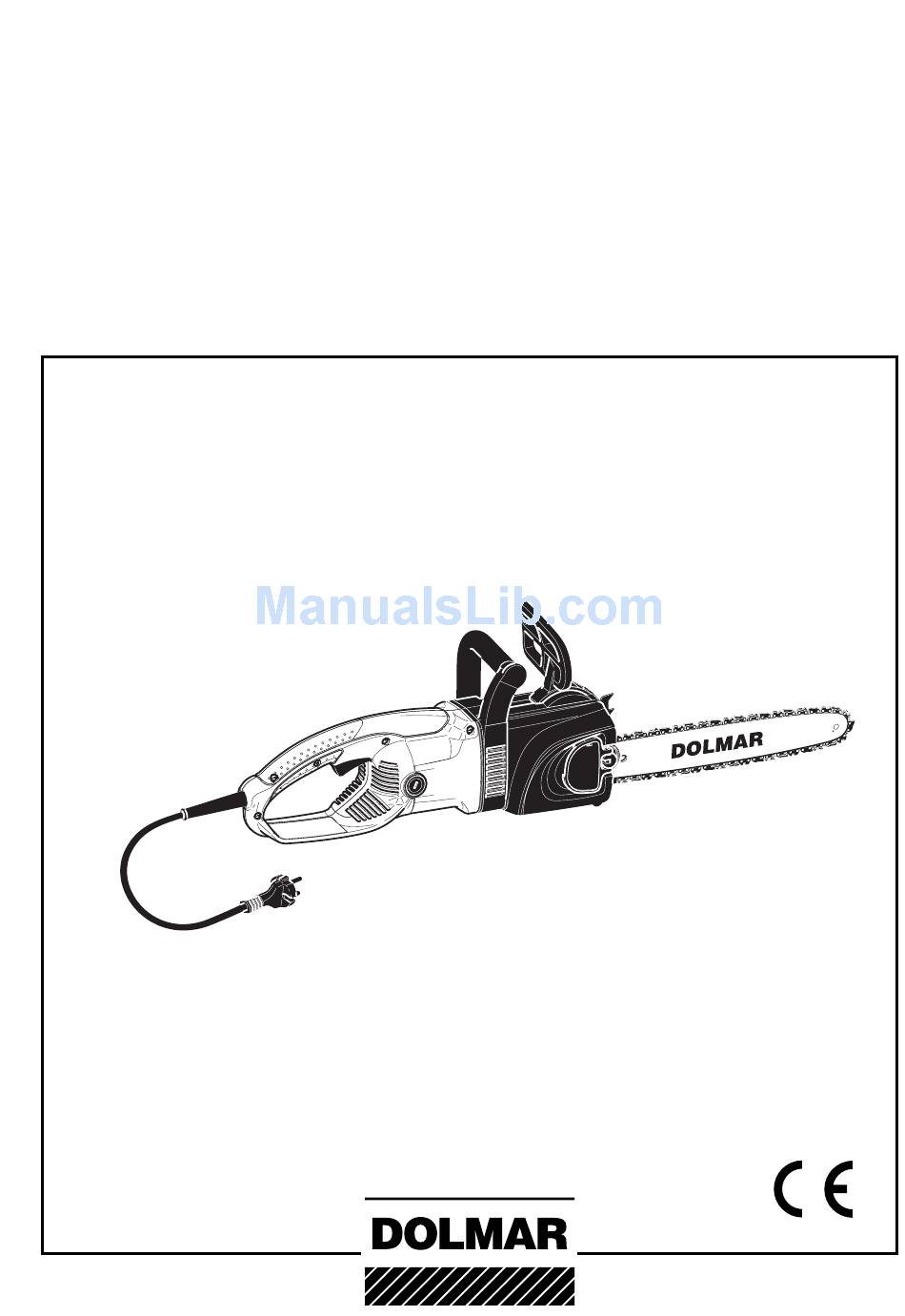

Page 1: Instruction Manual
Instruction Manual Important: Read this instruction manual carefully before putting the chain saw into operation and strictly observe the safety regulations! Keep this instruction manual! ES-2130 A ES-2135 A ES-2140 A ES-2145 A http://www.dolmar.com... -
Page 2: Table Of Contents
Thank you for your trust in our product Table of contents Page We congratulate you on your new DOLMAR electric chain saw. Symbols ................2 Delivery inventory .............. 3 We are convinced that you will be satisÞ ed with this modern Packing/Disposal .............. -
Page 3: Delivery Inventory
Packing/Disposal Intended use Electric saws The DOLMAR electric chain saw will be delivered in a protective This electric saw may be used only for sawing wood. It is in- cardboard box to prevent transport damages. tended for occasional use in thin wood, caring for fruit trees, Cardboard is a basic raw material and is therefore consequently felling, removing limbs, and trimming to length. -
Page 4: Safety Precautions General Precautions
SAFETY PRECAUTIONS General precautions To ensure correct operation the user has to read this instruc- tion manual to make himself familiar with the characteristics of the electric chain saw. Users insufÞ ciently informed will risk danger to themselves as well as others due to improper han- dling. -
Page 5: Working Behavior/Method Of Working
Pay attention to the diameter of the extension cable. When using a cable roll the cable should be completely wound off. Use only extension cords that meet the speciÞ cations in “Technical data”. If using the saw out of doors make sure that the extension cord is approved for such use. - Page 6 Guide the electric chain saw in such a way that no part of your body is within the elongated swiveling range of the saw (11). Use the electric chain saw for sawing wood only. Do not let the chain touch the ground when it is running. If you are cutting wood lying directly on the ground, turn it over before completing the cut so that you do not cut into the ground.
-
Page 7: Kickback
CAUTION: Do not fell or debranch trees unless you are specially trained for it! There is a high risk of injury! Make sure to 45° follow local regulations. Before cutting down a tree ensure that a) only those persons are within the working range which are actually involved in cutting down the tree 45°... -
Page 8: Transport And Storage
DOLMAR service. Use only original DOLMAR spare parts and accessories. Applying spare parts which are not original DOLMAR parts or accesories and bar/chain combinations or lengths results in a high risk of accidents. For accidents and damage result- ing from using sawing devices or accesories which have not been approved we cannot accept any responsibility. -
Page 9: Technical Data
Technical data ES-2130 A ES-2135 A ES-2140 A ES-2145 A Power consumption Watt 2000 Nominal voltage 230 - 240 ~ Mains frequency 50 - 60 Nominal current Fuse, electric circuit Cable length 30 / 500 Chain type Chain pitch inch 3/8"... -
Page 10: Putting Into Operation
PUTTING INTO OPERATION CAUTION: When working on the guide bar or saw chain always wear protective gloves and pull out the power supply plug. CAUTION: Switch on the electric chain saw only after hav- ing assembled it completely and inspected! Mounting the guide bar and saw chain Put the electric chain saw on a stable surface and carry out the following operations for mounting the bar and chain:... -
Page 11: Tightening The Saw Chain
Using your left hand, lightly press the guide bar against the holder on the housing and guide the saw chain (9) around the nose sprocket (10) on the guide bar. While doing this, pull the saw chain slightly in the direction shown by the arrow. Line up the hole in the sprocket guard with the threaded pin (11). -
Page 12: Checking The Chain Tension
SERVICE wear. Regular inspection and maintenance is important for your personal safety, and can be properly performed only by a DOLMAR service centre. Engaging the chain brake (braking) With your left hand, press the handguard (1) towards the tip of the guide bar (arrow 2). -
Page 13: Saw Chain Oil
5 liters order number 980 008 211 The saw chain oil sold by DOLMAR, called BIOTOP, is made 20 liters order number 980 008 213 of special vegetable oils and is biologically decomposeable to 100%. -
Page 14: Reþ Lling The Oil Tank
ReÞ lling the oil tank Only if the motor is switched off and the power supply plug is pulled out! Thoroughly clean the oil tank around the cap to prevent dirt from entering the tank. Unscrew the tank cap (1) and Þ ll in chain oil until it is on a level with the bottom edge of the Þ... -
Page 15: Switching On The Motor
"off" position. If it does not, do not under any circumstances connect the saw to a power source - do not plug it in. Take the saw to a DOLMAR service cen- tre before doing any work with it. -
Page 16: Checking The Chain Brake
Important: If the saw chain does not stop instantly when you carry out this test, do not under any circumstances use the saw! Take the chain saw to a DOLMAR service center. Testing the run-out brake Do not work with the saw without Þ rst testing the run-out... -
Page 17: Maintenance Sharpening The Saw Chain
MAINTENANCE Sharpening the saw chain When working on the saw chain you must always pull out the power supply plug and wear protective gloves. The chain needs sharpening when: the sawdust from sawing humid wood looks like wood ß our. the saw chain penetrates the wood only under great pres- sure. -
Page 18: Cleaning The Guide Bar/Lubricating The Sprocket Nose
Files and how to work with them Sharpen using a special Þ le holder with a saw chain round Þ le dia. 4.0 mm. Normal round Þ les are not appropriate for this work. See "Accessories" for the order number. The Þ... -
Page 19: Replacing The Saw Chain
Worn out sprockets (2) may damage the new chain and must therefore be replaced. Do not attempt to replace the sprocket yourself. Sprocket re- placement requires special training and tools and must be done at a DOLMAR service centre. SERVICE Inspecting and replacing the carbon brushes Important: Inspect the carbon brushes at regular intervals! A notch on the brush shows the limit of wear. -
Page 20: Trouble Shooting
The user of the electric chain saw is not allowed to perform maintenance works which are not described in the instruction manual. All other works must be carried out by a DOLMAR service centre. Page... -
Page 21: Service, Spare Parts And Guarantee
To Þ nd your local distributor, please visit www.dolmar.com Please, take in mind that in the case that foreign spare parts are used instead of the original DOLMAR spare parts this will automati- cally invalidate the DOLMAR product guarantee. -
Page 22: Extract Of Spare Parts List
Extract from the spare parts list ES-2130 A, ES-2135 A Use original DOLMAR spare parts only. For performance of repairs and for ES-2140 A, ES-2145 A replacement of other components your DOLMAR service centre should be consulted. -
Page 23: Accessories
) is 103 dB(A). The EU-Type-Examination Certificate was performed by: TÜV Süd Product Service GmbH, Zertifizierungsstelle, Ridler- str. 31, D-80339 München. The technical documentation is on Þ le at DOLMAR GmbH, Jenfelder Straße 38, Abteilung FZ, D-22045 Hamburg. Hamburg, 15.5.2008... - Page 24 To Þ nd your local distributor, please visit www.dolmar.com DOLMAR GmbH SpeciÞ cations subject to change without notice Postfach 70 04 20 D-22004 Hamburg Germany Form: 995 702 303 (2.09 GB) http://www.dolmar.com...
