American Standard Princeton 2392.202 ICH Specifications

BARRIER FREE

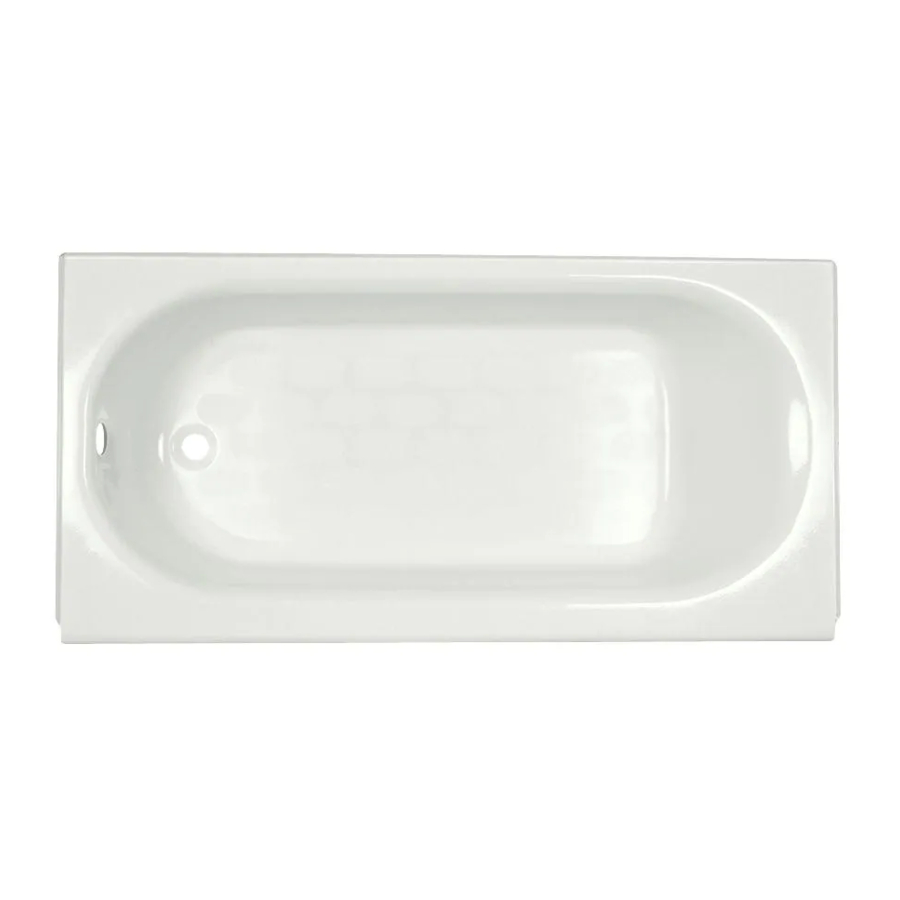

PRINCETON™ RECESS BATH W/ INTEGRAL
OVERFLOW for Above Floor Rough Installation
Americast brand engineered material
®
❏ 2392.202 ICH (Chrome Trim) Left Hand Outlet
for above floor installation
❏
2392.202 ICHTC Same as above with Tub Cover
❏ 2393.202 ICH (Chrome Trim) Right Hand Outlet
for above floor installation
❏ 2393.202 ICHTC Same as above with Tub Cover
❏ 2392.202 IPB (Polished Brass Trim)
Left Hand Outlet
❏
2392.202 IPBTC Same as above with Tub Cover
❏
2393.202 IPB (Polished Brass Trim)
Right Hand Outlet
❏ 2393.202 IPBTC Same as above with Tub Cover
❏ 2392.202 IBS (Brushed Satin Trim)
Left Hand Outlet
❏ 2392.202 IBSTC Same as above with Tub Cover
❏
2393.202 IBS (Brushed Satin Trim)
Right Hand Outlet
❏
2393.202 IBSTC Same as above with Tub Cover
• Lift and turn drain stopper assembly included
with bath
• Escutcheon included and installed on bath
• Acid resistant porcelain finish
• Recess bath with integral apron and
tiling flange
• Integral lumbar support
• Beveled headrest
• Full slip-resistant coverage
• End drain outlet
Nominal Dimensions:
1524 x 762 x 445mm
(60" x 30" x 17-1/2")
Bathing Well Dimensions:
1423 x 635 x 337mm
(56" x 25" x 13-1/4")
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Americast Plumbing Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ANSI Z124.1 Ignition Test
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
© 2008 AS America Inc.
PRINCETON™ RECESS BATH
WITH INTEGRAL OVERFLOW
AMERICAST
Photograph details integral overflow and drain
assembly. Drain assembly included with bath.
To Be Specified:
❏ Color:
❏ Bath Filler: (specify finish)
❏ Bath Drain: 1583.470 (specify finish)
To Be Specified - Optional:
❏ Pressure Test Kit : 791363-0070A
†
*See faucet section for additional models available
†
Pressure Test Kit is necessary to seal overflow and perform
system pressure test.
Americast ® brand engineered material is a composition of porcelain bonded
to enameling grade metal, bonded to a patented structural composite.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.
INSTALL WITH SEAT AT HEAD END.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
H115
BRAND ENGINEERED MATERIAL
®
Revised 2/08
