American Standard Princeton 2394 Specifications

BARRIER FREE

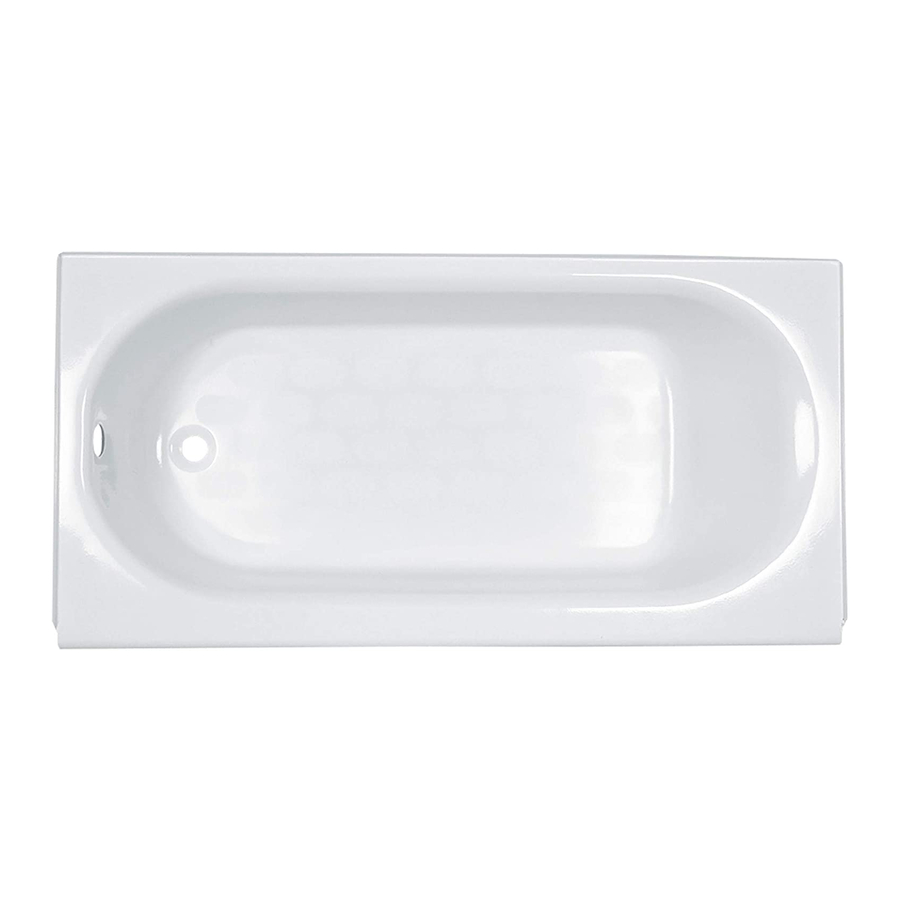

PRINCETON™ RECESS BATH W/ LUXURY LEDGE
Americast brand engineered material
®
❏ 2395.202 Right Hand Outlet
❏ 2395.202TC Same as above w/tub cover
❏
2394.202 Left Hand Outlet
❏ 2394.202TC Same as above w/tub cover
• Acid resistant porcelain finish
• Recess bath with integral apron and
tiling flange
• Integral lumbar support
• Extra wide ledge for placement of toiletries
• Beveled headrest
• Full slip-resistant coverage
• End drain outlet
PRINCETON™ RECESS BATH W/ LUXURY LEDGE
for Above Floor Rough Installations
❏ 2396.202 Left Hand Outlet for above
floor installation
❏ 2396.202TC Same as above w/tub cover
❏
2397.202 Right Hand Outlet for above
floor installation
❏
2397.202TC Same as above w/tub cover
Nominal Dimensions:
1524 x 864 x 356mm
(445mm for above floor installation)
(60" x 34" x 14")
(17-1/2" for above floor installation)
Bathing Well Dimensions:
1423 x 635 x 337mm
(56" x 25" x 13-1/4")
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.4 for Americast Plumbing Fixtures
• ASTM F-462 for Slip-resistant Bathing Facilities
• ANSI Z124.1 Ignition Test
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
Americast brand engineered material is a composition of porcelain bonded
®
to enameling grade metal, bonded to a patented structural composite.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 REQUIREMENTS FOR ACCESSIBLE AND
USEABLE BUILDING FACILITIES-CHECK LOCAL CODES.
INSTALL WITH SEAT AT HEAD END.
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
© 2008 AS America Inc.
PRINCETON™ RECESS BATH
WITH LUXURY LEDGE
AMERICAST
To Be Specified:
❏ Color:
❏ Bath Faucet*:
❏ Faucet Finish:
❏ Drain: 1583.470
❏ Drain Finish:
*See faucet section for additional models available
H117
BRAND ENGINEERED MATERIAL
®
Revised 2/08
