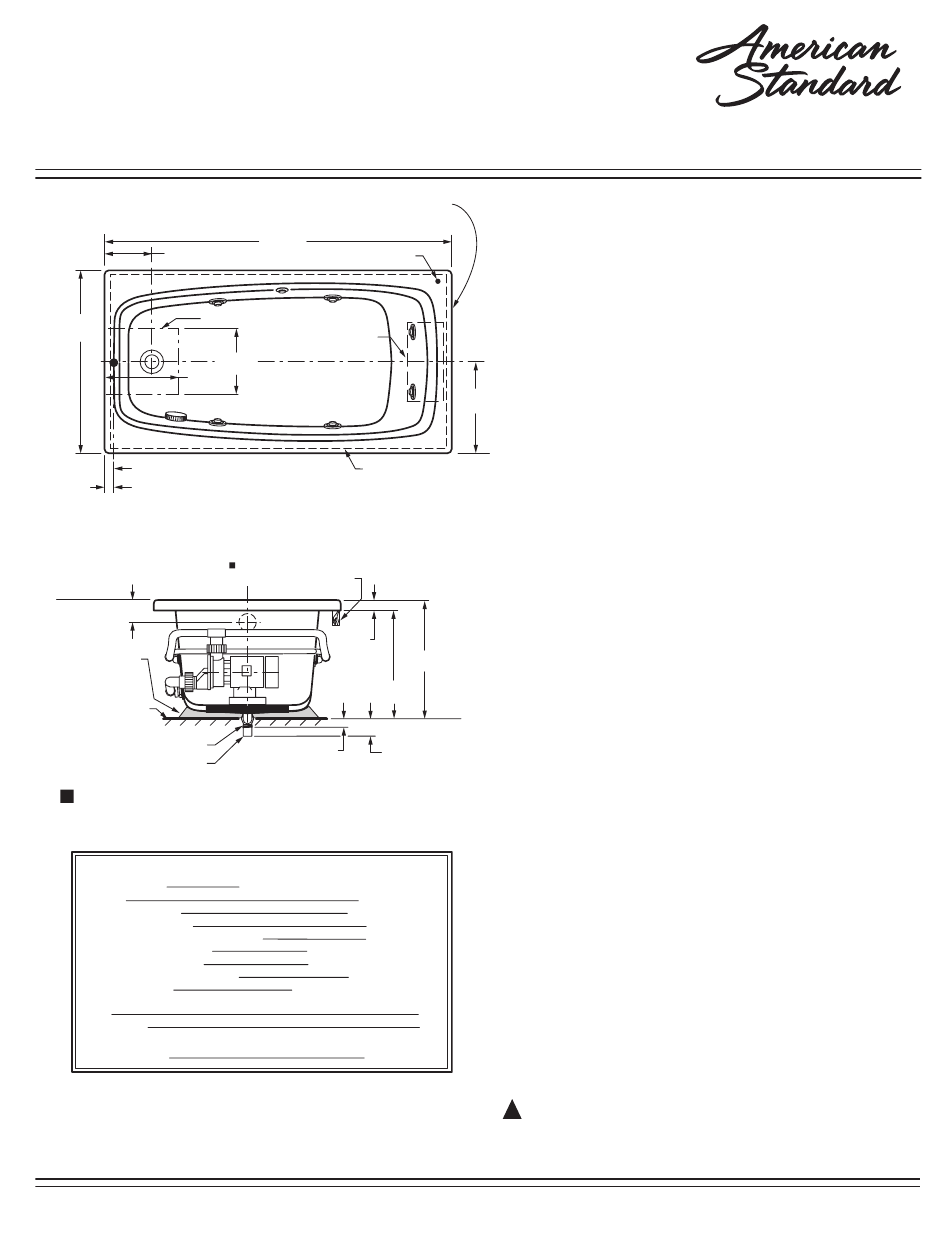

American Standard MAINSTREAM 2734 Series Installation Instructions

MAINSTREAM
HIGH GLOSS ACRYLIC
INSTALLATION INSTRUCTIONS
2734 SERIES WHIRLPOOL/BATHING POOL
210mm
(8-1/4)
CUTOUT IN FLOOR FOR DRAIN
813mm
(32)
305mm
(12)
C L DRAIN OUTLET
44mm
(1-3/4)
89mm
(3-1/2)
BATH
SUPPORT
MATERIAL
ROUGH
FLOOR
1-1/2 N.P.T.M. THREADS
1-1/2 O.D. TAILPIECE
DIMENSIONS OF FIXTURES ARE NOMINAL AND MAY
VARY WITHIN THE RANGE OF TOLERANCES ESTABLISHED
BY ANSI STANDARDS Z124.1 AND A112.19.7.
GENERAL SPECIFICATIONS FOR 2734 WHIRLPOOL
INSTALLED SIZE
WEIGHT
WEIGHT w/WATER
GAL. TO OVERFLOW
WHIRLPOOL MIN. OPERATING VOL.
BATHING WELL AT SUMP
BATHING WELL AT RIM
WATER DEPTH TO OVERFLOW
FLOOR LOADING
(PROJECTED AREA)
PTS.
CUBE (FT 3 )
WHIRLPOOL ELECTRICAL SPECIFICATIONS
SYSTEM I PUMP
NOTE: Deck-mounted fittings are not recommended.
FOR AFTER-SALES SERVICE CALL 1 (800) 442-1902 WEEKDAYS.
752690-100 Rev. E
®
PROVIDE ACCESS TO PUMP FOR
SERVICING ON ALL INSTALLATIONS
1524mm
(60)
ON/OFF
SWITCH
PUMP
229mm
(9)
OUTLINE OF CUTOUT
1486x775mm
(58-1/2 X 30-1/2)
LEVELING STRINGER
(NOT FOR SUPPORT)
38mm
(1-1/2)
464mm
(18-1/4)
98mm
35mm
(3-7/8)
(1-3/8)
60 x 32 x 19-3/4 In. (1524 x 813 x 502mm)
87 Lbs. (39 Kg.)
554 Lbs. (249 Kg.)
56 Gal. (212 L)
40 Gal.(152 L)
44 x 21 In. (1118 x 533mm)
55 x 26 In. (1397 x 660mm)
13-1/2 In. (343mm)
42 Lbs./Sq.Ft. (201 Kgs/Sq.m)
5.5 AMPS,115V.
T HA NK YOU...

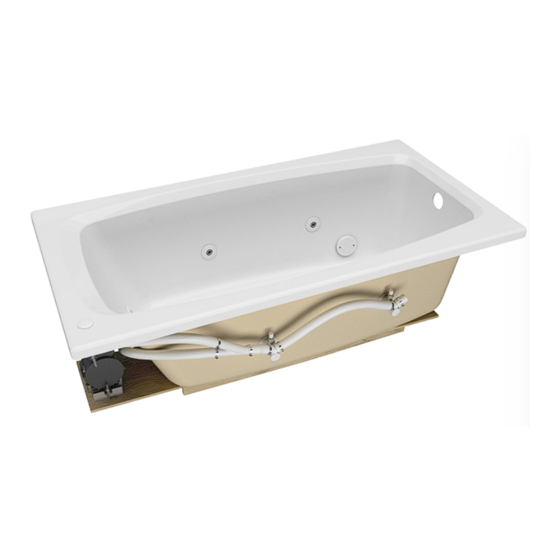

for selecting an American Standard bath. Your new bath is
shipped to you after careful inspection. The whirlpool version
is completely assembled with pump, motor, and system
piping. All you need to finish the installation are your
selected fittings and electrical connections for a whirlpool.
To insure maximum performance and pleasure from this
product, please follow the instructions and cautions.
List of Optional Components (not included):
• Tile Bead Kit - 751755-100
406mm
• Apron Kit (see your American Standard Distributor)
(16)
List of Required Components (not included):
• Drain (see your American Standard Distributor)
• Bath Filler (see your American Standard Distributor)
List of Required Tools and Supplies:
Tools
• Level
• Tape Measure
• Pipe Wrench
• Slip Joint Pliers
• Screw Driver
• Standard Woodworking Tools
• Personal Safety Equipment
502mm
• Caulking Gun
(19-3/4)
GENERAL INSTALLATION INFORMATION
Carefully uncrate and inspect your new bath for any shipping
damage. If such damage is found, report it to your vendor
immediately. After inspection and during installation, protect
the bath from construction damage. Before installation,
and before enclosing with wallboard, tile, etc., the bath
must be filled with water and operated to check for leaks
that may have resulted from shipping damage or
mishandling! Do not make modifications to the whirlpool
system or remove pump from factory mounting. This could
adversely affect the safety and performance of the whirlpool
and void the warranty. Do not handle or move the whirlpool
by the pump, motor, or piping system. Fittings (bath filler,
shower arm, etc.) are not provided with the bath and must
be ordered separately. Framing and enclosing materials are
provided by others.
For electrical requirements, refer to section titled "Whirlpool
Electrical Installation Instructions" .
10.2
Check for availability of optional American Standard wall
26.6
tiling bead (required for recess installation).
Protect all finished surfaces of the whirlpool during
construction and installation using a drop cloth.
!
WARNING! Do not lift whirlpool by the piping harness at
any time.
Supplies
• Nails
• Putty
• Caulking (waterproof)
• 1 x 4 Stringers
• Drop Cloth
• 15 amp GFI Outlet
• Cement, Plaster, Grout
