Graco Xtreme 244463 Operation Manual

Graco Xtreme 244463 Operation Manual

Zinc sprayer a series
Hide thumbs
Table of Contents

Advertisement

Quick Links

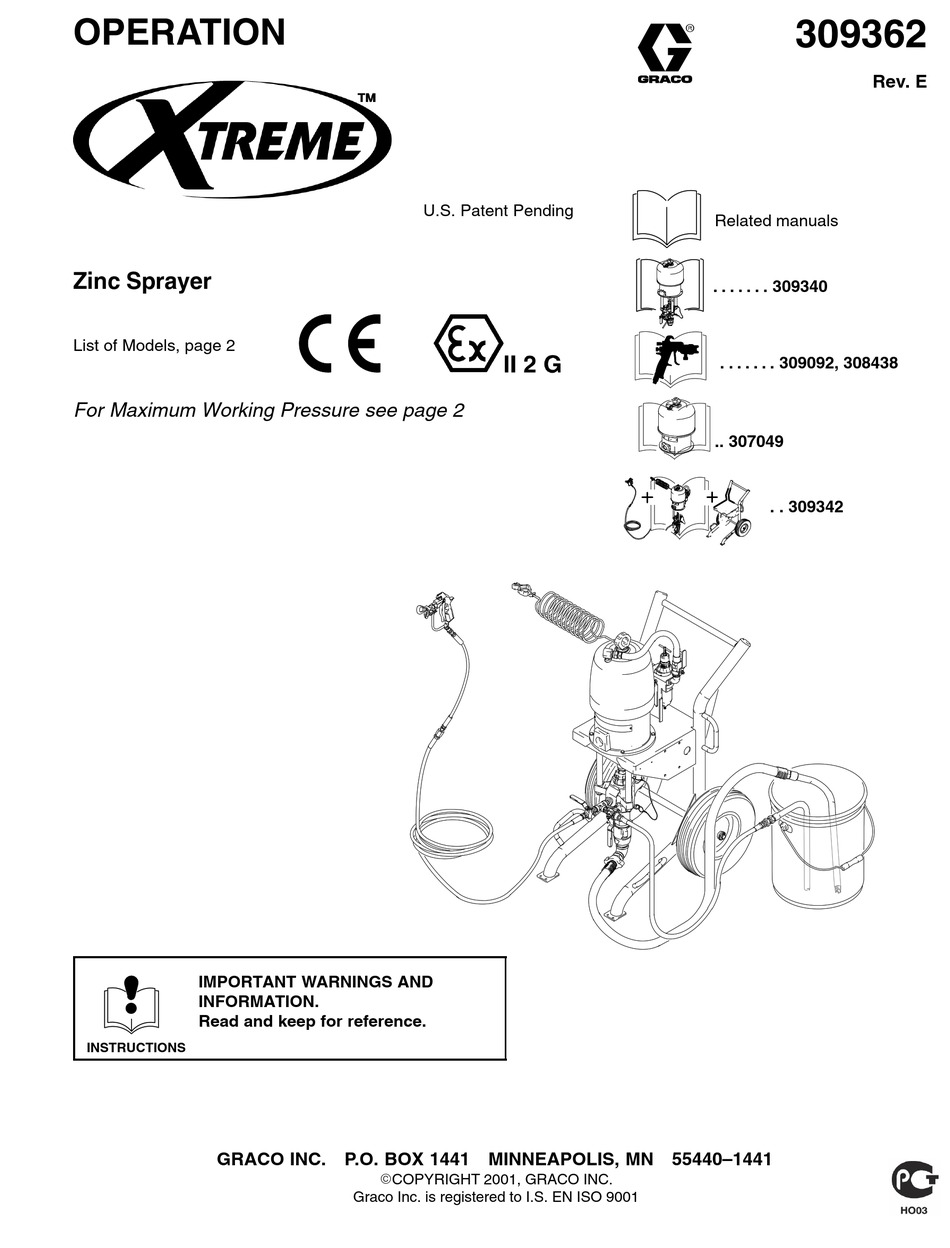

OPERATION
Zinc Sprayer
List of Models, page 2
For Maximum Working Pressure see page 2
IMPORTANT WARNINGS AND
INFORMATION.
Read and keep for reference.
INSTRUCTIONS
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
U.S. Patent Pending
ECOPYRIGHT 2001, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
309362
Rev. E
Related manuals
. . . . . . .
309340
. . . . . . .
309092, 308438
.. 307049
. . 309342

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtreme 244463 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Xtreme 244463

Summary of Contents for Graco Xtreme 244463

  • Page 1 OPERATION Zinc Sprayer List of Models, page 2 For Maximum Working Pressure see page 2 IMPORTANT WARNINGS AND INFORMATION. Read and keep for reference. INSTRUCTIONS GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 U.S. Patent Pending ECOPYRIGHT 2001, GRACO INC. Graco Inc.

  • Page 2: List Of Models

    HD = Heavy Duty Cart LW = Light Weight Cart Part Series Ratio / Pump No. Gun Hose Pump 33:1 244463 245117 Bulldog 24:1 245113 245116 Bulldog 309362 List of Models HD LW Maximum Fluid Working Pressure (207 bar) (3000 psi)
  • Page 3 When you see a symbol in the manual, for example refer to the WARNINGS on pages 3–4. EQUIPMENT MISUSE HAZARD Equipment misuse can cause the equipment to rupture, malfunction, or start unexpectedly and result in serious injury. INSTRUCTIONS D Read all instruction manuals, tags, and labels before operating the equipment. D Do not exceed the maximum working pressure of the lowest rated system component.

  • Page 4: Fire And Explosion Hazard

    FIRE AND EXPLOSION HAZARD Solvent and paint fumes can ignite or explode. To help prevent a fire and explosion: D Ground the equipment and the object being sprayed. See Grounding on page 7. D Use in extremely well ventilated area. D Hold gun firmly to side of grounded pail when triggering into pail.
  • Page 5 309362...
  • Page 6 Overview Adjust Air Loosen nut Tighten nut Air Supply Valve (Must be Bleed Type) Pump Air Regulator Grounding Wire Return System 309362...
  • Page 7 Use only electrically conductive hoses. Connect ground wire clamp to a true earth ground. Ground object being sprayed, fluid supply containers, solvent pails, waste pails, and all other equipment in spray area. Use only metal pails. Do not place on non-conductive surface such as paper, cardboard, or plastic.
  • Page 8 Complete before using the equipment for the first time. Tools Required: 1. Two adjustable wrenches 2. Non–sparking hammer or plastic mallet 3. Torque wrench 4. Grounding wires and clamps for pails 5. Two 5 gallon metal pails Ground sprayer. See page 7. Check packing nut.
  • Page 9 Attach electrically conductive fluid hose to pump and tighten. Attach electrically conductive fluid hose to gun and tighten. Connect main air supply to air supply valve. Flush. See page 11. Prime. See page 14. Setup WASTE FLUSH WASTE PAINT 309362...

  • Page 10: Pressure Relief

    Follow steps 1–3 when you stop spraying and before cleaning, checking, or servicing the equipment. Close bleed type air supply valve. Hold gun firmly against a grounded metal pail and trigger gun. Open return valve. 309362 Pressure Relief...
  • Page 11 Flush before using for the first-time, changing colors, before fluid can dry or settle out, and before storing the system. Relieve pressure. See page 10. Remove tip and guard. Place suction tube in solvent. Flush ... 309092, 308438 TI1114 FLUSH 309362...
  • Page 12 Adjust air regulator by turning handle counter–clockwise. Open air valve. Always use lowest air pressure possible when flushing. Flush hose and gun. Put recirculation tube in a grounded waste pail. Slowly open return valve. 309362 Flush ..WASTE 309092, 308438 Ï...
  • Page 13 When clean solvent flows from tube, close return valve. Pump will stall. Relieve pressure. See page 10. Store sprayer with solvent inside, or prime with another fluid to continue spraying. Flush WASTE Ï Ï Ï Ï Ï Ï TI1217 309362...
  • Page 14 Shut off bleed type air supply valve. Adjust air regulator by turning handle counter–clockwise. Replace tip and guard. Place suction tube in fluid. 309362 Prime ... 309092, 308438 TI1114 PAINT...
  • Page 15 Place recirculation tube in a grounded fluid pail. Open return line valve. Open air valve. Adjust air regulator by turning handle clockwise until pump starts. Use lowest air pressure to run pump. Prime PAINT 309362...
  • Page 16 Close return valve when material starts flowing. Hold gun firmly against a grounded metal pail and trigger gun until fluid flow is steady. Release trigger. Place recirculation tube into fluid to be sprayed. Equip- ment is ready to spray. 309362 Prime ...309092, 306686, 308438...
  • Page 17 Replace tip and guard. Set air pressure regulator. Slowly open bleed type air valve. Test spray pattern. Read fluid manufacturer’s recommendations. Adjust as necessary. Spraying TI1114 . . 309092, 306686, 308438 309362...
  • Page 18 Spraying When not spraying, reduce air pressure to 30 psi. Open recir- culation tube and close gun valve. PAINT Flush and relieve pressure when done spraying. See page 10 and 11. 309362...

  • Page 19: Maintenance

    Daily Relieve pressure. See page 10. Check packing nut. Adjust packings and replace TSL as necessary. Torque to 25–30 ft–lb (34–41 NSm). Maintenance Ï Ï Ï Ï Ï Ï FLUSH Ï Ï Ï Ï Ï Ï 309362...
  • Page 20 Drain water from air filter. Clean suction tube using a compatible solvent. Clean outside of sprayer using a cloth and compatible solvent. 309362 Maintenance...

  • Page 21: Troubleshooting

    Maintenance Check hoses, tubes, and cou- plings. Tighten all fluid connec- tions before each use. Troubleshooting . . . 309340 309362...
  • Page 22 (For mounting hole layout see air pump manual ) Pump Model mm (in.) Bulldog 33:1 1257 (49.5) Bulldog 24:1 1257 (49.5) 309362 Dimensions mm (in.) mm (in.) 795 (31.3) 660 (26) 795 (31.3) 660 (26) Weight (approx.) kg (lbs) 236 (107) 236 (107)
  • Page 23 309362...

  • Page 24: Graco Standard Warranty

    Graco Standard Warranty Graco warrants all equipment manufactured by Graco and bearing its name to be free from defects in material and workmanship on the date of sale by an authorized Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.

This manual is also suitable for:

Xtreme 2451132451162451173093623309362
