INSTRUCTIONS-PART LIST
Parts
INSTRUCTIONS
TO USE AN ELECTROSTATIC SPRAY GUN WITH THE
VALUEMIX PROPORTIONER

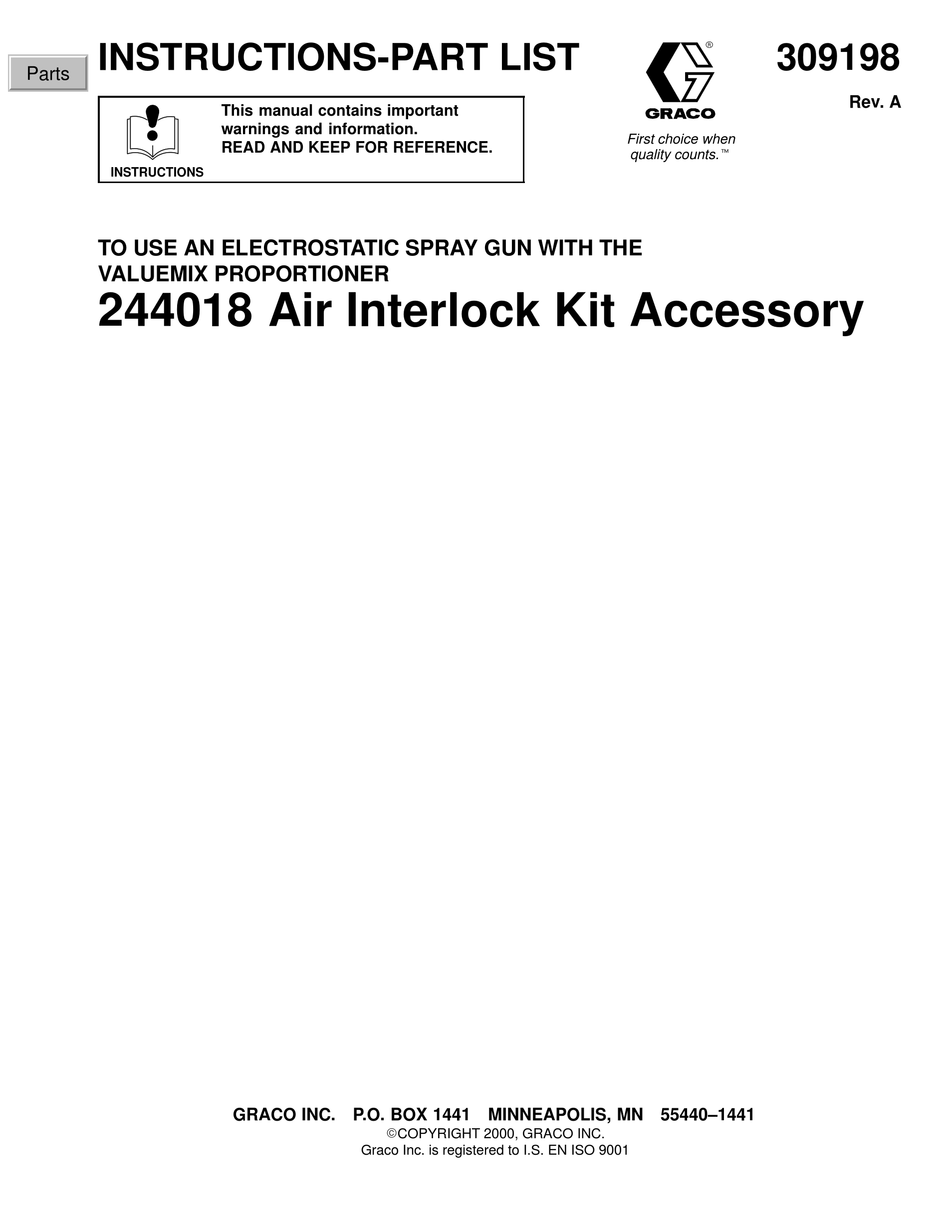

244018 Air Interlock Kit Accessory
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
309198
First choice when
quality counts.t
Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 244018 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco 244018

  • Page 1 READ AND KEEP FOR REFERENCE. quality counts.t INSTRUCTIONS TO USE AN ELECTROSTATIC SPRAY GUN WITH THE VALUEMIX PROPORTIONER 244018 Air Interlock Kit Accessory GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 ECOPYRIGHT 2000, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
  • Page 2 Installation The air interlock kit provides for safe flushing of an 10. Screw the adapter (1) onto the elbow (3) to attach electrostatic spray gun when used with the ValueMix the solenoid assembly to the pump air regulator Proportioner. The kit converts the ValueMix so that (A).
  • Page 3 Parts Use Only Genuine Graco Parts and Accessories Part No. 244018 Air Interlock Kit Part Part Description Description 113336 ADAPTER, 1/4 npt (m x f) 116126 VALVE, solenoid, air operated 112173 MUFFLER TUBE, polyethylene; 5/32 in. OD; 110249 ELBOW, 1/4 npt (mbe) use for 9a, 9b, and 9c 4.2 ft...
  • Page 4 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
