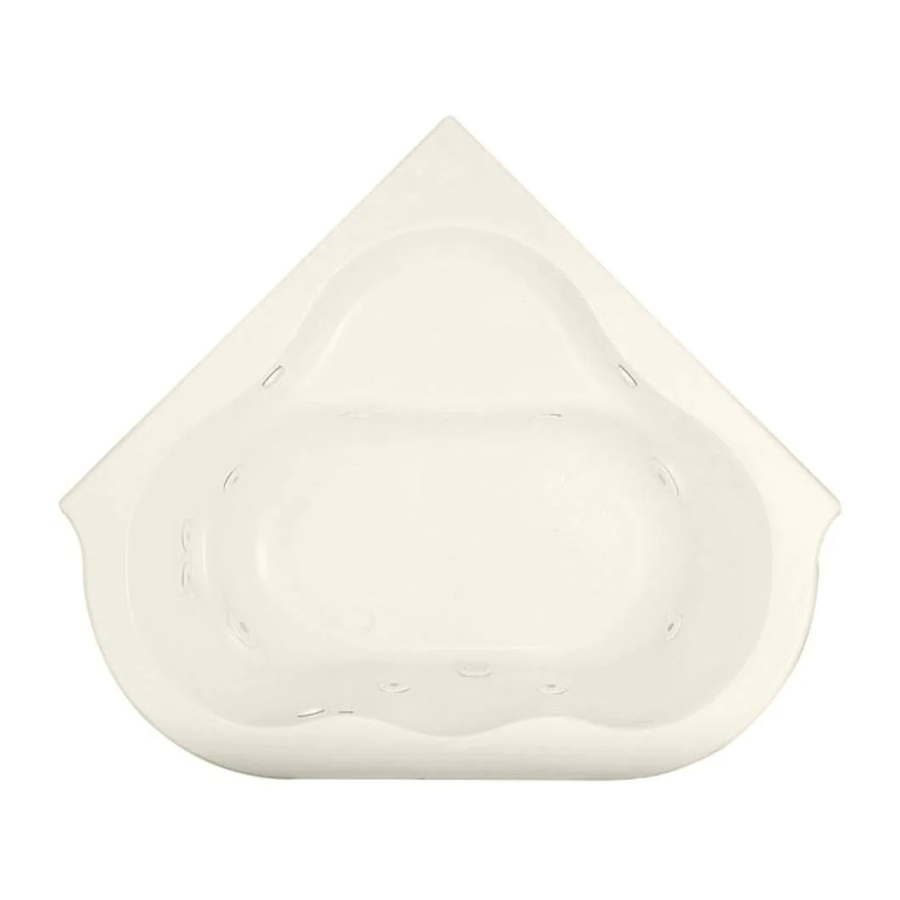

American Standard Lifetime 6060LC Specifications

LIFETIME™ CORNER
Comfortable two person design with dual back
support positions, integral seat and installed grab bar.
❏ Model# 6060L (specify color)
• Acrylic with fiberglass reinforcement
• 2.1 HP self-draining pump/motor with dry
run seal
• Ten flow adjustable jets including:
Two adjustable Ideal Flow Comfort Jets™
Eight adjustable Comfort Jets™
• Three silent air volume controls
• Side-mounted On/Off control
• Complete factory installed and tested
whirlpool system
• Includes E-Z-Install™ Whirlpool Heater
❏
Model# 6060LC (specify color)
• Same as above with the EverClean™ whirlpool
system. The EverClean™ antimicrobial system
incorporates AlphaSan®, a patented
antimicrobial agent manufactured right into the
circulation system components, which
suppresses the growth of unsightly algae,
fungus, mold and mildew.
Nominal Dimensions:
54-1/2" x 54-1/2" x 21-1/2"
(1384 x 1384 x 546mm)
Installed Size:
76-3/4" x 65-3/8" x 21-1/2"
(1949x 1661 x 546mm)
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
SEE REVERSE FOR ROUGHING-IN DIMENSIONS
AND PRODUCT SPECIFICATIONS
AlphaSan® is a registered trademark of Milliken & Co.
© 2007 American Standard Inc.
LIFETIME™ CORNER
WHIRLPOOLS BY AMERICAN STANDARD
Components Needed:
❏ Bath Filler*: (specify finish)
❏ Bath Drain: 1583.470 (specify color)
OR 1599.500.020 (white only)
Custom Accessories Available:
❏ Corner Apron: CORNER-APRON (specify color)
❏ Tile Bead Kit: TILE-BEAD
* See American Standard Faucet Selector
For color/finish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
NOTE: E-Z-Install™ Whirlpool Heater is designed to
maintain water temperature during operation. It will not heat
cold water to desired bathing temperature.
HD-1
HIGH GLOSS ACRYLIC
Revised 7/07
