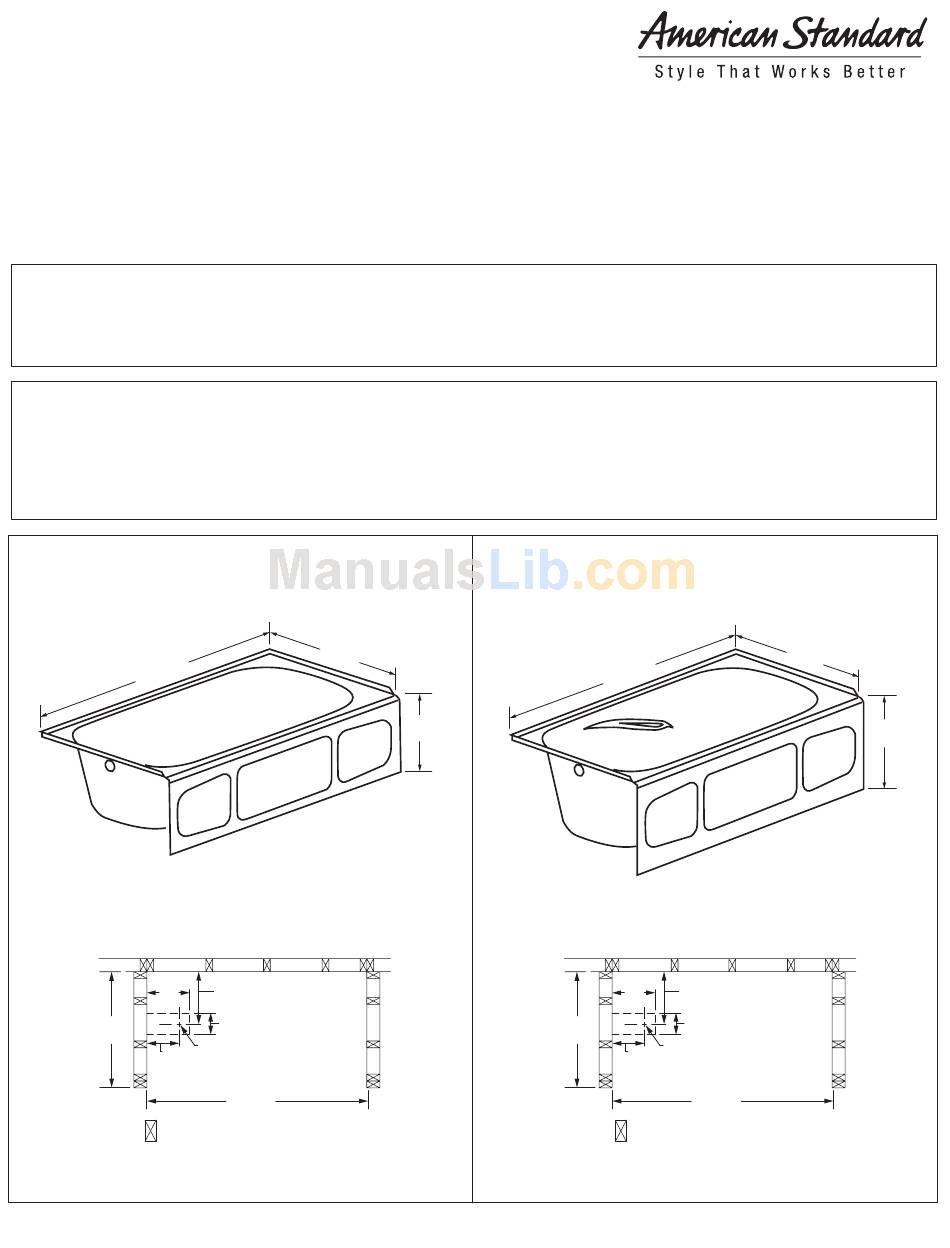

INSTALLATION INSTRUCTIONS
Acrylux Builder Series Bathtubs
Model 6030Y1.102.XXX
Model 6030Y1.202.XXX
Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this product
is installed properly, please read these instructions carefully before you begin. Local building codes vary by location.
Observe all local plumbing and building codes.
RECOMMENDED TOOLS AND MATERIALS
Tape Measure
Level
IMPORTANT:
• Allow tub to reach room temperature before installation.
• Before you begin, locate appropriate product reference (below).
• Read installation instructions carefully before starting project.
• Keep instructions for warranty information.
6030Y1.102.XXX
6030Y1.202.XXX
59-7/8"
1521mm
STUD LAYOUT:
The American Standard Acrylux Bathtub
will fit all standard 30" x 60" tub walls.
10"
254mm
31-1/2"
800mm
8"
203mm
= stud location
LHO shown - reverse for RHO
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A S A m e r i c a , I n c .
© A S A m e r i c a , I n c . 2 0 0 8
Model 6032Y1.102.XXX
Model 6032Y1.202.XXX
Saber Saw
Safety Glasses
30"
762mm
14"
356mm
6"
152mm
Drain C L
Floor Cut Out
6" x 10"
(152 x 254mm)
60"
1524mm
Pencil
Mortar Compound (optional)
Drill
Screws, 1" Flathead, Stainless
15"
381mm
STUD LAYOUT:
The American Standard Acrylux Bathtub
will fit all standard 32" x 60" tub walls.
33-1/2"
851mm
6032Y1.102.XXX
6032Y1.202.XXX
59-7/8"
1521mm
15"
10"
381mm
254mm
6"
152mm
Drain C L
Floor Cut Out
8"
6" x 10"
203mm
(152 x 254mm)
60"
1524mm
= stud location
LHO shown - reverse for RHO
32"
813mm
18"
457mm
754 2 81 - 10 0 R ev. A
