MOUNTING CINTIQ ON THE DISPLAY STAND

Before mounting Cintiq on the stand for the first time, remove any packing materials from the back of the
pen display and cabling.
• Make sure the stand is placed in a stable position on your desktop or other work surface so that it will
not tip or fall when Cintiq is mounted on it. Securely grasp Cintiq with both hands. The display should
face toward you, with the power button on top and status LEDs located to the upper left.

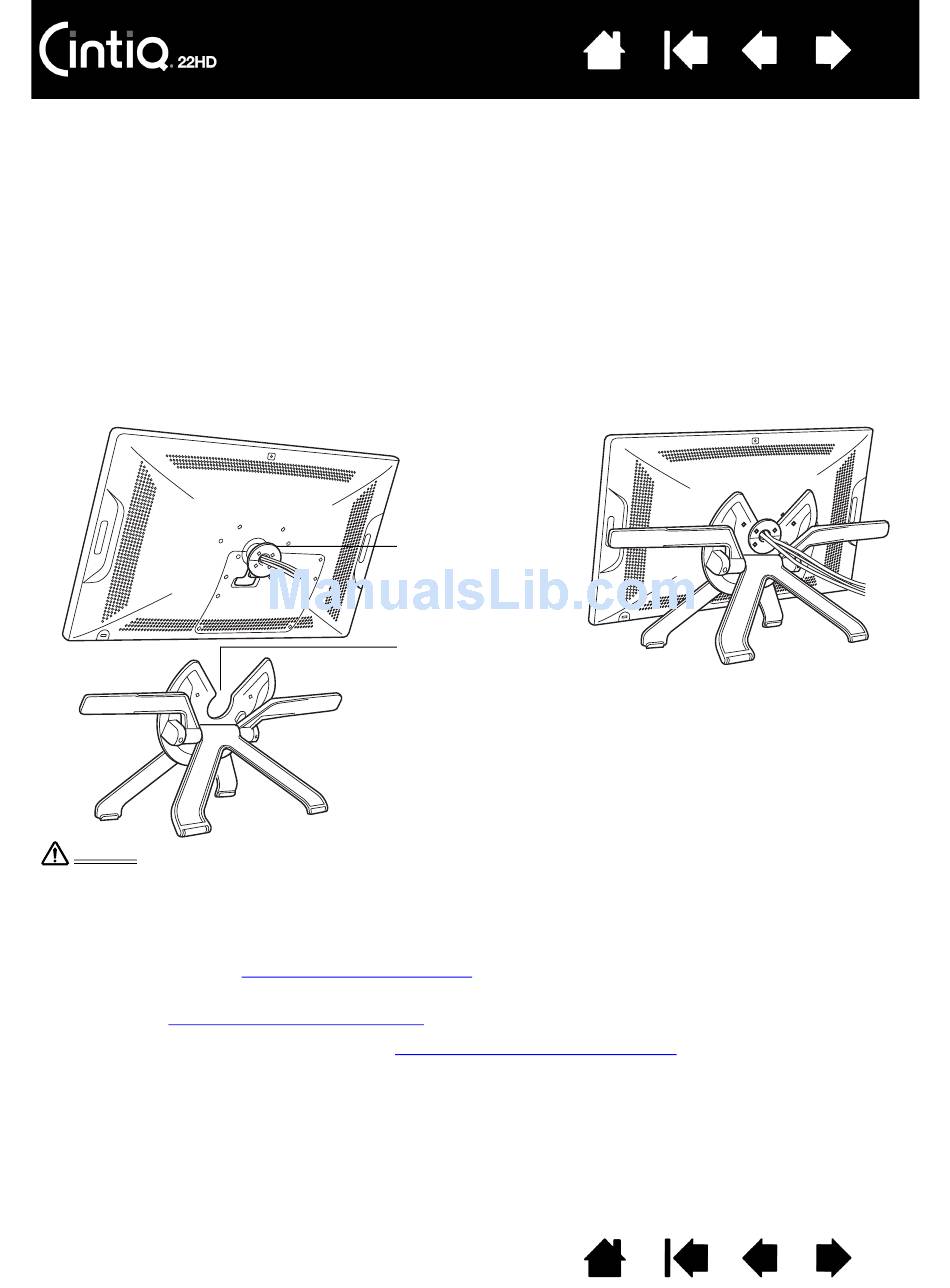

• Align Cintiq parallel to the front of the display stand so the bearing hub is located between the
V-shaped upper edges of the bearing recess. The V-shaped edges will serve as a guide for positioning
the bearing hub. See – A – below.
• With the back of Cintiq resting against the stand, lower Cintiq until the bearing hub rests securely in the
bearing recess. The pen display will be held in place by gravity. There will be no audible 'snap' to
indicate a mechanical lock. See – B – below.
– A –
Warning
When operating the incline adjustment levers, Cintiq must be mounted on the stand with the stand feet
resting on a stable, flat surface. The stand is spring-loaded and can snap back quickly, causing injury or
damage if not operated properly.
• Check for stability of the display stand. Carefully move the pen display and stand through their full
range of motion. See
• If you do not need to rotate the Cintiq pen display, you can secure it to the stand with the rotation lock
screws. See optional display
To learn about other mounting options, see
Contents Index
Bearing hub
Bearing recess
adjusting the display incline.
configurations.
using an alternate mount or
Contents Index
– B –
After mounting the pen display on the stand,
remove the foam blocks that lock the
adjustment levers in place. Save these blocks
with the other packaging materials. You will
need them if in the future you want to ship
Cintiq.
stand.
