DTF-510U
WARNING
Do not use DTF-510U Interactive Pen Display in a facility control system that requires extremely
DTF-510
high reliability; it may cause other electronic devices to malfunction, or other devices may cause the
Interactive Pen Display to malfunction.
Where use is prohibited, power off DTF-510U to prevent the possibility of it causing other electronic
devices to malfunction. Wacom does not accept any liability for direct or consequential damages. For
details, please refer to your Warranty, located at the end of this manual.
HIGH VOLTAGE
Do not open DTF-510U. It has the risk of electric shock.
Only use the AC adaptor that came with DTF-510U. If a different type of AC adaptor is used, DTF-
510U will not work properly or it may be damaged. Using a different type of AC adaptor also has the
510
potential to result in fire. Use of a different AC adaptor will void your warranty.
CAUTION
Prevent your children from swallowing the pen nib or side switch. � The pen nib or side switch may
accidentally be pulled out if children are biting on them.
If the LCD screen has been damaged, DO NOT touch any liquid that may be leaking from it; this
liquid is an irritant. In case of contact with skin, eyes, or mouth, rinse immediately with running water for
at least 15 minutes or more. If contact is made with the eyes or mouth, also consult a physician.
Be sure to use a grounded power source when applying power to DTF-510U.
DTE-510UEN.ind

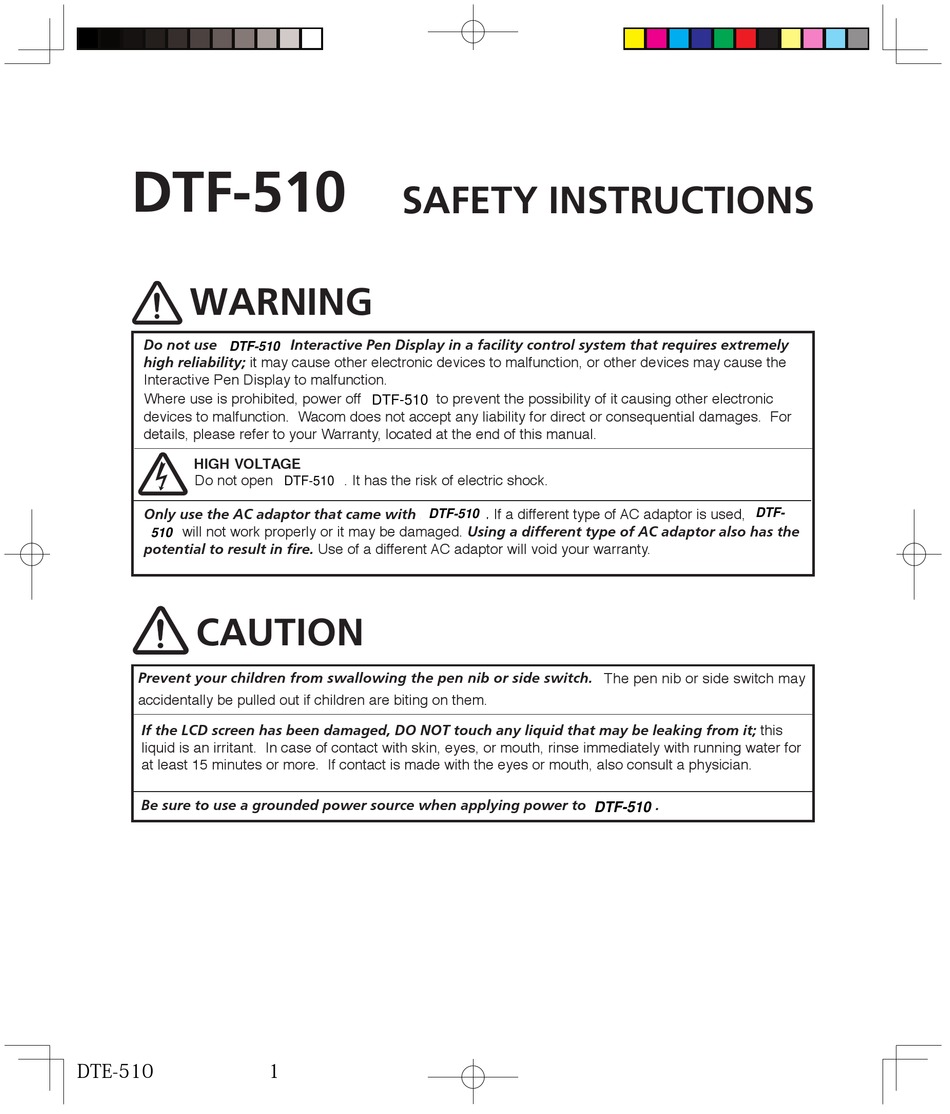

SAFETY INSTRUCTIONS
DTF-510
DTF-510
DTF-510
1
DTF-
DTF-510
03.4.9, 6:32 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTF-510 and is the answer not in the manual?

Questions and answers

Related Manuals for Wacom DTF-510

Summary of Contents for Wacom DTF-510

  • Page 1 Where use is prohibited, power off DTF-510U to prevent the possibility of it causing other electronic DTF-510 devices to malfunction. Wacom does not accept any liability for direct or consequential damages. For details, please refer to your Warranty, located at the end of this manual.
  • Page 2 This manual describes how to install DTF-510U hardware and software. It also describes how to use DTF- DTF-510 DTF-510 510U and the pen. Note that the computer treats the two parts of DTF-510U (the LCD monitor and the Wacom DTF-510 tablet) as separate pieces of hardware. Therefore, the installation process is completed in two stages. First, you will install the LCD monitor portion of DTF-510U.
  • Page 3 Be sure to follow all instructions, cautions, and warnings found within this manual. Failure to do so could void your warranty, in which case Wacom shall have no responsibility to repair or replace the product. Do not put heavy articles on the Interactive Pen Display; �this may damage the display screen or stand.

  • Page 4: Table Of Contents

    Table of Contents Checking Packed Components Installation LCD Monitor Installation Tablet Software Installation for Windows and Macintosh Customizing DTF-510U – The Basics Opening the Wacom Tablet Control Panel Calibrating the Tablet DTF-510U Component Functions Front View Rear View Side Cover Installation...

  • Page 5: Checking Packed Components

    In your package you will find the following items: DTF-510U AC Adaptor and Cable main unit USB Cable User’s Manual Wacom Software CD Contains the Interactive Pen Display software and a VGA Cable* Readme file (Windows/Macintosh) Please retain the package box for use when storing or shipping DTF-510U.

  • Page 6: Installation

    Installation   LCD Monitor Installation First install the monitor portion of the DTF-510U. Do not connect the USB cable or serial data cable until you DTF-510 procede to the step " ". Turn off your computer. Connect the VGA cable between the DTF-510U and your computer.

  • Page 7: Tablet Software Installation For Windows And Macintosh

    You may also want to fine-tune the display. Please refer to Adjusting the LCD Monitor on page 16 for more information. To install the Wacom tablet software, turn off your computer and connect the USB cable or serial data cable.

  • Page 8: Customizing Dtf-510U - The Basics

    Customizing DTF-510U --- The Basics Opening the Wacom Tablet Control Panel The W Control Panel makes it easy to customize your Interactive Pen Display and the pen. ACOM ABLET To open the control panel: Windows: Click on the Windows S button and choose P .

  • Page 9: Calibrating The Tablet

    Interactive Pen Display. This is required to adjust for parallax caused by the clear plastic overlay. After setting the tablet in its working position, follow the procedure below to calibrate the tablet. From the Wacom Tablet Control Panel, select the tab.

  • Page 10: Dtf-510U Component Functions

    Turns the power to the unit on or off. Power Lamp Lights green when power and video signals have properly been supplied to the DTF-510U. Turns orange or DTF-510 flashes when your computer goes into power management mode and stops sending the video signal to the DTF-510U.

  • Page 11: Rear View

    Rear View Connectors Pen Compartment Stores the pen while the DTF-510U is not in use. DTF-510 Feet Handles Grab the DTF-510U here when moving to a defferent location. DTF-510 As the tablet portion of the DTF-510U emits electromagnetic waves at a certain frequency, if another tablet is closely DTF-510 placed to the DTF-510U, the screen cursor may jitters or jumps around.
  • Page 12 DTF-510U Component Functions Storing the Pen into the Pen Compartment To store the pen: Insert either end of the pen into the lower side of the pen compartment. Gentlly push the other end of the pen into the upper side of the pen compartment.

  • Page 13: Using An Alternate Mount Or Stand

    Using an Alternate Mount or Stand If you will be using the DTF-510U in an installation that requires the use of an alternate mounting platform, you DTF-510 mount the DTF-510U onto a VESA conforming mount arm or stand. DTF-510 A VESA mounting platform will require mount screws that are 4 mm wide with a 0.7 mm pitch (M4 Regular).

  • Page 14: Using The Pen

    Pointing and Selecting Move the pen above the DTF-510U Interactive Pen Display screen to position the screen cursor. DTF-510 The cursor instantly jumps to the new location (absolute positioning). Press the pen tip on the Interactive Pen Display screen to make a selection.
  • Page 15 Double-Clicking Press the upper side switch (Windows systems) or quickly tap the Interactive Pen Display screen twice in the same place with the pen tip. Double-clicking is easier when the pen is perpendicular to the tablet screen. Dragging Select an object, then slide the pen tip across the Interactive Pen Display screen to move the object. DTE-510UEN.ind 03.4.9, 6:33 PM...

  • Page 16: Adjusting The Lcd Monitor

    Factory Presets, Auto Adjust, and User Settings Factory Presets: To enable DTF-510U to display the image with the best quality based on the incoming signal, DTF-510 the unit is programmed with some standard display modes set as defaults. Auto Adjust: When DTF-510U receives a signal that is other than a default display mode, and if the horizontal...
  • Page 17 Menu Position Horizontal Center Select to move the OSD Select to move the screen menu around the display. image left or right. To automatically adjust, use the RESET option. Vertical Center Reset Select to move the screen Provides two options: image up or down.

  • Page 18: Adjusting Pitch And Phase

    If the display does not fit the LCD panel border or some portion of text appears blurred, adjust pitch and phase by following the below procedure. For the best effect, a resolution of 1024 x 768 is recommended. From the Wacom Tablet Control Panel, select the Calibration tab.

  • Page 19: Power Saving

    Power Saving DTF-510U conforms to VESA and Energy Star power saving guidelines. When using DTF-510U with a VESA DTF-510 DTF-510 DPMS Display Power Management Signaling (DPMS) compliant computer or graphics card, the display will automatically comply with the below power saving parameters.

  • Page 20: Caring For Your Dtf-510U

    Cleaning To clean the DTF-510U casing , use a soft cloth with mild detergent (such as dish washing liquid) diluted DTF-510 with water. Do not use paint thinner, benzine, alcohol, or other organic solvents to clean DTF-510U casing or DTF-510 pen.

  • Page 21: Display Troubleshooting

    DTF-510 described here, and you can try the solution offered. For the problems regarding tablet or pen, refer to the Troubleshooting chapter in the online Help that can be accessed from the Wacom Tablet control panel. Problem Hint The frequency of input signals do not match DTF-510U. Connect different monitor The message "OUT OF SCAN RANGE"...
  • Page 22 As necessary, adjust PITCH and PHASE. ☞ P.16, 18 Display riffles or flickers ■ Verify that the display adaptor or graphics card matches DTF-510U specific- ■ DTF-510 ations. Adjust the refresh rate of your computer. ■ As necessary, adjust CONTRAST or BRIGHTNESS. ☞ P.16 Display is not clear.

  • Page 23: Specifications

    Specifications General Specifications Physical dimensions (WxDxH): 400x340x109.5mm Weight: 4.9kg Main Unit input Voltage: DC12V Power consumption: 40W or less (DC12V) Operating temp. & humidity: 5 to 35 deg. C, 80%RH (non condensing) Storage temp. & humidity: 10 to 60deg. C, 90%RH (non condensing) (maximum storage temperature is 38% at 60 deg.C, and maximum storage humidity is 42 deg.

  • Page 24: Tablet

    Specifications Tablet Reading technology: Electromagnetic give and receive method Active area: 304.1 x 228.1mm Resolution: 20 lpmm (0.05mm) max. Accuracy: +/-0.5mm, four corners ( 7 mm wide, 25 mm long from each corner of four "L" shaped areas) to be +/-1.0mm Maximum reading height: Maximum report rate: 185 points/sec., max (RS-232C)

  • Page 25: Appendix

    Software, within the Warranty Period you should notify your local dealer or distributor. Should you have any questions about this term, or if you desire to contact WACOM for any reason, Contact your local distributor or:...
  • Page 26 Copyright © WACOM Company, Limited, 2003 All rights reserved. No part of this manual may be reproduced except for your express personal use. Wacom reserves the right to revise this publication without obligation to provide notification of such changes. Wacom does its best to provide current and accurate information in this manual.
