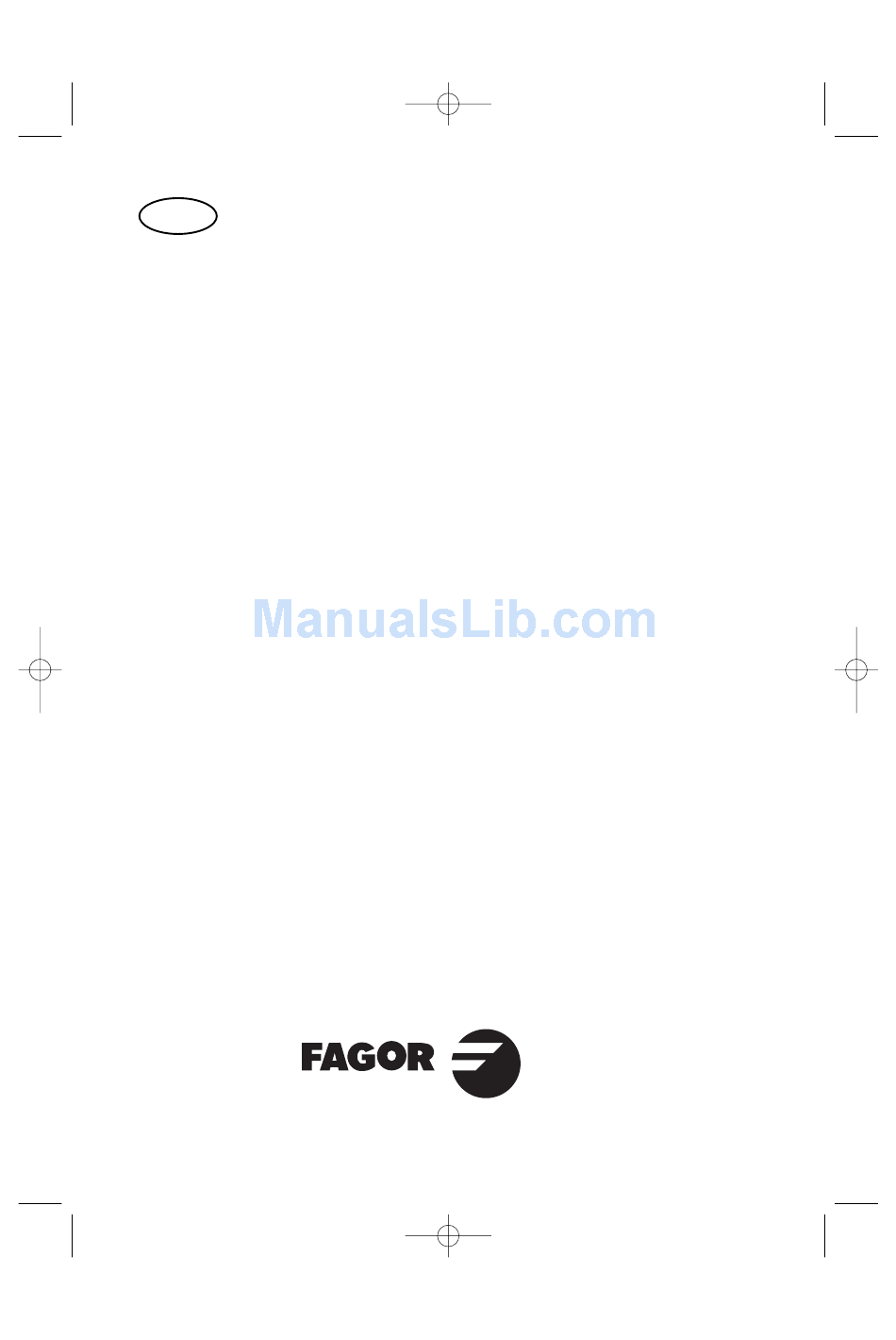

- Page 1 99644061_A_EN.qxp 02/07/2007 09:36 Page 1 ser Manual for Your Oven 7H-750*...
-
Page 2: Table Of Contents
99644061_A_EN.qxp 02/07/2007 09:36 Page 2 able of Contents Introduction What does your oven look like? escription of the appliance ccessories Safety recommendations How do you install your oven? lectrical connection P.7-8 ow do you change the bulb? seful dimensions for installing your oven How does your oven work? lose-up of your programmer P.10... -
Page 3: Introduction
Page 3 ntroduction Dear Customer, You have just acquired a FAGOR oven and we would like to thank you. Our research teams have created this new generation of appliances for you so that cooking is a pleasure every day. With pure lines and modern aesthetics, your new FAGOR oven will blend harmoniously into your kitchen and will perfectly combine cooking performance and ease of use. -
Page 4: What Does Your Oven Look Like
99644061_A_EN.qxp 02/07/2007 09:36 Page 4 hat does your oven look like? DESCRIPTION OF THE APPLIANCE Temperature selector Shelf support indicator Programmer Hole for turnspit Contact for open door Function selector detector Light... -
Page 5: A Ccessories
99644061_A_EN.qxp 02/07/2007 09:36 Page 5 ccessories REAR nti-tipping safety grid The grid can be used to hold all dishes and moulds containing foodstuffs to be cooked or browned. It can be used for barbecues (to be placed directly on the grid). FRONT ulti-purpose dish (cake dish or drip tray) -
Page 6: Safety Recommendations
99644061_A_EN.qxp 02/07/2007 09:36 Page 6 afety recommendations Please become familiar with these recommendations before installing and using your oven. This oven was designed for use by private persons in their homes. It is intended solely for cooking foodstuffs. This oven does not contain any asbestos-based components. -
Page 7: How Do You Install Your Oven
99644061_A_EN.qxp 02/07/2007 09:36 Page 7 ow do you install your oven? Electrical connection Monophase 20A Meter 220-240 V ~ 50 Hz Monophase line 220-240 V ~ 16A fuse or differential circuit breaker Electrical outlet 2-prong receptacle + ground lead IEC Standard 60083 Power cable length: approximately 1.5 m... -
Page 8: H Ow Do You Change The Bulb
99644061_A_EN.qxp 02/07/2007 09:36 Page 8 How do you install your oven? hanging the power cable • The power cable (H05 RR-F, H05 RN-F or H05 VV-F) must be of sufficient length to be connected to the build-in oven while it sits on the floor in front of the cabinet. To do this the appliance must be disconnected from the electrical network: •... -
Page 9: Useful Dimensions For Installing Your Oven
99644061_A_EN.qxp 02/07/2007 09:36 Page 9 How do you install your oven? Useful dimensions for installing your oven The oven can be installed under a work top or in a column of cabinetry (open* or closed) having the appropriate dimensions for built-in installation (see adjacent diagram). -
Page 10: How Does Your Oven Work
99644061_A_EN.qxp 02/07/2007 09:36 Page 10 ow does your oven work? lose-up of your programmer APPLIANCE DESCRIPTION Display area for clock and cooking times Cooking time icon Cooking end time icon Independent timer Touch control for accessing various time setting programmes Touch controls for setting time... -
Page 11: H Ow Do You Set The Clock On The Oven
99644061_A_EN.qxp 02/07/2007 09:36 Page 11 How does your oven work? ow do you set the clock on the oven? hen supplied with electricity • The display flashes. • Set the time by pressing the touch controls (holding your finger on the touch control allows for rapid number advancement). -
Page 12: H Ow Do You Program For Immediate Cooking
99644061_A_EN.qxp 02/07/2007 09:36 Page 12 How does your oven work? ow do you program for immediate cooking? The analogue programmer should display only the time; it should not be flashing. • Choose the cooking mode: Press and turn the selector knob to the position of your choice. -
Page 13: Cooking Time
99644061_A_EN.qxp 02/07/2007 09:36 Page 13 How does your oven work? • Choose the cooking time. Press the touch control once. The cooking time (at 0:00) and the corresponding icon flash to indicate that you can now enter the information. You can now set the cooking time. Press the touch controls to set the desired time. - Page 14 99644061_A_EN.qxp 02/07/2007 09:37 Page 14 How does your oven work? • Press the touch control once. The cooking time (at 0:00) and the corresponding icon flash to indicate that you can now enter the information. Now you can set the cooking time for up to 23:59 hours. •...
-
Page 15: H Ow Do You Use The Timer
99644061_A_EN.qxp 02/07/2007 09:37 Page 15 ow do you use the timer? Your oven is equipped with a timer that is independent of the oven functions, making it possible to measure times. • Press several times on the touch control until the timer icon starts flashing, along with the corresponding display •... -
Page 16: Oven Cooking Modes
99644061_A_EN.qxp 02/07/2007 09:37 Page 16 ven cooking modes Symbol Name of cooking mode Description of cooking mode an heating Cooking controlled by the heating element located at Cooking controlled by the heating the back of the oven and element located at the back of the by the fan. - Page 17 99644061_A_EN.qxp 02/07/2007 09:37 Page 17 Oven cooking modes Recommendations Recommended for preserving tenderness in white meats, fish, vegetables. For cooking multiple items on up to three levels. Recommended for quiches, potpies and juicy fruit tarts. Recommended for moist dishes (quiches, juicy fruit tarts, etc.).
-
Page 18: How Do You Clean The Cavity Of Your Oven
99644061_A_EN.qxp 02/07/2007 09:37 Page 18 ow do you clean the cavity of your oven? hat is pyrolysis? - Pyrolysis is a cycle during which the oven cavity is heated to a very high temperature in order to eliminate soiling from splattering and spills. The smoke and odours released are destroyed as they move through a catalyzer. - Page 19 99644061_A_EN.qxp 02/07/2007 09:37 Page 19 c) Turn the "function selector" knob to the "PYRO ECO" or "PYRO" position. The oven will be unavailable for cooking for 2 hours "PYRO ECO" or for 2:30 "PYRO"(cannot be modified). This time includes the cooling time until the door can be unlocked.
-
Page 20: Malfunctions
99644061_A_EN.qxp 02/07/2007 09:37 Page 20 hat do you do in case of operating malfunctions? If you have a doubt about the functioning of your oven, this does not necessarily mean that there is a malfunction. In any event, check the following items: ou observe that...
