Summary of Contents for Grundig RR 740 CD

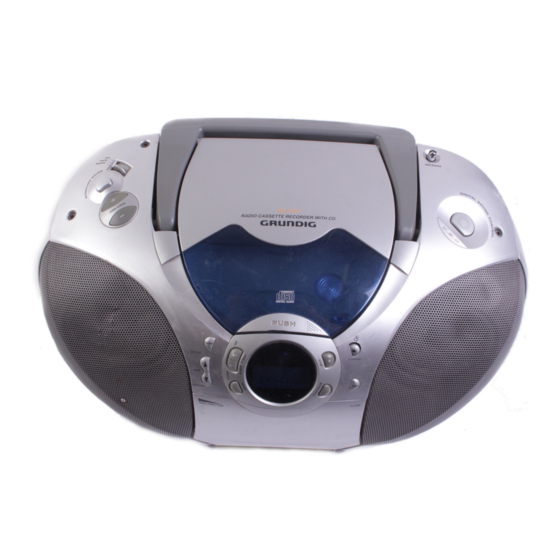

- Page 1 RADIO RECORDER WITH CD RR 740 CD / RR 770 CD...
- Page 2 INHALT _____________________________________________________ Sicherheit und Pflege CD-Betrieb DEUTSCH Auf einen Blick Cassetten-Betrieb Stromversorgung Informationen Lautstärke/Klang Fehlersuche Radio-Betrieb Service Care and safety CD mode ENGLISH Overview Tape mode Power supply Information Volume/tone Troubleshooting Radio mode Service Sécurité et entretien Fonction CD FRANÇAIS Vue d’ensemble Fonction cassette Alimentation en courant...
- Page 4 CARE AND SAFETY ______________________________ ENGLISH To ensure that this device provides you with long-term satisfaction and enjoyment, please observe the following instructions: This device is designed for the recording and playback of audio signals. ANTENNA RADIO TAPE RR 770 CD RADIO CASSETTE RECORDER WITH CD Any other use is expressly prohibited.
- Page 5 OVERVIEW ____________________________________________ Controls ANTENNA TAPE RADIO RR 770 CD RADIO CASSETTE RECORDER WITH CD BAND STANDBY REPEAT CLASSIC ROCK POP TAPE INTRO REPEAT RANDOM CHTRACK MEMORY VOLUME -88:8.8 PROG. RANDOM CLOSE TAPE DIRECTION Illustration shows DIGITAL SOUND CONTROL the RR 770 CD General STANDBY Switches the device on and off.
- Page 6 OVERVIEW ____________________________________________ Tape unit CLOSE CLOSE Closes the tape compartment. TAPE DIRECTION Starts recording. Starts playback. DIGITAL SOUND CONTROL Rewinds the tape to the beginning. Fast forwards the tape to the end. Opens the cassette compartment and ends playback/recording of the cassette. Pauses recording and playback.
- Page 7 OVERVIEW ____________________________________________ VOLUME Volume setting (RR 770 CD only). FM/MW/LW Displays the selected frequency band. Track number (CD) or preset station (radio). 8 8 8 8 Playing time (CD) or station frequency (radio). 8 8 8 8 : : 8 8 . . 8 8 MHz/kHz The frequency of the current station in (FM) or...
-
Page 8: Mains Operation
POWER SUPPLY ___________________________________ Mains operation Note: Check if the mains voltage on the type plate (on the bottom of the device) corresponds to your local mains supply. The only way to disconnect the device from the mains supply is to pull out the plug. -
Page 9: Power Supply
POWER SUPPLY ______________________________________ Important notes for users in the U.K. Mains plug This apparatus is fitted with an approved moulded 13 Amp plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. -
Page 10: Adjusting The Volume
Adjusting the volume Adjust the volume using the » – VOLUME + « buttons. – Display: e.g. VOLUME 40 (RR 770 CD only). Using the » VOL« control (RR 740 CD). TAPE RADIO Listening with headphones Connect the headphones to the headphone jack (ø... -
Page 11: Radio Mode
RADIO MODE _________________________________________ Radio reception Press » STANDBY« to switch on the device. – The indicator in the » STANDBY« button goes out. Set the » CD TAPE RADIO« switch to » RADIO«. – The display shows the set frequency and waveband. Select frequency band (FM, MW or LW) by pressing the»... - Page 12 CD MODE ______________________________________________ General instructions for laser devices You will find a symbol similar to the one shown here on the bottom of the device. CLASS 1 LASER PRODUCT means that the laser is designed in such a way as to ensure that the maximum permissible emission value cannot CLASS 1 LASER PRODUCT be exceeded under any circumstances.
-
Page 13: Repeating The Current Track
CD MODE _____________________________________________ CD playback Note: Never open the lid of the CD compartment when the CD player is TRACK running. 03 47 Press » PLAY/PAUSE II« to start playback. – Display: e.g. »01 03:47«. – Playback stops automatically at the end of the CD. TRACK Press »... -
Page 14: Playing Back Tracks In Random Order
CD MODE _____________________________________________ Playing back tracks in random order Press »RANDOM « during playback. RANDOM – Display: »RANDOM«; the tracks on the CD are played back in TRACK 03 24 random order. To end this function press » RANDOM « again. –... - Page 15 CD MODE _____________________________________________ Playing back the track memory With the device in the STOP position, press » PROG. « once. The first track in the memory is displayed. TRACK MEMORY 43 58 Start playback of the track memory by pressing »PLAY/PAUSE II«.
- Page 16 TAPE MODE __________________________________________ Preparation Switch on the device and set the » TAPE RADIO« switch to TAPE RADIO » TAPE«. – Display: » TAPE«. Open the cassette compartment by pressing » «. – The cassette compartment opens. Insert a cassette in the compartment with the tape side facing downwards and the full reel on the left.
- Page 17 TAPE MODE ___________________________________________ ecording from the radio CLOSE TAPE DIRECTION Put a cassette with the protection tabs intact in the cassette compartment, and press the » « and » « buttons to find the right position on the tape. DIGITAL SOUND CONTROL Set the »...
-
Page 18: Cleaning The Tape Drive
INFORMATION _____________________________________ Cleaning the tape drive To guarantee good recording and playback quality, clean the parts shown (1, 2, 3) after every 50 hours of use, or once a month. Open the tape compartment and moisten a cotton swab with alcohol or a special head-cleaning fluid. -
Page 19: Troubleshooting
TROUBLESHOOTING ________________________ If a fault occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the radio recorder yourself, as this would invalidate the guarantee. - Page 20 SERVICE ____________________________________________ GRUNDIG customer service locations GRUNDIG GRUNDIG GRUNDIG GRUNDIG GRUNDIG Kundendienst Nord Kundendienst West Kundendienst Mitte Kundendienst Süd Kundendienst Ost Kolumbusstraße 14 Horbeller Straße 19 Dudenstraße 45-53 Beuthener Straße 65 Wittestraße 30e D-22113 Hamburg D-50858 Köln D-68167 Mannheim D-90471 Nürnberg...
- Page 22 Grundig AG • Beuthener Str. 41 • D-90471 Nürnberg • http://www.grundig.com 72010 770 1500...
