MAIN MENU SETUP GUIDE
QT426 User Manual

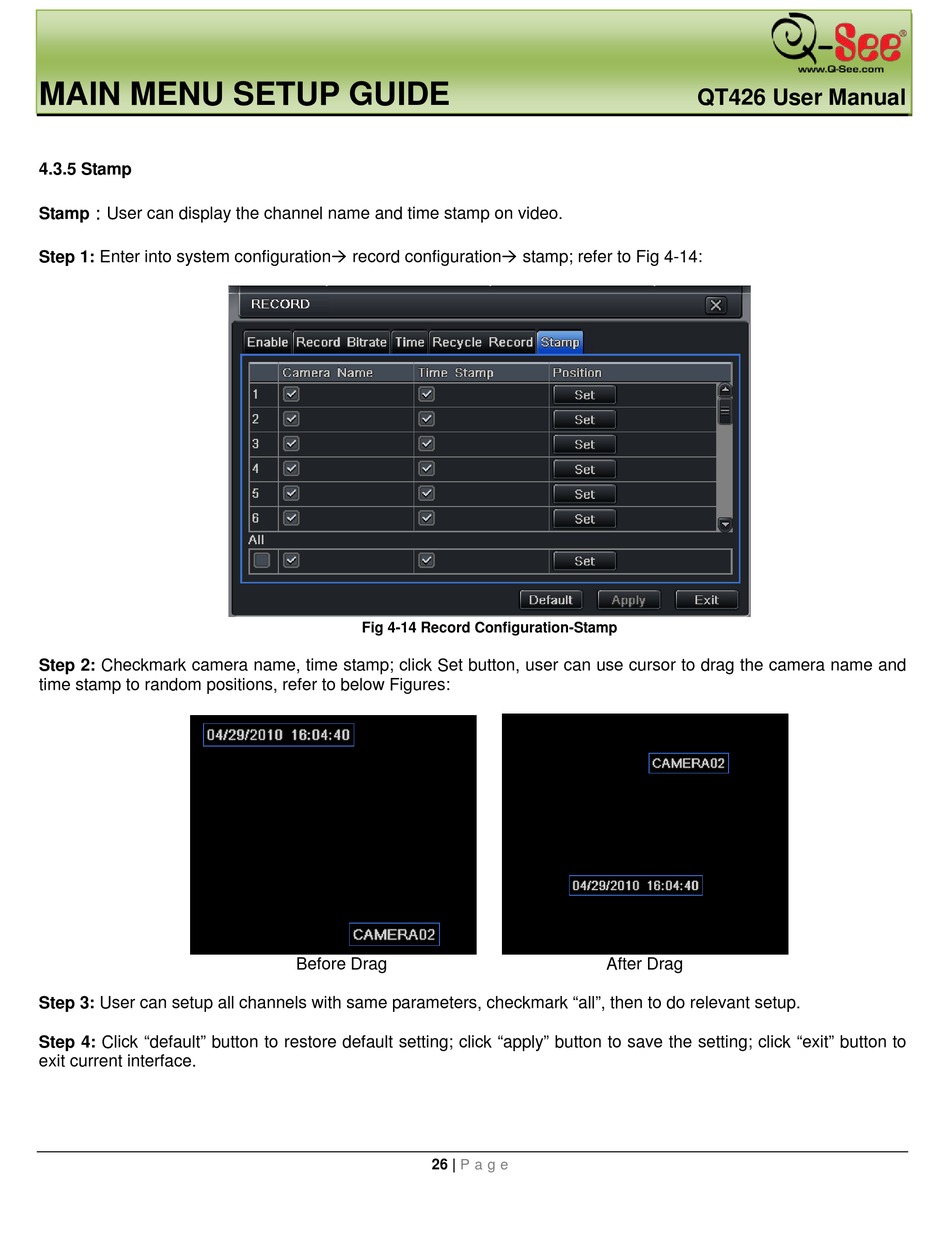

4.3.5 Stamp

Stamp：User can display the channel name and time stamp on video.
Step 1: Enter into system configuration record configuration stamp; refer to Fig 4-14:
Fig 4-14 Record Configuration-Stamp
Step 2: Checkmark camera name, time stamp; click Set button, user can use cursor to drag the camera name and
time stamp to random positions, refer to below Figures:
Before Drag After Drag
Step 3: User can setup all channels with same parameters, checkmark "all", then to do relevant setup.
Step 4: Click "default" button to restore default setting; click "apply" button to save the setting; click "exit" button to
exit current interface.
26 | P a g e
