MAIN MENU SETUP GUIDE

4. MAIN MENU SETUP GUIDE
Click right mouse or press ESC button on the front panel, the control bar will display on the bottom of the screen,
refer to Fig 4-1:
Click the icon beside the screen display mode, a channel select dialog will appear as shown below:
User can checkmark channels from 1-ch to 16-ch at random to display the live pictures. Then click
to confirm the setting.
Click the Menu
panel or remote control will also display the main interface.

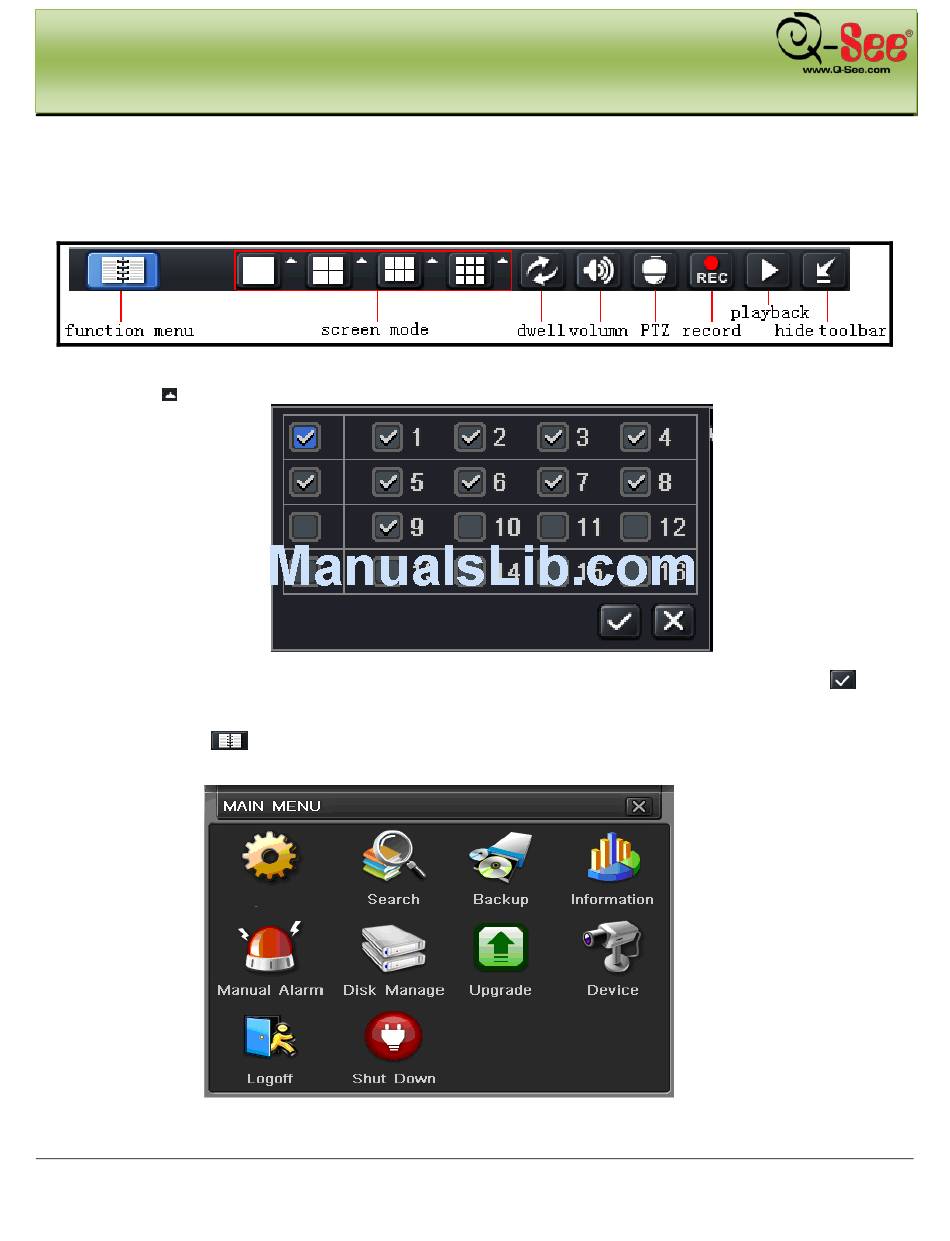

Fig 4-1 Main Menu Toolbar
button, the interface will pop-up as shown in Fig 4-2; press MENU button on the front
Setup
Fig 4-2 Main Menu
17 | P a g e
QT426 User Manual
button
