GETTING STARTED

2.3 Rear Panel Instructions

Rear Panel Interface

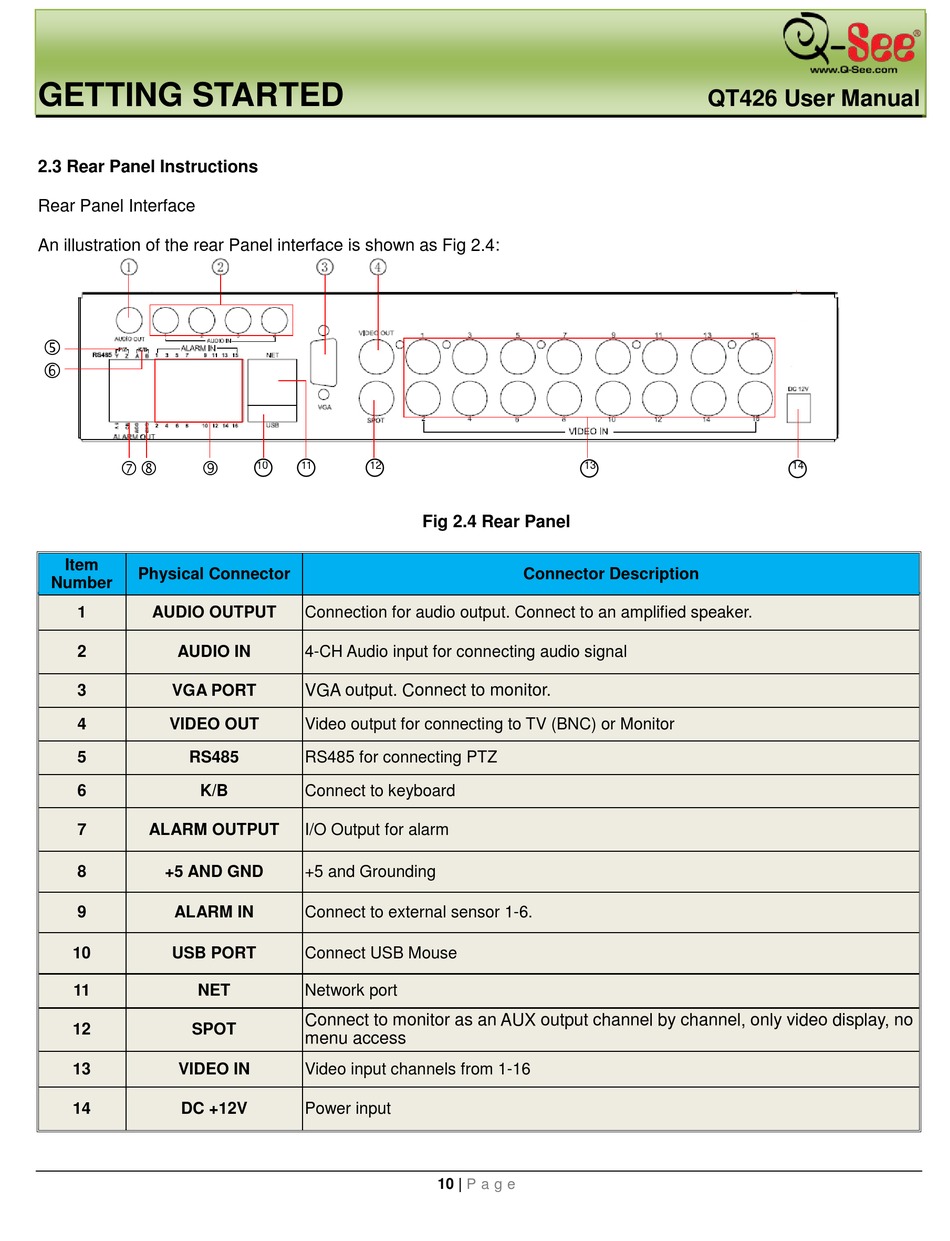

An illustration of the rear Panel interface is shown as Fig 2.4:


  
Item
Physical Connector
Number
1 AUDIO OUTPUT
2 AUDIO IN
3 VGA PORT
4 VIDEO OUT
5 RS485
6 K/B
7 ALARM OUTPUT
8 +5 AND GND
9 ALARM IN
10 USB PORT
11 NET
12 SPOT
13 VIDEO IN
14 DC +12V
10 11 12
Fig 2.4 Rear Panel
Connection for audio output. Connect to an amplified speaker.
4-CH Audio input for connecting audio signal
VGA output. Connect to monitor.
Video output for connecting to TV (BNC) or Monitor
RS485 for connecting PTZ
Connect to keyboard
I/O Output for alarm
+5 and Grounding
Connect to external sensor 1-6.
Connect USB Mouse
Network port
Connect to monitor as an AUX output channel by channel, only video display, no
menu access
Video input channels from 1-16
Power input
