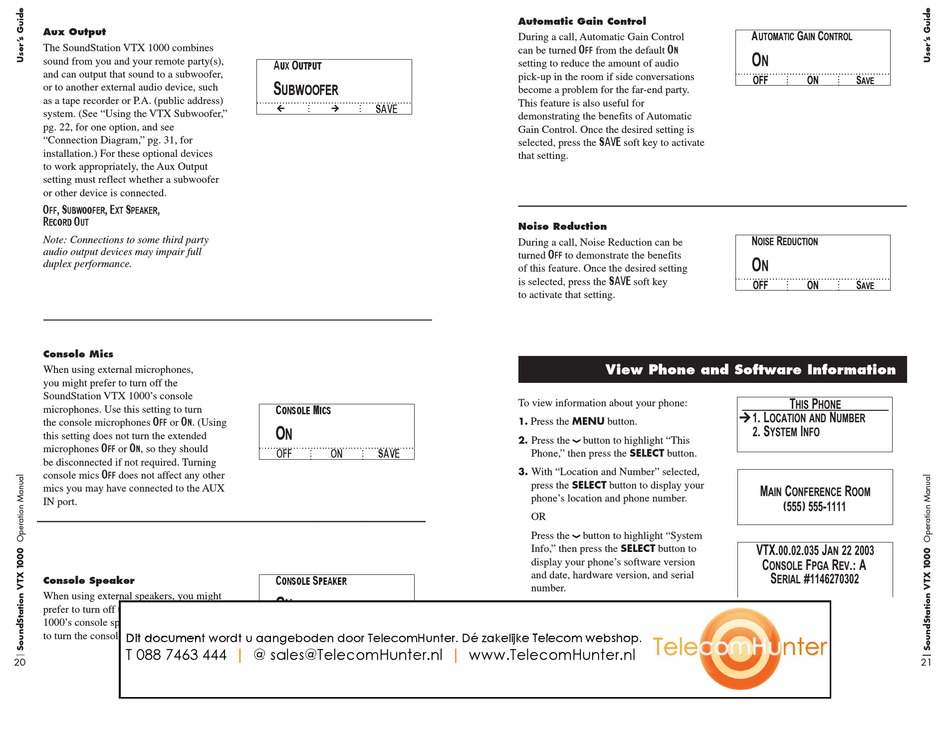

Aux Output
The SoundStation VTX 1000 combines
sound from you and your remote party(s),
and can output that sound to a subwoofer,
or to another external audio device, such
as a tape recorder or P.A. (public address)
system. (See "Using the VTX Subwoofer,"
pg. 22, for one option, and see
"Connection Diagram," pg. 31, for
installation.) For these optional devices
to work appropriately, the Aux Output
setting must reflect whether a subwoofer
or other device is connected.
Off, Subwoofer, Ext Speaker,
Record Out
Note: Connections to some third party
audio output devices may impair full
duplex performance.

Console Mics

When using external microphones,
you might prefer to turn off the
SoundStation VTX 1000's console
microphones. Use this setting to turn
the console microphones Off or On. (Using
this setting does not turn the extended
microphones Off or On, so they should
be disconnected if not required. Turning
console mics Off does not affect any other
mics you may have connected to the AUX
IN port.

Console Speaker

When using external speakers, you might
prefer to turn off the SoundStation VTX
1000's console speaker. Use this setting
to turn the console speaker Off or On.
