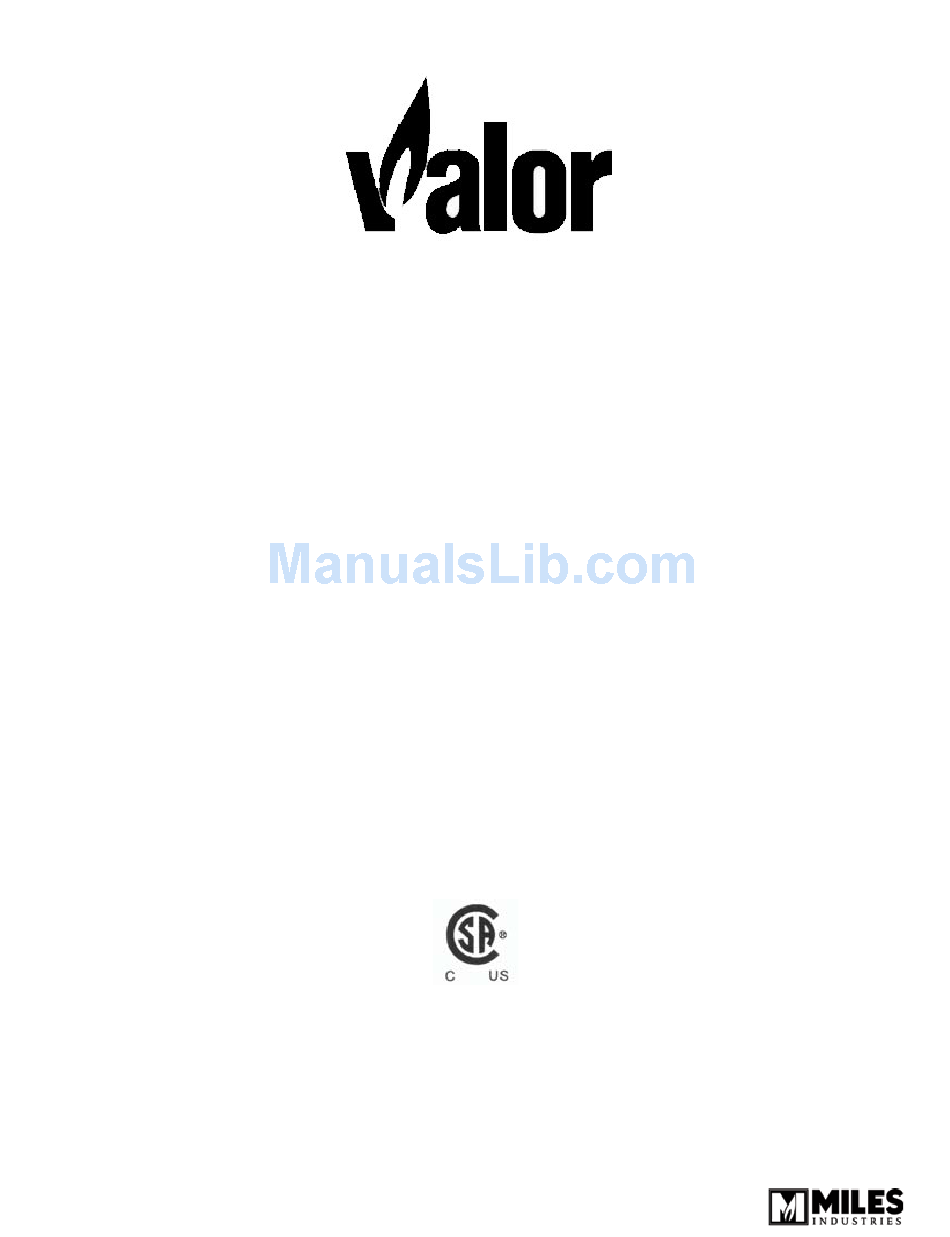

Electric Fireplace
DZ1GEC
Installation Instructions and
Owner's Manual
Please read this manual before installing and operating this heater.
This manual should remain with the homeowner.
Easy to install and operate
Operates with or without Heat
No pollution, No smoke, No ashes
CSA certified
Plugs into standard outlet
Miles Industries Ltd.
British Columbia, Canada
© 2006, Miles Industries Ltd. All rights reserved.
4001025-04
Advertisement
Table of Contents
Related Manuals for Valor DZ1GEC
Summary of Contents for Valor DZ1GEC
- Page 1 Electric Fireplace DZ1GEC Installation Instructions and Owner’s Manual Please read this manual before installing and operating this heater. This manual should remain with the homeowner. Easy to install and operate Operates with or without Heat No pollution, No smoke, No ashes...
- Page 2 We know that there are a lot of other brands that you could have purchased, and we appreciate that you have chosen a Valor product. Be assured that you have not only selected a superior heater, but also superior service.
-
Page 3: Table Of Contents
Table of Contents Safety Information Specifications, Dimensions & Clearances Testing the Unit Grounding Installation Installation with the Bolero Front Installation with the Adorn Front Installation with the Arch Fronts Operating Instructions Maintenance Spare Parts List Spare Parts Diagram Wiring Diagram Warranty... -
Page 4: Safety Information
Safety Information This appliance may become hot when in use. To avoid WARNING: IF THE INFORMATION IN THIS burns, do not let bare skin touch hot surfaces. Keep MANUAL IS NOT FOLLOWED EXACTLY, AN combustible materials, such as furniture, pillows, ELECTRICAL SHOCK OR FIRE MAY RESULT bedding, papers, clothes and curtains at least feet (0.9 CAUSING PROPERTY DAMAGE, PERSONAL... -
Page 5: Specifications, Dimensions & Clearances
Specifications, Dimensions & Clearances Specifications Power Supply: 120 V; 15-amp grounded, circuit Power Cord Length: 7’ (21. cm) Frequency: 60 Hz Heater BTU Output: 5000 BTUs Heater Power: 1500 W Net Weight: 4 lb / 15.4 kg ... - Page 6 Specifications, Dimensions & Clearances Suggested apperture dimensions for custom backing plate (not supplied). Dimensions shown include the bracket kit 210EFK. Height: 25-1/2” (648 mm) Width: 19-1/4” (489 mm) Depth: 11” (279 mm) minimum for mantels and cabinets 20-1/4” (514 mm) Trim for Bolero 19-1/4”...
- Page 7 Specifications, Dimensions & Clearances Adorn Front Bolero Front Windsor Arch w/no plate Windsor Arch w/plate Classic Arch w/plate...
-
Page 8: Testing The Unit
Testing the Unit Carefully remove the unit from the box. Prior to installation of the unit, test it to make sure it operates properly. Plug the unit’s power supply cord into a conveniently located 120-volt grounded outlet. Caution: The unit’s power supply cord must be connected to a properly grounded and protected 120- volt outlet. - Page 9 Installation Plan the power supply. If an existing grounded outlet is near the fireplace, the power cord can run along the front of the fireplace. If the cord is not long enough to reach the outlet, a grounded extension cord minimum AWG No. 14 and rated to a minimum of 1875 watts, may be used. If you plan to cut or drill a hole in the existing fireplace for wiring, it is strongly recommended that you hire a professional to undertake this step in order to prevent personal injury.
- Page 10 Installation 210EFK Electric Framing Kit The 210EFK kit is used on the electric fireplace to accommodate either one of the cast front: Bolero, Adorn, Windsor or Classic Arches. NOTE: Not all the pieces of this kit are used in each application. See the following pages which components of this kit are required for your specific application.
-
Page 11: Installation With The Bolero Front
Installation with the Bolero Front Equipment required: 1 Bolero Front Kit 541BPC 1 Framing Kit 210EFK Bolero Front Bolero framing kit Mount Rear Panel Rear mounting panel Assemble extension brackets RH side 2 fixing screws from the engine side panels ‘high set RH side support position... - Page 12 Installation with the Bolero Front Complete bracket assembly Assemble top panel rear view Change hooks on cast front Assemble front to fireplace rear view rear view...
-
Page 13: Installation With The Adorn Front
Installation with the Adorn Front Equipment required: 1 Adorn Front Kit 92ACF 1 Framing Kit 210EFK Adorn Front Mount Rear Panel Adorn framing kit Rear mounting panel 2 fixing screws from RH side the engine side panels Mount the Side supports ‘low’... - Page 14 Installation with the Adorn Front Complete bracket assembly Bend top panel’s tags upward Assemble top panel to fireplace Assemble front to fireplace rear view Fix cross bar support to fireplace front view looking up from the floor...
-
Page 15: Installation With The Arch Fronts
Installation with the Arch Fronts Equipment required: 1 Windsor Arch Kit 59AFB or 59AFP (w/plate) or 1 Windsor Arch Kit 549AFB or 59AFP (w/out plate) or 1 Classic Arch Kit 550CAP (w/plate) 1 Framing Kit 210EFK Windsor Arch w/plate Windsor Arch Classic Arch w/plate... - Page 16 Installation with the Arch Fronts Complete bracket assembly Bend top panel’s tags downward rear view Assemble top panel to fireplace rear view Assemble outer casting or backing plate to fireplace Hook inner casting to outer casting or backing plate...
-
Page 17: Operating Instructions
Operating Instructions The controls of the fireplace are located near the top of the unit behind a flip down panel / louver. Heater LED Plug your electric fireplace. Temperature Flip down the front panel / louver near the top of the Control Button unit to reveal the controls. - Page 18 Operating Instructions Operating by Remote Control Plug-in your electric fireplace. Infrared Ray Exit Make sure the unit’s main Power ON/OFF button is at the ON position! The remote control will NOT work if the main Power button is Indicator ON/OFF in the OFF position.
-
Page 19: Maintenance
Maintenance Warning: The unit must be unplugged from the power supply prior to any maintenance or cleaning in order to reduce the risk electric shock or fire. Light Bulb Replacement Procedure Warning: The halogen light bulbs in your unit can become extremely hot. Allow at least 10 minutes between turning off the unit and removing the light bulbs to avoid the accidental burning of the skin. - Page 20 Maintenance Slide the spinner back on its metal bracket by inserting its plactic tab back in the bracket. Repeat steps 2 to 6 for the second bulb. Replace the coal ember bed by gently pushing it down. Replacing the flame generation bulbs (25 W maximum) On each side of the glass panel, there are 2 thin black metal strips.
-
Page 21: Spare Parts List
Spare Parts List Valor Electric Fireplace Part Number Quantity Description DZ-RG Rear Glass (Mirror) DZ-BP1006 Back Panel (control board, wires, and switches) DZ-BH1006 Blower and Heating Element Assembly (cord and plug) BK25-10 Bulb Kit (25 W Halogen) for drum flame... -
Page 22: Spare Parts Diagram
Spare Parts Diagram DZ-BH1006 DZ1-SW1006 DZ1-LV1006 DZ1-PB DZ-BP1006 DZ-RG DZ-FB DZ-LGR FM24 BK25-10 DZ-CC 06GT-21-002 DZ-RGR R-15 BK35-10 DZ-CP DZ-RC DZ1-BS (4) DZ-TF DZ-CM1006... -
Page 23: Wiring Diagram
Wiring Diagram... -
Page 24: Warranty
Warranty This electric fireplace was inspected, tested and carefully packaged to minimize the chance of dam- age during shipment. If a part (excluding light bulbs*) within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or re- placed.
