3002499/02
OWNER'S GUIDE

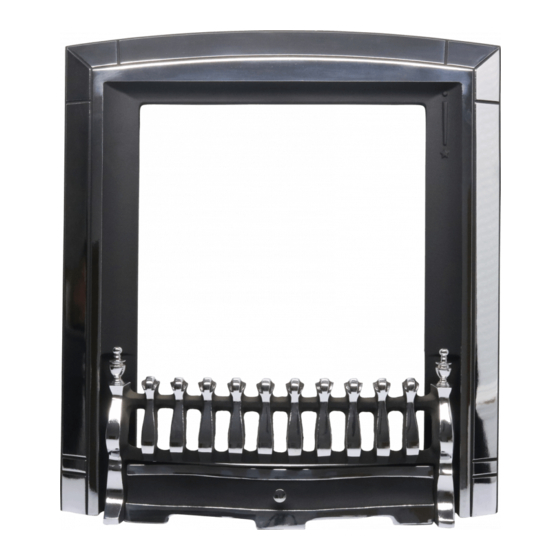

Dream 2
Dream 2
Dream 2
Dream 2
INSET LIVE FUEL EFFECT GAS FIRE
INCORPORATING THE
VALOR
CONTROL
Model 641
(GC No. 32-032-49)
WHEN CONVERTED USING CONVERSION KIT NO.0591301 THIS
APPLIANCE IS FOR USE WITH PROPANE GAS (G31)
THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE
REPUBLIC OF IRELAND (IE) ONLY.
This guide is intended to help you care for your Valor gas fire. Please read thoroughly
before using and keep for future reference
We trust that this guide gives sufficient details to enable your appliance to be operated
and maintained satisfactorily. However, if further information is required, our
Valor Technical Helpline will be pleased to help.
Please telephone 08706 061 065 (National call rates apply in the United Kingdom).
This guide to be left with the owner
© Valor Heating
Advertisement
Table of Contents
Related Manuals for Valor 641
Summary of Contents for Valor 641
- Page 1 THIS APPLIANCE IS FOR USE IN THE UNITED KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE) ONLY. This guide is intended to help you care for your Valor gas fire. Please read thoroughly before using and keep for future reference We trust that this guide gives sufficient details to enable your appliance to be operated and maintained satisfactorily.
- Page 2 BS EN ISO 9001 quality system accepted by the British Standards Institute. The Highest Standards Valor is a member of the Society of British Gas Industries which works to ensure high standards of safety, quality and performance. Careful Installation Valor is a CORGI registered company.
-
Page 3: Table Of Contents
OWNER’S GUIDE LIST OF CONTENTS SAFETY ........................... 4 APPLIANCE DIMENSIONS..................6 OPERATING YOUR FIRE ................... 7 The Oxysafe flame sensing & flue blockage safety system......... 7 To light the fire......................7 To turn the fire off ......................8 Lighting with a taper ..................... 9 CLEANING........................ -
Page 4: Safety
OWNER’S GUIDE S A F E T Y IF YOU SMELL GAS DON’T SMOKE EXTINGUISH ALL NAKED FLAMES DON’T TURN ELECTRICAL SWITCHES ON OR OFF TURN OFF THE GAS SUPPLY AT THE METER OPEN DOORS AND WINDOWS TO GET RID OF THE GAS IMMEDIATELY CALL THE GAS EMERGENCY SERVICE - SEE YOUR LOCAL TELEPHONE DIRECTORY Do have the fire installed by a competent person. - Page 5 OWNER’S GUIDE Do provide a suitable guard that complies with BS 6539 or 6778 for the protection of young children, the elderly and the infirm. Such a guard is also recommended for the protection of pet animals. (Although this fire conforms to all the applicable standards, it is a heating appliance and certain parts of its surface will become hot).
-
Page 6: Appliance Dimensions
Has a minimum natural gas input of 2.7kW (Gross) Has a minimum natural gas output of 1.06kW (Gross) Model 641 when converted using kit number 0591301 Has a maximum propane gas input of 6.7kW (Gross) Has a maximum propane gas output of 3.71kW (Gross) Has a minimum propane gas input of 4.3kW (Gross) -
Page 7: Operating Your Fire
OWNER’S GUIDE O P E R A T I N G Y O U R F I R E PLEASE NOTE When operating your fire for the first time, some vapours may be given off which may cause a slight odour and could possibly set off any smoke alarms in the immediate vicinity. -
Page 8: To Turn The Fire Off
OWNER’S GUIDE 3. If low heat is required, release the button. The button will automatically spring up to the low heat position shown in figure 2 (See note i below). 4. For a higher heat level slide the button upwards. The burner flames and heat output will gradually increase until the button reaches the high heat position shown in figure 2. -
Page 9: Lighting With A Taper
OWNER’S GUIDE Lighting with a taper See figure 3. In the unlikely event of failure of the ignition spark, the pilot can be lit by a taper or long spill. Insert the taper or spill alongside of the left side wall of the firebox and operate the slide control as described previously. -
Page 10: Cleaning
OWNER’S GUIDE C L E A N I N G To maintain the high performance and quality finish of your fire please follow these guidelines: • Before attempting to clean the fire, please remember to turn off the fire and wait for the appliance to cool. -
Page 11: Fuel Bed Refitting
OWNER’S GUIDE F U E L B E D R E F I T T I N G Place the ceramic base coal in the burner compartment. The bottom rear face of the coal should rest on the angled ledges at the back of the burner compartment. - Page 12 OWNER’S GUIDE Install the 12 loose coals as follows. The underside of each coal is marked with a letter ‘A’ to ‘L’ and an arrow. The coals should be positioned so that the arrows always point towards the back of the firebox.
- Page 13 OWNER’S GUIDE Hold coal ‘D’ upright with the arrow pointing to the top. Locate coal ‘D’ as shown in figure 9. Hold coal ‘E’ upright with the arrow pointing to the top. Locate coal ‘E’ as shown in figure 10. Hold coal ‘F’...
- Page 14 OWNER’S GUIDE Locate coals ‘G’ to ‘K’ so that they are firmly seated in the valleys in the coal base. Hold coal ‘G’ upright with the arrow pointing to the top. Locate coal ‘G’ as shown in figure 12. Figure 12. Third row “Coal G” Hold coal ‘H’...
- Page 15 OWNER’S GUIDE Hold coal ‘J’ upright with the arrow pointing to the top. Locate coal ‘J’ as shown in figure 15 Hold coal ‘K’ upright with the arrow pointing to the top. Locate coal ‘K’ as shown in figure 16 Hold coal ‘L’...
-
Page 16: Maintenance
OWNER’S GUIDE M A I N T E N A N C E Battery replacement This appliance requires one 9V PP3 Ever Ready Silver Seal (or equivalent) battery. To replace the battery remove the bottom front cover casting. Fit the new battery firmly to the connections on the ignition block (See figure 18). -
Page 17: Servicing
Servicing can be carried out either by a Valor Service engineer or a CORGI registered installer. • If you require your fire to be serviced, please contact Valor Service on 08706 090 To help us quickly help you, please try to have the following information available before you contact us: a) Your Post Code. - Page 18 OWNER’S GUIDE USEFULL TELEPHONE NUMBERS General advice about gas and your gas fire: VALOR TECHNICAL HELPLINE 08706 061 065. To report faults or arrange for your fire to be serviced: VALOR SERVICE 08706 090 081. For sales or product information: VALOR SALES 08706 061 067.
