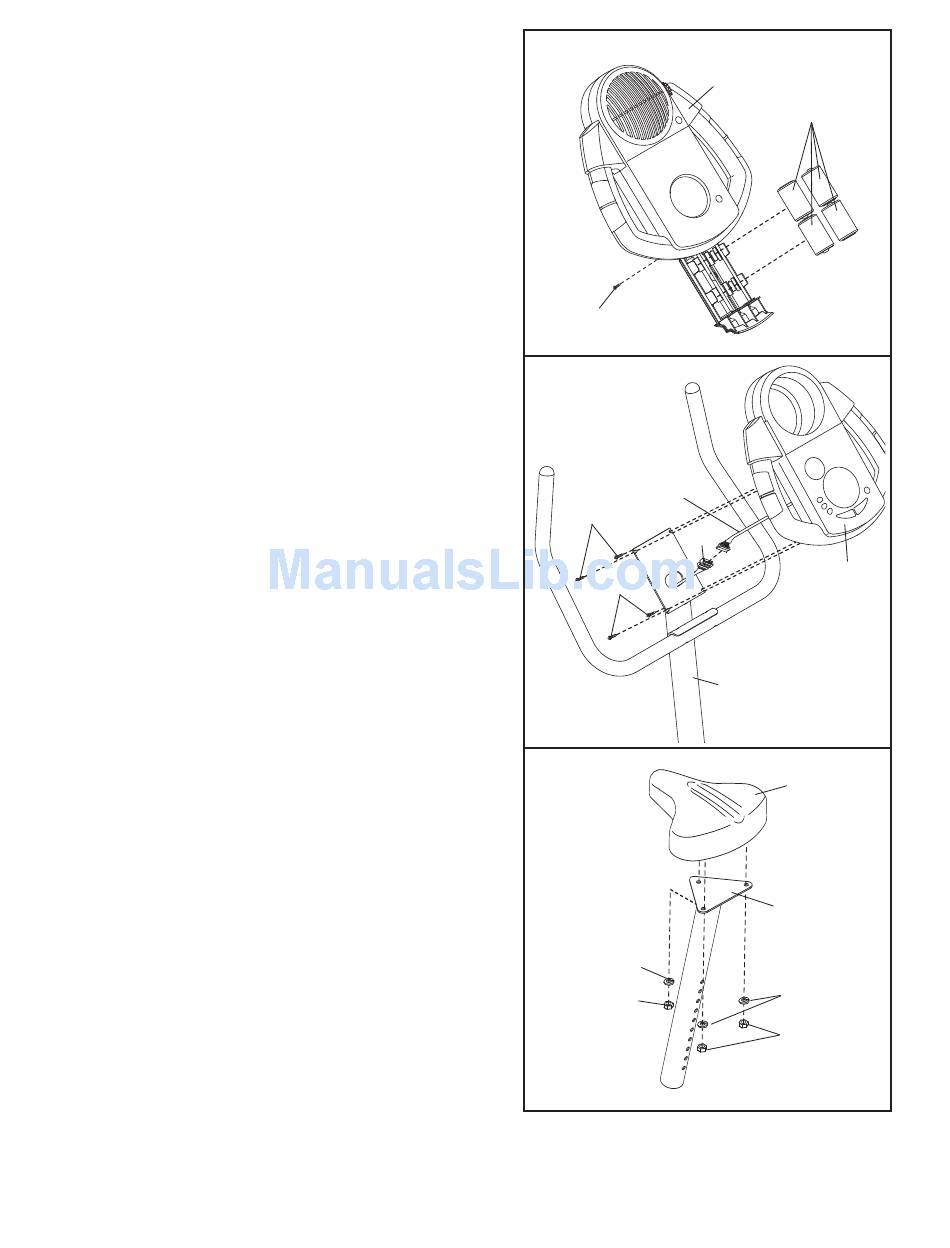

5. The Console (16) requires four 1.5V "D" batteries;
alkaline batteries are recommended. Remove the indi-
cated screw from the battery drawer, and pull the bat-
tery drawer open. Insert four batteries into the battery
drawer; make sure that the batteries are oriented as
shown by the markings inside of the battery draw-
er. Close the battery drawer and reattach the screw.
6. Hold the Console (16) near the Upright (13). Connect
the console wire to the Upper Wire Harness (36).
Insert the excess console wire and Upper Wire
Harness (36) down into the Upright (13). Next, attach
the Console (16) to the Upright with four M5 x 12mm
Screws (49). Be careful to avoid pinching the wires.
7. Attach the Seat (12) to the Seat Post (5) with three M8
Flat Washers (51) and three M8 Nylon Locknuts (10).
Note: The Flat Washers and Nylon Locknuts may be
preattached to the underside of the Seat.
