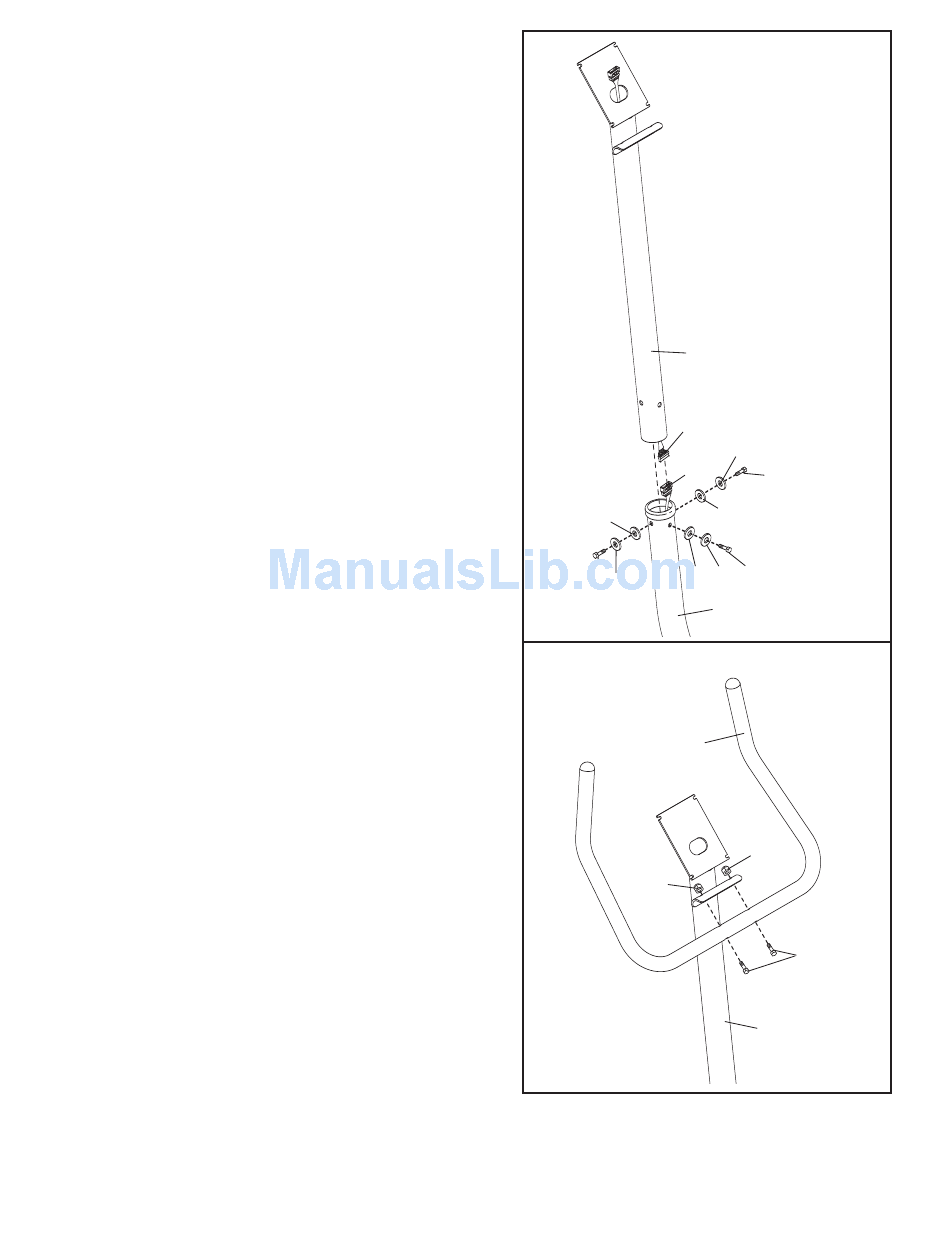

3. Whilst another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the Lower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36) out
of the top of the Upright (13), and insert the Upright into
the Frame. Be careful to avoid pinching the Wire
Harnesses. Next, attach the Upright with three M8 x
15mm Screws (45), three M8 Lock Washers (54), and
three M8 Curved Washers (41).
4. Insert the Handlebar (15) into the Upright (13). Attach
the Handlebar to the Upright with two 3/8" x 38mm
Bolts (50) and two 3/8" Nylon Locknuts (33).
3
41
54
45
4
33
5
Be careful to avoid
pinching the wire
harnesses whilst
inserting the
Upright.
13
36
54
55
45
41
45
41 54
1
15
33
50
13
