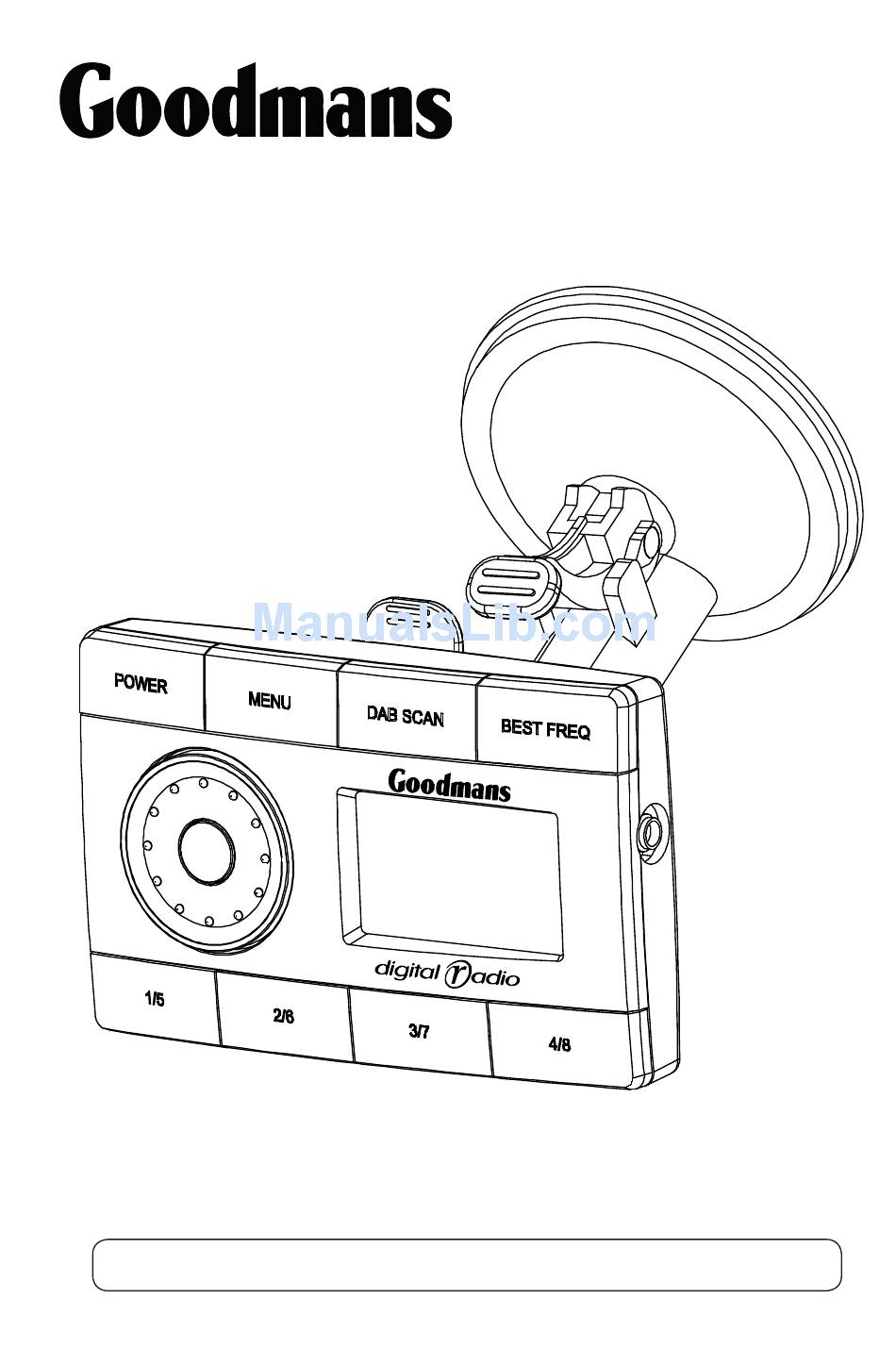

Page 1: User Guide
GFMTDAB10 In-Car DAB Adaptor User Guide IMPORTANT: Please read all instructions carefully before use and keep for future use... -
Page 2: Safety Is Important
Introduction Thank you for purchasing this Goodmans In Car DAB Adaptor. Not only does it receive DAB radio stations and transmit them to your In Car Audio system using an in-built FM transmitter,you can also connect an auxiliary device to it. -
Page 3: Table Of Contents
What’s in the box? What’s in the box DAB Transmitter Manual Contents 01 Your In-Car DAB adaptor 02 Get Going 03 Daily Use Troubleshooting Guide ... 05 Specifications 06 Warnings 07 Guarantee ”The antenna shown may differ slightly to the one supplied” Windscreen Mount Antenna 12/24V- 5V DC In Car Adaptor... -
Page 4: Your In-Car Dab Adaptor
Your In Car DAB Adaptor Power Button Select Button Scroll Wheel AUX input Connector Menu DAB Scan Best Frequency for Button Button FM Transmission Power Antenna Connector Connector Graphical LCD Display PRESET Buttons... -
Page 5: Get Going
Get Going Install the Antenna Select a suitable location for the antenna. This can either be at one side of the front windscreen, as shown, or a suitable non-opening rear window. Note that the antenna cable is 2.0m in length. For best results, position the aerial wires 2-3 cms from the edge of the glass. - Page 6 When the unit powers up for the first time, or after a factory RESET, it will perform a full scan for DAB stations after displaying the best FM frequency. Tune your car radio to the frequency shown. V1.0 GFMTDAB10 87.60 SCAN Found : 15...
-
Page 7: Daily Use
Daily Use Daily Use Switching On When the unit is plugged into the car supply it switches on automatically. Listening to DAB If no DAB stations have been previously stored, the unit will perform a full scan. The following screen will be displayed. A bar graph indicates the progress of the scan –... - Page 8 Daily Use Storing DAB Presets You can pre-set up to 8 DAB stations for easy access as follows. Tune to the station you wish to preset. Classic Press and Hold the Preset Button 1 to 4. The screen will display “STORED.” STORED To store presets 5 to 8, after tuning to the station you wish to store, press the...
-
Page 9: Changing The Dab Station Information
Daily Use Changing the DAB station Information It is possible to change the information displayed on the second line of the display when listening to a DAB station. There are 6 different types of information available as listed below: They are selected by pressing the menu button. Station Name –... -
Page 10: Aux Function
Daily Use AUX Function To listen to an external music source instead of DAB, connect an audio cable to the AUX IN socket on the side of the DAB Adaptor. Then press and hold the MENU button. AUX IN To return to DAB mode, press and hold the MENU button once more. BEST FREQUENCY Function The unit will automatically scan and select the best frequency for the built in FM transmitter for the first time of use and after a factory reset . - Page 11 To turn the unit on, press and hold the POWER button. The unit will start up by displaying the start-up screen which includes the software version number on the top left of the display. V1.0 GFMTDAB10 RDS Display The unit not only transmits audio to your car radio using the built in FM transmitter, but also sends additional information to the display on your car radio using RDS.
-
Page 12: Troubleshooting Guide
Troubleshooting Guide PROBLEM Hissing noise or crackling in the background DAB station cannot be heard Need extra help? Don’t worry we are just at the other end of the phone. If you are experiencing problems using your new product, before returning it to the retailer, just call 0871 230 1777. -
Page 13: Specifications
Specifications In-car DAB radio adapter with full DAB Band III reception. Compliant with ETS 300 401 and capable of decoding all DAB transmission modes 1-4. Frequency range FM transmit range Input connectors Presets LCD display In-car power supply Power consumption Dimensions Weight IMPORTANT:... -
Page 14: Warnings
Warnings WEEE This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (Waste Electrical and Electronic Equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances. Sound levels Your hearing is very important to you and to us, so please take care when using this DAB Radio. -
Page 15: Guarantee
Guarantee The DAB Radio is guaranteed for twelve months from the date of original purchase. If there are any defects due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase on hand. The guarantee is subject to the following provisions: •... - Page 16 Helpline 0871 230 1777 www.thesupportsite.co.uk...
