Summary of Contents for Goodmans GCE-302

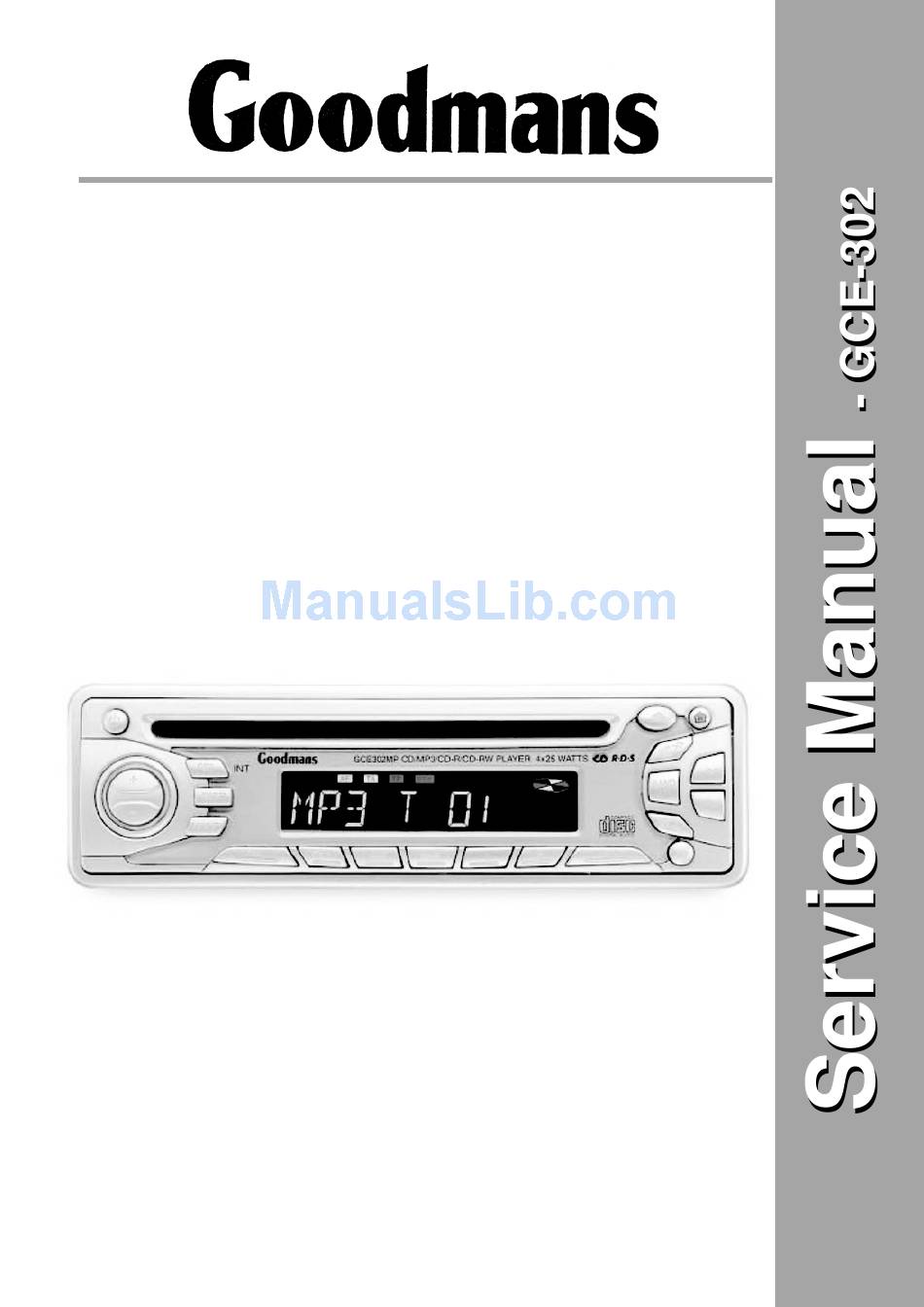

- Page 1 GCE-302...
-
Page 2: Filter Box
ITEM CODE DESCRIPTION SYMBOL 001-0000S-B90 P.C.B FILTER BOX 001-3900S-100 P.C.B CD-3900RDS/MP3 MAIM BOARD 50153110 002-01140-A00 I.C LA1140 IC201 002-03370-A09 I.C LA3370 IC301 002-07035-T00 I.C KIA7035 002-08802-S00 I.C RS8802-004 IC401 002-1558Q-A05 I.C TDA1558Q 002-1923F-H07 I.C BU1923 IC403 002-7313D-B06 I.C TDA7313D IC601 002-75823-H00 I.C LC75823 IC501 002-78L05-F00 I.C KIA78L05... - Page 3 ITEM CODE DESCRIPTION SYMBOL 009-0201V-A02 TUNER (FM) CCT-201V 010-A0222-000 CHOCK COIL 22mH 011-A010F-200 RES .1/2W ±5% 1 OHM R61.39 011-A100D-200 RES. 1/4W ±5% 10 OHM R163.164 011-A100A-200 RES .1/16W ±5% 10 OHM R77.98 R26.38.55.81.95.*32.D2. 011-A102A-200 RES .1/16W ±5% 1K OHM R143.152.153 011-A103A-200 RES .1/16W ±5% 10K OHM...
- Page 4 ITEM CODE DESCRIPTION SYMBOL 012-C107C-300 ELEC CAP 100uF 16V 5x11mm C98.74.99.57.55 012-C107B-300 ELEC CAP 100uF 10V 5x11mm C202 012-C224F-300 ELEC CAP 0.22uF 50V 5x11mm C79.93.94.95.96 012-C225F-300 ELEC CAP 2.2uF 50V 5x11mm 012-C335F-300 ELEC CAP 3.3uF 50V 5x11mm C27.22.104 012-C336C-300 ELEC CAP 33uF 16V 5x11mm 012-C474F-300 ELEC CAP...
- Page 5 ITEM CODE DESCRIPTION SYMBOL 029-B0000-000 ANTENNA JACK D.SCREW 032-E0700-025 RAINBOW WIRE #26 2Pin 70mm 5-70-5 A-A.front to amp pcb 033-S1000-BN0 1P SHIELD WIRE #28 100mm ANT WIRE 033-S1200-BK0 1P SHIELD WIRE #28 120mm FMOSC WIRE 034-A1612-005 ISO 16P W/WIRE 12P H/P 035-B0400-BK1 JUMPER WIRE #20 40mm BLACK 035-E0500-RD1 JUMPER WIRE #26...
- Page 6 ITEM CODE DESCRIPTION SYMBOL 035-F1000-BE1 JUMPER WIRE #28 100mm Blue FRONT PCB 035-F1000-BK1 JUMPER WIRE #28 100mm Black KEY2 - MAIN PCB KEY2 035-F1000-RD1 JUMPER WIRE #28 100mm RED FRONT PCB 035-F1000-YW1 JUMPER WIRE #28 100mm Yellow A-MAIN PCB KEY1 035-F1600-BE1 JUMPER WIRE #28 160mm Blue 035-F1600-VT1 JUMPER WIRE #28...
- Page 7 ITEM CODE DESCRIPTION SYMBOL 223-1888A-E06 SIDE BRACKET RGI T0.6 (1888 COM) 71888380 225-09007-400 CUSHION BOTTOM 81100304 227-30010-EA5 CASE CUSHION SPONGE T15mm (3001 COM) 227-30050-E60 CASE CUSHION "B" SPONGE (3001 COM) 93005028 227-39080-L50 LEFT SPONGE SOFT SPONGE WHITE T=5.0mm 227-39080-R50 RIGHT SPONGE SOFT SPONGE WHITE T=5.0mm 227-39080-M30 MIDDLE...
- Page 8 ITEM CODE DESCRIPTION SYMBOL 319-00000-010 SILICA PACK 402-3906A-1BK BASE PANEL PC BLACK 402-3908B-1BK NOSE PIECE ABS BLACK 402-3908C-3BK NOSE PIECE BACK PC BLACK 402-3003S-4BK NOSE PIECE CASE P.P BLACK 413-3908A-2CR LCD WINDOW PMMA (CLEAR) 414-3900A-2WE CD GUIDE REFLECTOR PMMA (MILK WHITE) CD-3900COM 414-3908D-2BE REFLECTOR RING PMMA ( BLUE)
- Page 9 ITEM CODE DESCRIPTION SYMBOL 463-0000C-4BK TILTER & FUSE BOX P.P BLACK 483-3908A-1BK ORNAMENT RING ABS (BLACK)
