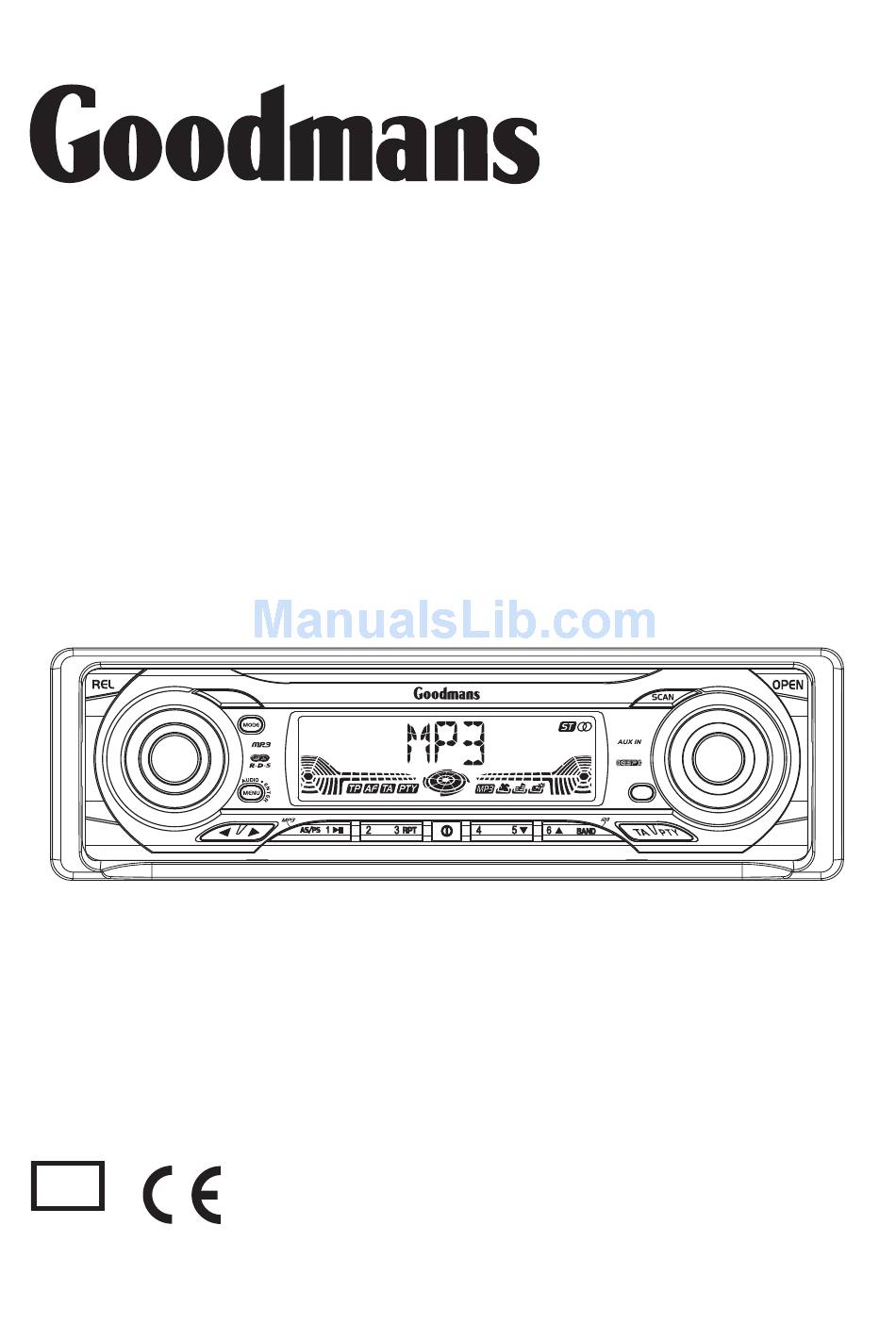

    GCE7356MP3 In Car Radio Compact Disc player INSTRUCTION MANUAL DISP 021517...

  • Page 2: Table Of Contents

    CONTENTS INSTALLATION USING THE DETACHABLE FRONT PANEL WIRING IDENTIFICATION LOCATION OF CONTROLS AND FUNCTIONS GENERAL OPERATION RDS OPERATION CD OPERATION MP3 OPERATION COMPACT DISCS SPECIFICATIONS SAFETY TROUBLE SHOOTING IMPORTANT Do not forget to remove the Transit Screws on top of the unit before installing into your vehicle.
  • Page 3 ACCESSORIES When first unpacking your new in Car Radio CD Player, please check first that the package contains all of the items below. If something is missing, contact the store where you purchased the player. Owner’s Manual and Connection Diagram Spare Fuse 2 x Release key For use when ISO plugs are not used on your vehicle...

  • Page 4: Installation

    INSTALLATION Before finally installing the unit, carry out a sound check. If high distortion or intermittent sound is experienced, it is possible that the wiring to the car's electric is poor, or that the battery needs recharging. Use only the parts included with the unit to ensure a safe and secure installation. Consult with your dealer if the installation requires the drilling of holes or other modifications to the vehicle.
  • Page 5 INSTALLATION Removing the unit a. Trim Ring b. Insert fingers into the Trim Ring as shown and carefully remove. c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

  • Page 6: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL Removing The Detachable Front Panel RELEASE 1. Turn the Power off. BUTTON 2. Press the Panel Release Button. 3. Remove the front panel Attaching the Detachable Front panel 1. Insert the right side of the front panel into the main unit.

  • Page 7: Wiring Identification

    WIRING IDENTIFICATION ANTENNA SOCKET ANTENNA CABLE FUSE 20-PIN AUDIO/POWER HARNESS RCA-TO-RCA CABLES (not supplied) WHITE REAR LINE OUT GREY (Not Supplied) CONNECTOR (See Figure 2) Figure 2 ISO CONNECTOR 4PIN+8PIN FEMALE WITH MALE TERMINAL ISO CONNECTOR WIRING CHART WIRE COLOR FUNCTION / LABEL BATTERY (+) YELLOW...

  • Page 8: Location Of Controls And Functions

    LOCATION OF CONTROLS AND FUNCTIONS DISP 19) Band/ID3 Button 1) Power Button 7) AF Button 13) Disc Shuffle Button 2) Volume Button 8) LCD Display 14) Folder Down 20) Radio Scan Button Button 3) Display Button 9) AMS/MP3 Search 15) Folder Up Button 21) Mode Button Button 4) Menu/Enter...

  • Page 9: Lcd Display

    LOCATION OF CONTROLS AND FUNCTIONS LCD DISPLAY 1. STEREO : Radio stereo indicator 2. TP RDS Traffic programme indicator 3. AF RDS Alternative frequency indicator 4. TA RDS Traffic announcement indicator 5. PTY : RDS Programme type indicator 6. MP3 : Mp3 disc playing indicator 7.
  • Page 10 GENERAL OPERATION POWER BUTTON Press the power button to turn on/off the unit. MENU BUTTON Press the MENU button to access the following settings: A. AUDIO MENU Press the MENU button for less than 1 second to open the Audio menu. Press the MENU button repeatedly to navigate through the following functions: VOLUME (VOL) ->...
  • Page 11 GENERAL OPERATION - DSP (PRESET EQUALIZER) DSP OFF -> FLAT -> CLASSIC -> POP -> ROCK When DSP OFF is selected, the Bass & Treble can be adjusted (See Audio Menu). - LOUD When Loud ON is selected, bass output will be increased. - DX Use this mode to change between Local and Distant (-DX) tuning mode.

  • Page 12: General Operation

    GENERAL OPERATION RESET BUTTON In case of abnormal operation, use a pencil tip or other non-metallic object to press the reset button located behind the front panel. The reset button should be activated in the following circumstances: - Initial installation of the unit when all wiring is completed. - If the control function buttons do not operate.

  • Page 13: Rds Operation

    RDS OPERATION AF BUTTON(ALTERNATIVE FREQUENCIES) When pressed briefly, AF switching mode is selected. When AF switching mode is selected, the radio will check the signal strength of the AF constantly. When pressed for 2 seconds, it will activate the regional mode. Note: To check whether an alternative frequency is a real alternative for the current station, the radio compares PI codes (programme identity).
  • Page 14 RDS OPERATION OVERVIEW OF THE RDS FUNCTION Radio Data System (RDS) is a broadcasting service that allows FM stations to send additional digital information along with the regular radio program signal. Your car stereo offers you a variety of services. Here are just a few: - PI (Program identification) It is a code that identifies RDS stations;...

  • Page 15: Cd Operation

    CD OPERATION LOADING THE CD Press the Panel Open Button to lower the front panel. Insert a CD into the CD slot. The disc will be automatically loaded and playback will start. CD EJECT BUTTON Press this button to eject the CD. Since this button is located behind the front panel, fold down the panel before accessing this button.

  • Page 16: Mp3 Operation

    MP3 OPERATION Notes: - An MP3 directory is shown in this manual as - Sampling Frequencies support : 32KHz, “Folder”, and an MP3 file is shown as “Track”. 44 KHz, 48KHz. - Maximum length of file name : 28 characters. - Bit Rates support : 64 - 320KHz including VBR.

  • Page 17: Compact Discs

    COMPACT DISCS To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges. Fingerprints and dust should be carefully wiped off the disc’s recorded surface with a soft cloth before use.

  • Page 18: Specifications

    SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ratio RADIO SECTION 87.5 - 108 Mhz Frequency Range 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity...

  • Page 19: Safety

    SAFETY SOUND LEVELS Your hearing is important to you and to us so please take care when operating this equipment. It is strongly recommended that you follow the guidelines in order to prevent possible damage to, or loss of hearing. Over time your hearing will adapt to continuous load sounds and will give the impression that the volume has in fact been reduced.

  • Page 20: Trouble Shooting

    TROUBLE SHOOTING Before going through the check list, first refer back to the connection and operating procedures. Most problems that you may encounter with your unit are covered in the list below. Should any problems persist after you have checked this list, please contact our Customer Helpline on 0871 230 1777 for further assistance.
