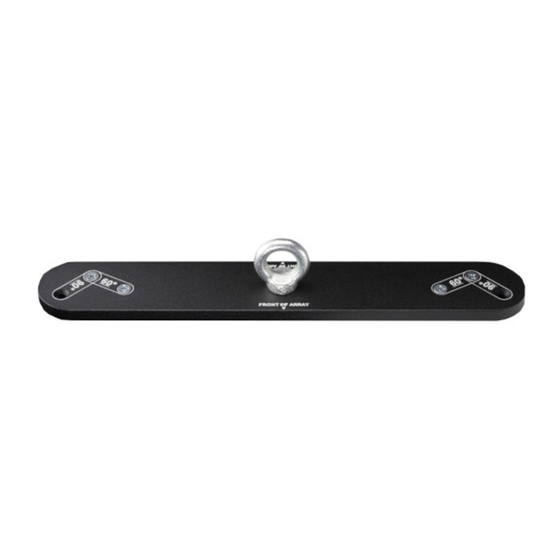

CB5 Array Rigging Kit
The CB5 Array Rigging Kit features array brackets and hardware that allow you to array any Zx5 system. Its assembly is
quick and easy with the hardware already provided on your Zx5 Loudspeaker.

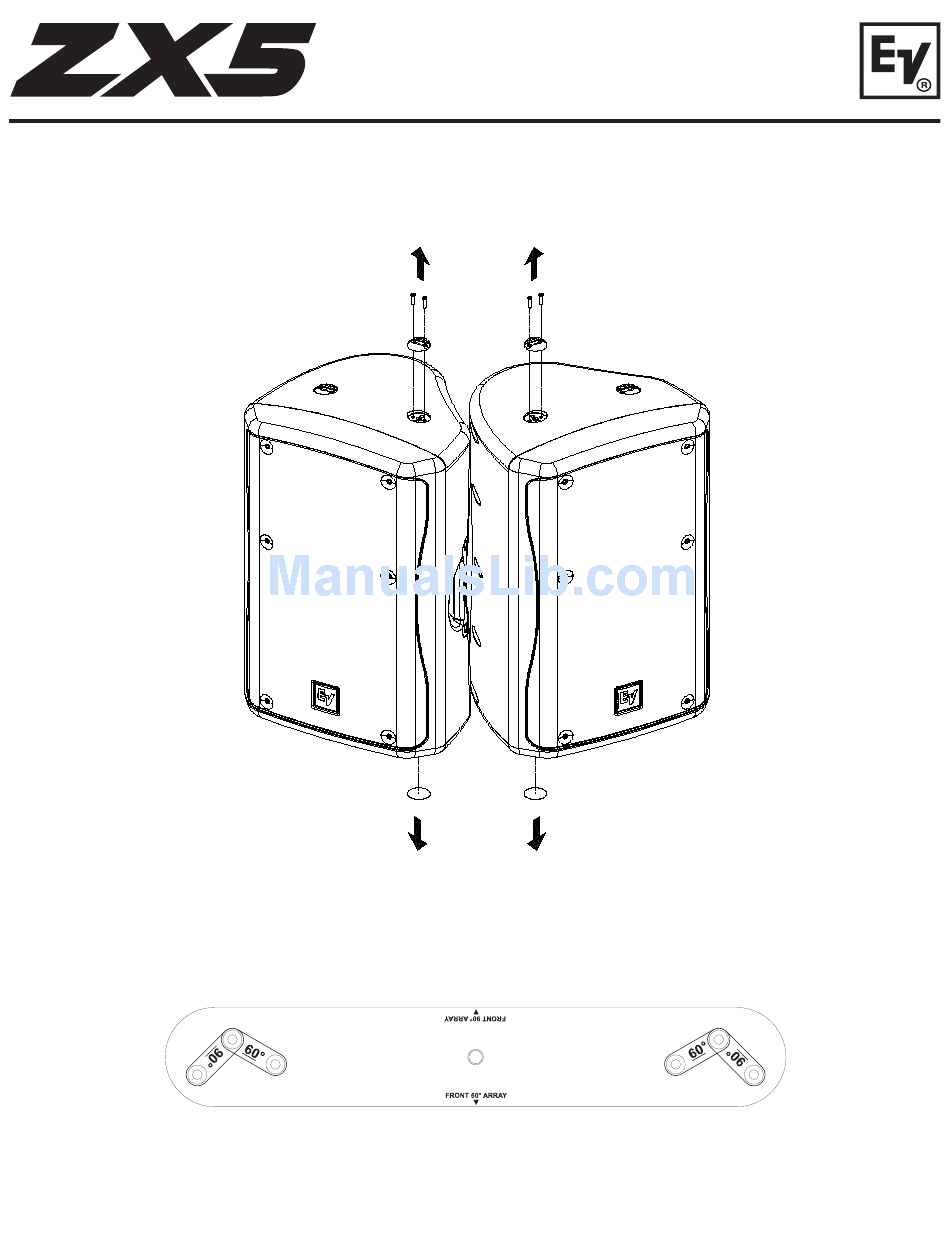

Step 1: Remove Single-Stud Fittings/Decals
Step 2: Identify Array Angle Desired
Remove original Single-Stud Fittings by removing the four screws shown.
Remove the Bottom Decals with the use of a flat-head screwdriver.
Using the identification on the top of the Array Brackets, orient the Bracket
(Item A) to achieve the desired array angle. Eg. For a 60° splay, rotate the
bracket so that the "FRONT 60° ARRAY" points towards the front of the
ZX5 array.
Array Rigging Kit
Installation Instructions
CB5
Advertisement
Table of Contents
Related Manuals for Electro-Voice CB 5
Summary of Contents for Electro-Voice CB 5
- Page 1 Array Rigging Kit Installation Instructions CB5 Array Rigging Kit The CB5 Array Rigging Kit features array brackets and hardware that allow you to array any Zx5 system. Its assembly is quick and easy with the hardware already provided on your Zx5 Loudspeaker. Step 1: Remove Single-Stud Fittings/Decals Remove original Single-Stud Fittings by removing the four screws shown.
- Page 2 If the bottom bracket for a 2-speaker array pull-up Zx5 speakers are suspended, Electro-Voice® strongly point. Please consult the system manual for recommends that the system be inspected at least once a year.
