Goodman SSZ 14 SEER Technical Manual

Ssz 14 seer split system heat pumps
Hide thumbs Also See for SSZ 14 SEER:

Advertisement

Table of Contents

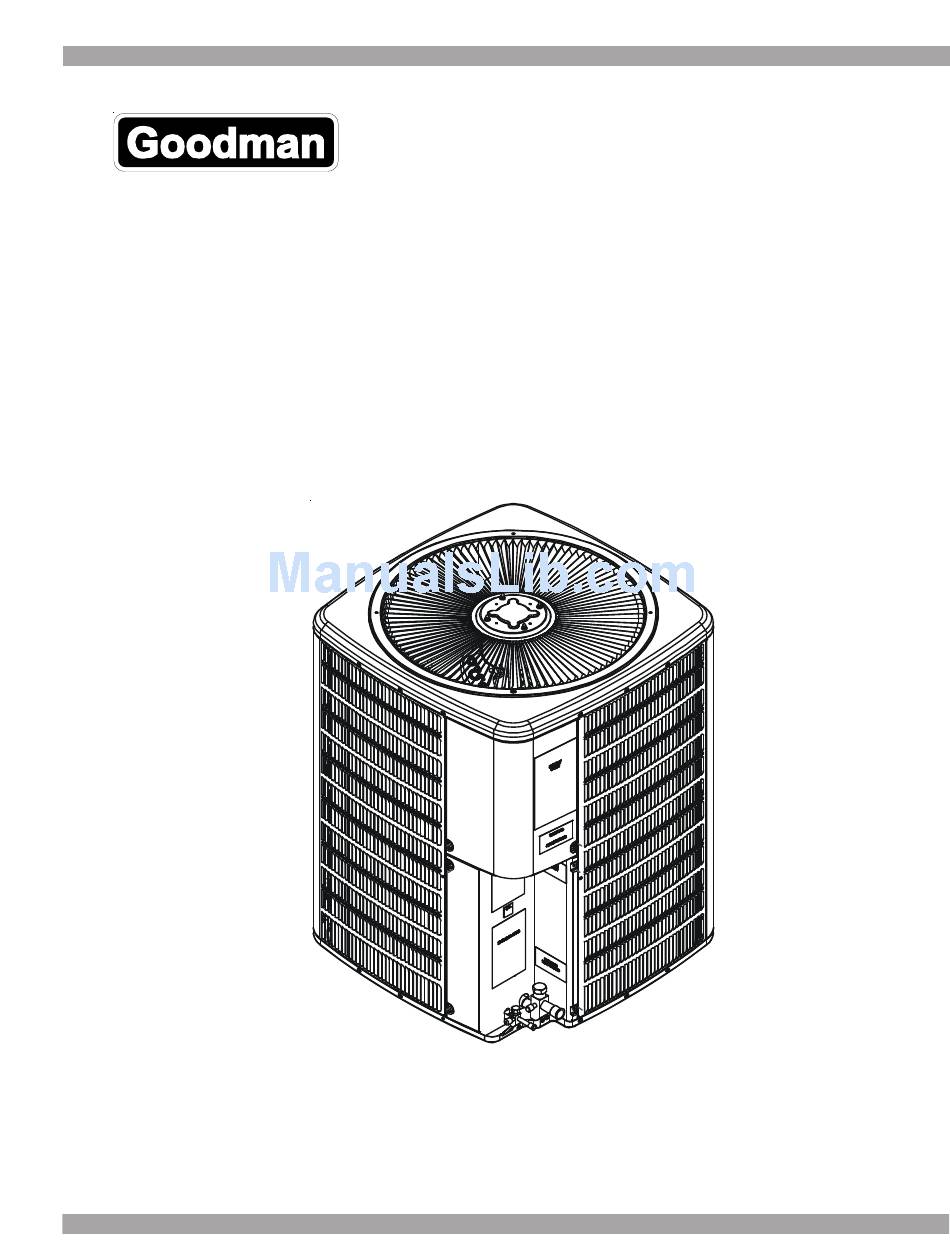

Split System Heat Pumps
•
Refer to Service Manual RS6200005 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only. Goodman does
not assume any responsibility for property damage or personal injury due to improper service
procedures or services performed by an unqualified person.
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU
TECHNICAL MANU AL
TECHNICAL MANU
®
SSZ 14 SEER
Copyright © 2006 - 2007, 2009-2011 Goodman
Manufacturing Company, L.P.
AL
AL
AL
AL
RT6213005r7
November 2011

Advertisement

Table of Contents
loading

Related Manuals for Goodman SSZ 14 SEER

Summary of Contents for Goodman SSZ 14 SEER

  • Page 1 Copyright © 2006 - 2007, 2009-2011 Goodman TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU ® SSZ 14 SEER Manufacturing Company, L.P. RT6213005r7 November 2011...
  • Page 2 S: Goodman (High Feature Set Models) Product Family S: Split System Product Type C: Condenser R-22 X: Condenser R-410A H: Heat Pump R-22 Z: Heat Pump R-410A SEER SEER Rating HIGH VOLTAGE! WARNING WARNING Disconnect ALL power before servicing or installing this unit. Multiple power sources may be present.
  • Page 3 PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. * Indicates minor revision & is not used for order entry or inventory management The United States Environmental Protection Agency (“EPA”) has issued various regulations re- WARNING WARNING...

  • Page 4: Product Design

    PRODUCT DESIGN SSZ14 models are available in 1 1/2 through 5 ton sizes and use R-410A refrigerant. They are designed for 208/230 volt single phase applications. The condenser air is pulled through the condenser coil by a direct drive propeller fan. This condenser air is then dis- charged out of the top of the cabinet.
  • Page 5 HEAT PUMP SPECIFICATIONS SSZ140[18,30, 342,48,60]1AA-AE; SSZ140241AA-AH; SSZ140361AA-AG Cooling Capacity, BTUH Compressor R.L. Amps L.R. Amps Low Pressure Switch Open Close High Pressure S witch Open Close Condenser Fan Motor Horsepower F.L. Am ps Liquid Line, Inches O.D.* Suction Line, Inches O.D.*...
  • Page 6 HEAT PUMP SPECIFICATIONS SSZ140[18,30]1AF; SSZ140241AJ; SSZ140361AH Cooling Capacity, BTUH 18,000 Compressor R.L. Amps L.R. Amps Low Pressure Switch Open 22 PSIG Close 50 PSIG High Pressure Switch Open 610 PSIG Close 420 PSIG Condenser Fan Motor Horsepower F.L. Amps Liquid Line, Inches O.D.* Suction Line, Inches O.D.*...
  • Page 7 HEAT PUMP SPECIFICATIONS SSZ140[42,48,60]1AF; SSZ140481AG Cooling Capacity, BTUH 42,000 Compressor R.L. Amps 17.95 L.R. Amps 112.0 Low Pressure Switch Open 22 PSIG Close 50 PSIG High Pressure Switch Open 610 PSIG Close 420 PSIG Condenser Fan Motor Horsepower F.L. Amps Liquid Line, Inches O.D.*...
  • Page 8 HEAT PUMP SPECIFICATIONS SSZ140361B* Cooling Capacity, BTUH Compressor R.L. Amps L.R. Amps Low Pressure Switch Open Close High Pressure Switch Open Close Condenser Fan Motor Horsepower F.L. Amps Liquid Line, Inches O.D.* Suction Line, Inches O.D.* Refrigerant Charge Power Supply...
  • Page 9 COOLING PERFORMANCE DATA SSZ140181A*...
  • Page 10 COOLING PERFORMANCE DATA SSZ140181A*...
  • Page 11 COOLING PERFORMANCE DATA SSZ140241A*...
  • Page 12 COOLING PERFORMANCE DATA SSZ140241A*...
  • Page 13 COOLING PERFORMANCE DATA SSZ140301A*...
  • Page 14 COOLING PERFORMANCE DATA SSZ140301A*...
  • Page 15 COOLING PERFORMANCE DATA SSZ140361A*...
  • Page 16 COOLING PERFORMANCE DATA SSZ140361A*...
  • Page 17 COOLING PERFORMANCE DATA SSZ140421A*...
  • Page 18 COOLING PERFORMANCE DATA SSZ140421A*...
  • Page 19 COOLING PERFORMANCE DATA SSZ140481A*...
  • Page 20 COOLING PERFORMANCE DATA SSZ140481A*...
  • Page 21 COOLING PERFORMANCE DATA SSZ140601A*...
  • Page 22 COOLING PERFORMANCE DATA SSZ140601A*...
  • Page 23 COOLING PERFORMANCE DATA SSZ140361B*...
  • Page 24 COOLING PERFORMANCE DATA SSZ140361B*...

  • Page 25: Performance Data

    PERFORMANCE DATA Model: SSZ140181A* / CA*F3131*6A*+TXV / MBR800**-1 Conditions: 80° IDB, 67° IWB @ 600 CFM Outdoor Total Sensible Temp. ° F. Btuh Btuh 75° 18,900 13,097 80° 18,675 13,106 85° 18,450 13,111 90° 18,225 13,159 95° 18,000 13,203 100° 17,550 13,117 105°...
  • Page 26 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 27 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 28 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 29 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 30 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 31 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 32 SPLIT SYSTEM HEATING PERFORMANCE...
  • Page 33 SPLIT SYSTEM HEATING PERFORMANCE...

  • Page 34: Heating Specifications

    HEATING SPECIFICATIONS Model: SSZ140181A* / CA*F3131*6A*+TXV / MBR800**-1 Conditions: 600 CFM Indoor Air @ 70°F DB Basic Unit without Outdoor Auxiliary Heat Ambient capacity °F. btuh c.o.p. 22.63 4.23 39.01 21.42 4.09 37.80 20.16 3.93 36.54 18.85 3.75 35.23 17.44 3.54 33.82 16.20...
  • Page 35 HEATING SPECIFICATIONS Model: SSZ140421A* / CA*F4860*6A*+TXV / MBR2000**-1 Conditions: 1400 CFM Indoor Air @ 70°F DB Basic Unit without Outdoor Auxiliary Heat Ambient capacity °F. btuh c.o.p. 51.54 4.44 67.92 48.79 4.28 65.17 45.92 4.11 62.30 42.93 3.92 59.31 39.73 3.70 56.11 36.90...
  • Page 36 A properly operating unit should be within plus or minus 2 degrees of the subcooling value shown in the Heat Pump Specifications. A properly operating unit should be within plus or minus 3 degrees of the typical (Delta T) value shown.

  • Page 37: Wiring Diagrams

    SSZ140[18,30,42-60]1AA-AE, 241AA-AH, WIRING DIAGRAMS 361AA-AG ONLY CONTACTOR POLE DOUBLE ALTERNATE Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
  • Page 38 SSZ140[18,30,42-60]1AF, 241AJ, 361AH WIRING DIAGRAMS SSZ140361B* ONLY CONTACTOR POLE DOUBLE ALTERNATE Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
  • Page 39 WIRING DIAGRAMS ONLY CONTACTOR DOUBLE LVDR 0- RV C-RV HVDR Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring. SSZ140[18,30,42-60]1AG, 241AK, 361AH POLE ALTERNATE SSZ140361B*...

This manual is also suitable for:

Ssz140181aSsz140241aSsz140301aSsz140361aSsz140421aSsz140481a ... Show all
