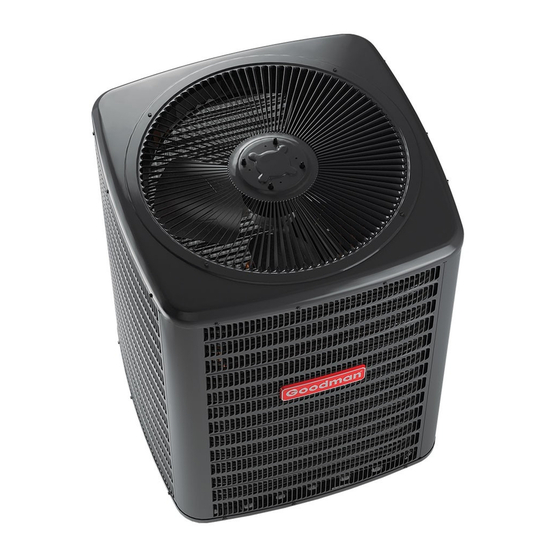

Goodman SSZ14 Manual

C C : 18,000 57,600 BtU/
ooling apaCity to
h C : 18,000 59,000 BtU/
eating apaCity to

Standard Features

• R-410A chlorine-free refrigerant
• Two-stage scroll compressor
• High density foam compressor sound blanket
• Expanded CoreSense™ diagnostics built in
• SmartShift® technology with short-cycle protection
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed compressor crankcase heater
• Factory-installed coil and ambient temperature sensors
• Factory-installed suction-line accumulator
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections
and easy access to gauge ports
• Copper tube/enhanced aluminum fin coil
• Contactor with lug connection
• Ground lug connection
• AHRI Certified; ETL Listed
SS-SSZ14
h
h

Cabinet Features

• Goodman® brand sound control top design
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint
finish with 500-hour salt-spray approval
• Top and side maintenance access
• Service ports and controls are
accessible while unit is operating
• When properly anchored, meets the 2010
Florida Building Code unit integrity
requirements for hurricane-type winds
(Anchor bracket kits available.)
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the Lifetime
Compressor Limited Warranty (good for as long as you own your home) and the 10-Year Parts Limited Warranty, online
registration must be completed within 60 days of installation. Online registration is not required in California or Quebec.
www.goodmanmfg.com
H
igH
S S
plit yStEm
u 15 SEER & 8.5 HSpf
p to
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Expanded Cooling Data ........................ 4
Expanded Heating Data ...................... 20
AHRI Ratings ........................................ 22
Wiring Diagrams ................................. 38
Dimensions ......................................... 40
Accessories .......................................... 40
SSZ14
-E
fficiEncy
H p
Eat ump
4/14
Supersedes 3/14
