CHIEF OFB214 Installation Instructions

Office furniture bracket

Download this manual

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

Office Furniture Bracket

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

OFB214

Need help?

Do you have a question about the OFB214 and is the answer not in the manual?

Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Office Furniture Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description OFB214...
Page 2 It is the installer’s responsibility to Chief® and Kontour™are registered trademarks of Milestone make sure the structure to which this component is attached AV Technologies. All rights reserved.
Page 3: Assembly And Installation

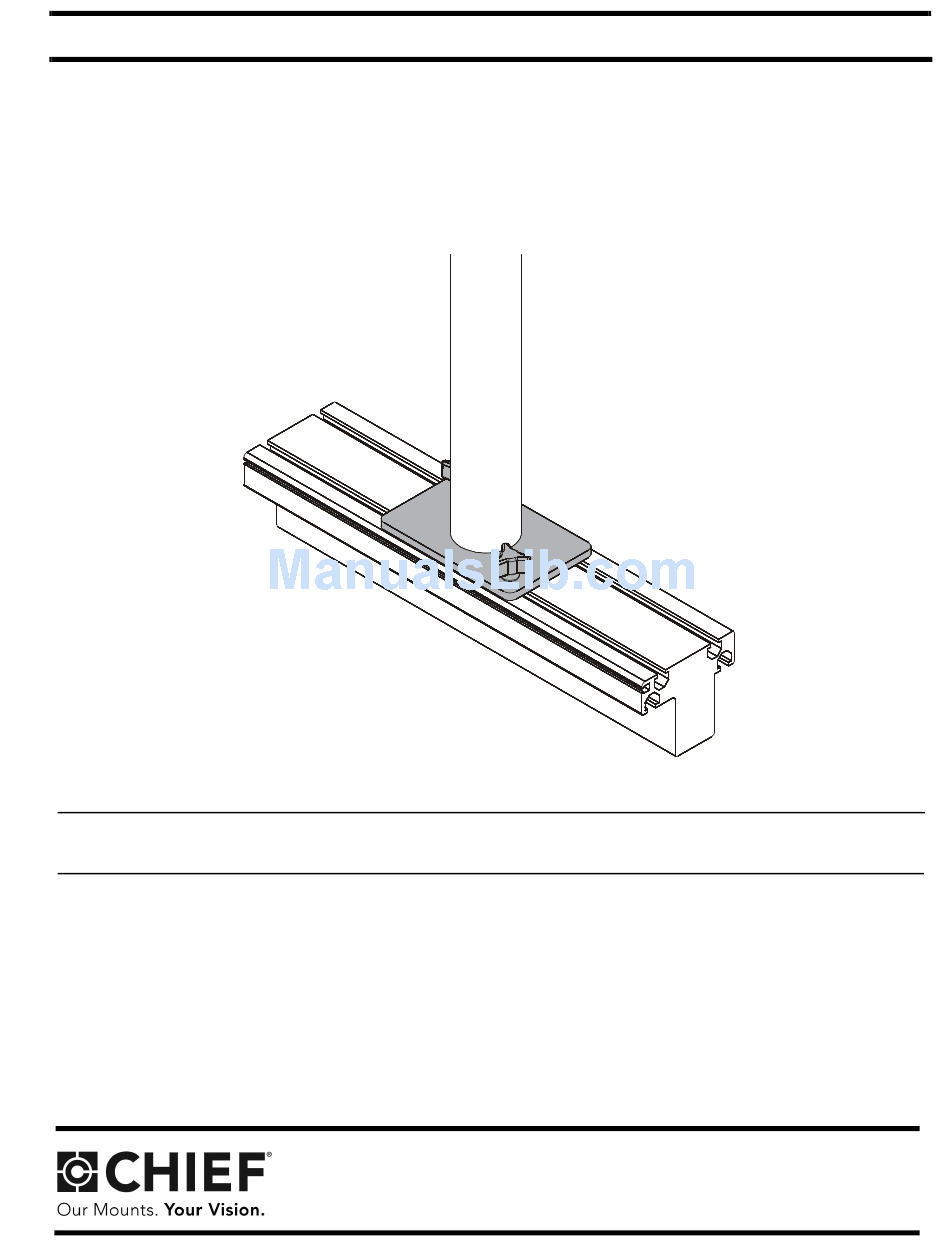

Installation Instructions OFB214 Assembly and Installation Attach to Pole Attaching Single Hole Pole Assembly Secure pole adapter (A) to pole assembly using 3/8-16 x 1" flathead cap screw (C) and 7/32" hex key (E).(See Figure 1) pole assembly Figure 3 Attach to Wall Track Assembly Slide two 1/4-20"...
