ASSEMBLY

Open the carton and remove the main housing assembly. Twist the plastic stem lock,

located at the end of the upper stem to allow the lower stem to be inserted. Adjust for length

and rotate the lower stem to wrap the cable around the stems and take up any slack.

Allowing enough cable for free movement of the search head, push the cable into the cable

slots in the lower stem to hold it firm. Turn the stem lock to fix it at the desired position.

BATTERIES

The R1 is powered by eight AA batteries or a single 12v rechargeable pack from C-Scope. It

is advisable to use standard alkaline batteries to start with. You can then evaluate the sort of

use you give the detector and decide whether the investment in rechargeables is justified.

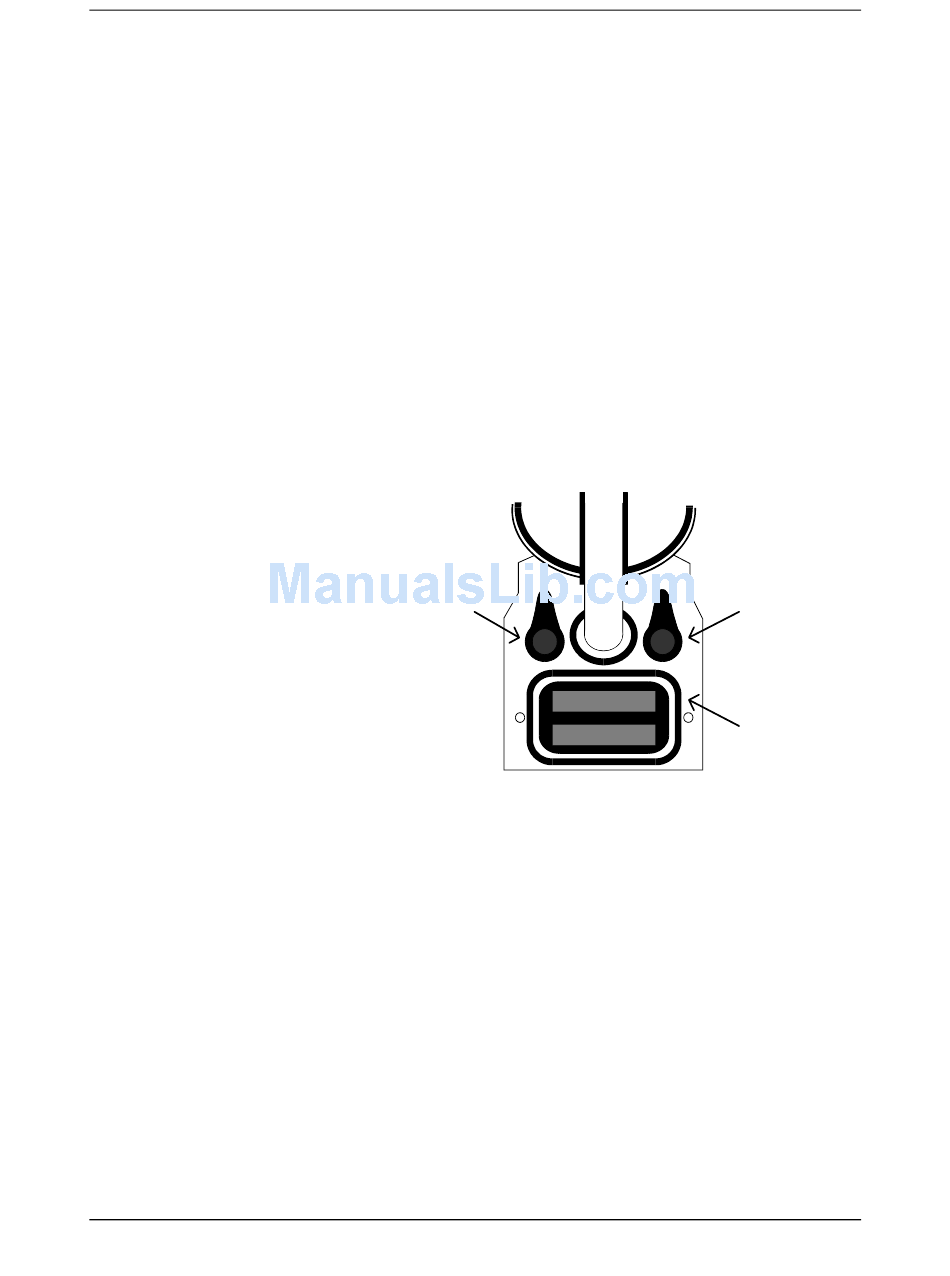

The batteries should be fitted in the

holder which is located in the battery

compartment. To fit new batteries

first check the power switch on the

unit is switched to OFF. Then

loosen the two captive screws

located in the battery cover (do not

fully remove these from the cover)

and remove the cover. Inside is the

battery holder. Lift out the holder

and detach the connector if it is

already fitted. Load it with the eight

batteries ensuring that each battery

is inserted the correct way round,

(direction of batteries alternating).

Roll

each

individual

ensure it is located correctly and

making proper contact. Replace the connector making sure that it is firm and well seated,

and put the loaded holder into the housing. Fit the cover and tighten the two captive screws

finger tight.

Once fitted the battery type should be set by selecting the Battery option on the Setup menu.

This ensures that the battery condition is correctly displayed

Note: Batteries should not be left in the detector for long periods where they could leak, so

remember to remove them at the end of a day's searching.
