Xerox WorkCentre 7120 Specifications

Color multifunction printer
Hide thumbs Also See for WorkCentre 7120:

Advertisement

Quick Links

Download this manual See also: Reference Manual, System Administrator Manual
WorkCentre
Color Multifunction Printer
Output Speed – Printing and Copying
Black and white
Color
First-Page-Out Time
Copy – Black and white
Copy – Color
Paper Handling
Paper Handling – Duplex Automatic Document Feeder
Capacity
Speed
7120/7125
®

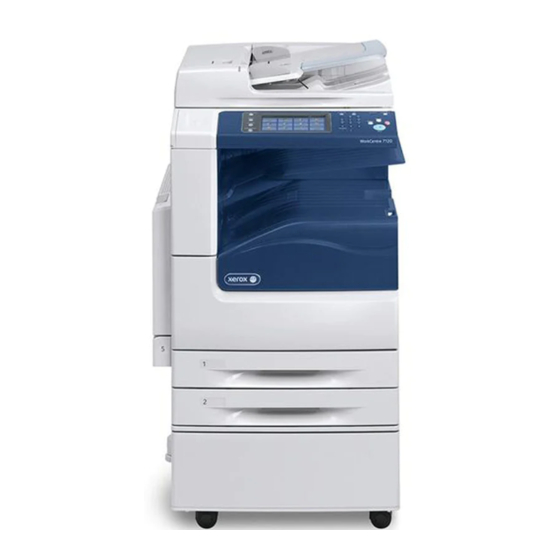

WorkCentre 7120/7125
shown with two trays and Stand
WorkCentre 7120/7125
Up to 20 ppm (pages per minute)
8.5 x 11 in. (A4/210 x 297 mm) LEF
Up to 13 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 11 ppm
11 x 17 in. (A3/297 x 420 mm)
Up to 20 ppm
8.5 x 11 in. (A4/210 x 297 mm)
Up to 13 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 11 ppm
11 x 17 in. (A3/297 x 420 mm)
As fast as 6.5 seconds
As fast as 8.1 seconds
110 sheets (based on 20 lb Bond/75 gsm paper)
55 images per minute Color / Black and white (Letter/A4 long edge feed (LEF))
WorkCentre 7120/7125
shown with four trays, Office Finisher
LX with Booklet Maker, Work Surface
and Convenience Stapler
WorkCentre 7125
Up to 25 ppm (pages per minute)
8.5 x 11 in. (A4/210 x 297 mm) LEF
Up to 16 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 14 ppm
11 x 17 in. (A3/297 x 420 mm)
Up to 25 ppm
8.5 x 11 in. (A4/210 x 297 mm)
Up to 16 ppm
8.5 x 14 in. (216 x 356 mm)
Up to 14 ppm
11 x 17 in. (A3/297 x 420 mm)
Detailed Specifications
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WorkCentre 7120 and is the answer not in the manual?

Questions and answers

Related Manuals for Xerox WorkCentre 7120

Summary of Contents for Xerox WorkCentre 7120

  • Page 1 WorkCentre 7120/7125 ® Color Multifunction Printer WorkCentre 7120/7125 WorkCentre 7120/7125 shown with two trays and Stand shown with four trays, Office Finisher LX with Booklet Maker, Work Surface and Convenience Stapler WorkCentre 7120/7125 WorkCentre 7125 Output Speed – Printing and Copying...
  • Page 2 WorkCentre ® 7120/7125 Sizes 5.5 x 8.5 in. (A5) to 11 x 17 in. (A3) SEF Custom sizes: 3.3 x 4.9 in. (85 x 125 mm) to 11.7 x 17 in. (297 x 432 mm) Weights 13 to 32 lb Bond / 38 to 128 gsm Paper Handling –...
  • Page 3 WorkCentre ® 7120/7125 Output – Office Finisher LX Option Stacking Tray 2,000 sheets unstapled or 1,000 sheets single staple or 750 sheets dual staple (24 lb Bond / 90 gsm Letter/A4) Sizes 7.2 x 8.3 in. (182 x 210 mm) to 11 x 17 in. / A3 Weights 16 lb Bond to 80 lb Cover / 60 to 220 gsm Stapling...
  • Page 4 Multi-position stapling (requires Office Finisher LX) ID Card Copy Foreign Device Interface Interface to third-party access control devices, coin machines and card readers Supports a variety of vending stations available through the Xerox Custom Application Service Print Specifications First-Page-Out Time Print – Black and white As fast as 11 seconds Print –...
  • Page 5 WorkCentre ® 7120/7125 Network Printing – Printing Features Features Secure Print Delay Print (specific time) Sample Set Booklet creation Cover selection Inserts and exception pages Store File in Folder Paper selection by attribute N-up Saddle-stitch booklet making (requires Office Finisher LX) Hole Punch (requires Office Finisher LX) Watermark Fit to new paper size...
  • Page 6 Bi-directional with Xerox Custom Graphical User Interface Xerox Mobile Express Makes it easy for mobile users to find, use and manage Xerox and non-Xerox devices in every new location. Plug Driver (X-MED) into a new network, and X-MED automatically discovers available printers and provides status and capability infor- ®...
  • Page 7 Provides built-in process intelligence that allows the printing of barcodes on any appropriately configured Barcode Utility (Optional) PostScript printer on the SAP R/3 4.x (or higher) network. Used in conjunction with Xerox Device Types for SAP R/3 Information available Environment and Xerox Font Center Barcode Fonts. Utility automatically calculates checksum, placement of start/ at www.xeroxofficesap...
  • Page 8 Finisher output tray selection Secure print on/off Fax Vendors Multiple vendors, certified by the Xerox Alliance Partner Program For details, visit www.xerox.com PSTN Fax (Optional) – One or Three Line Fax Option ITY (CCITT) group 3 quality/resolution superfine/600x600, super fine/400 x 400, fine/200x200,...
  • Page 9 WorkCentre ® 7120/7125 Internet Fax (Optional) – Standard with One or Three Line Fax Option Capability Direct document transmission to remote Internet Fax machines or email clients (SMTP) Reception and automatic printout of documents in black and white sent via email from remote Internet Fax machines or email clients Maximum Scan Area 11 x 17 in./A3...
  • Page 10 WorkCentre ® 7120/7125 Input Speed Scan at 55 ipm Color / Black and white (216 x 279 mm/A4 long edge feed) Resolution 600 x 600 dpi 400 x 400 dpi 300 x 300 dpi 200 x 200 dpi Network Protocol SMTP, S/MIME, POP3 File Formats TIFF 6.0 or TTN2 with JPEG, G3MH, G4 MMR compression (single page or multiple pages)
  • Page 11 • Nuance OmniPage Pro (for desktop/client installation) – OCR and file format conversion software • Image Retriever – provides fully automated retrieval of scanned images direct from a scan enabled Xerox or through email WorkCentre to individual desktops. Also includes an Email inbox polling capability.
  • Page 12 WorkCentre 7120: 50,000 pages / month WorkCentre 7125: 60,000 pages / month Basic Configurations Network Multifunction System with network controller – Copy, Print and Network Scan capability standard WorkCentre 7120/7125: 2 Tray with Stand Configuration WorkCentre 7120T/7125T: 4 Tray Configuration Detailed Specifications...
  • Page 13 Xerox Extensible Interface Platform (EIP) ® Xerox EIP is a software platform inside the WorkCentre 7120/7125 that enables personalized solutions you can access right from the device touch screen. These applications can leverage your existing databases and meet your specific business challenges.

  • Page 14: Energy Star

    001R00610 ©2011 Xerox Corporation. All rights reserved. Contents of this publication may not be reproduced in any form without permission of Xerox Corporation. XEROX®, XEROX and Design® and WorkCentre® are trademarks of Xerox Corporation in the United States and/or other countries.
