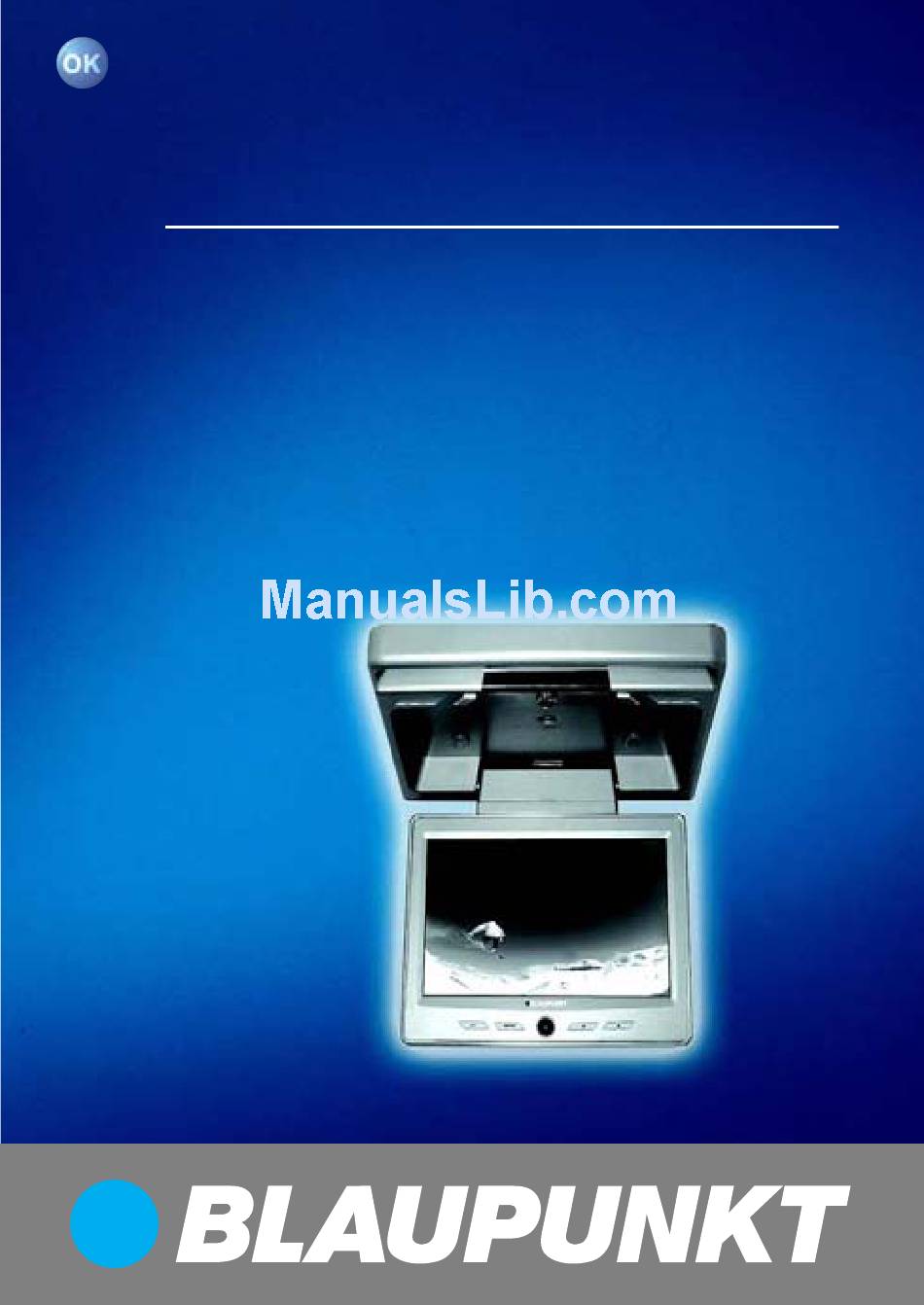

- Page 1 In Car Video IVMR-7002 7 607 004 511 Operating and installation instructions http://www.blaupunkt.com...
-
Page 2: Device Overview
DEVICE OVERVIEW > <... -
Page 3: Ceiling-Mounted Monitor
DEVICE OVERVIEW @ Cable for the interior lighting Ceiling-mounted monitor (3 pin) 1 Lights on the main unit Red = Electrical power supply 2 Light switch ON (+12V) 3 Monitor latch White = To the door switch 4 Vehicle interior lighting switch (Door open = Earth) 5 Loudspeaker Black = Earth... -
Page 4: Ir Remote Control
DEVICE OVERVIEW IR remote control D POWER On/off button for the monitor. E TV/VIDEO Input selector: switch between E F G AV1 and AV2. F VOL • arrow button Increase the volume for the selected monitor. VOL • arrow button Decrease the volume for the selected monitor. -
Page 5: Table Of Contents
Closing the monitor ....... 24 Switching on the monitor ....24 OSD menu ........25 IR headphones IVHS-01 (accessory) ........25 Changing the light bulb ....26 Changing the battery in the remote control ....... 26 Specifcations ......27 IVMR-7002 ........27... -
Page 6: Notes For The User
NOTES FOR THE USER Thank you for choosing a Blaupunkt Precautionary measures product. We hope you enjoy using this Please observe all the warning notices, new piece of equipment. precautionary measures Please read these operating maintenance tips contained in these... -
Page 7: Safety Notices
NOTES FOR THE USER SUPPLIED PARTS Note Supplied parts We recommend that you allow a The monitor is supplied with all the parts specialist workshop to carry out the listed below. Please check that the installation. range of parts supplied with your device is complete. -
Page 8: Installing The Monitor
INSTALLING THE MONITOR Installing the monitor (mechanical) Select a suitable position for secure installation of the monitor: The device must not distract the driver or restrict the driver’s view. Screws for securing the mounting plate The ability to enter and get out of the vehicle must not be impeded. -
Page 9: Cables
INSTALLING THE MONITOR Cables Interior lighting connection (3 pin) = Operating voltage (+12 V) White = To the door switch > (Door open = Earth) Black = Earth To avoid discharging the battery, we recommend you use a switched operating voltage (ignition). Warning notice: The operating voltage cable must be protected with at least a 1.5 A fuse. -
Page 10: Operation
OPERATION Controlling the interior lighting Opening the monitor (monitor) Pull back the monitor release latch 3 to flip down the LCD display. There are two switches for the lights: 2 and interior lighting To watch television, lower the monitor until it is at an angle of approx. -
Page 11: Adjusting The Position Of The Monitor
OPERATION Adjusting the position of the monitor The monitor can be rotated by up to approx. 30° to the right and left from its central viewing position. E F G Closing the monitor Turn the monitor back to its central viewing position and push it into its base unit so that it clips back into the releasing/locking mechanism. -
Page 12: Osd Menu
OPERATION OSD menu ZOOM (picture size) Change the picture height/width Operation - FULL Press the MENU button : on the - NORMAL display or the MENU button I on - WIDE the remote control to open the BRIGHTNESS: OSD menu. To adjust the brightness Use the arrow buttons 7 / 8 or CONTRAST:... -
Page 13: Changing The Light Bulb
OPERATION Changing the light bulb Light bulb specifications Diameter: 8 mm Detach the monitor from the ceiling plate (4 screws). Length: 28 mm Voltage: 12 V, 3 W Changing the battery in the remote control Push the button on the battery compartment J to the right (see A below). -
Page 14: Specifcations
SPECIFICATIONS IVMR-7002 Screen size: 7" Monitor Screen resolution: 480 (H) x 3 (RGB) x 234 (V) Active area: 154,08 (H) x 86,58 (V) Signal system: Dual system NTSC/PAL Brightness: 320 cd/m Contrast ratio: 400:1 Viewing angle: Left/right: 60/60 degrees Up/down: 50/40 degrees Video input level: 1.0 Vpp ±... - Page 15 0800-118922 022-8771260 Turkey (TR) 0212-335 06 71 0212-3460040 (USA) 800-2662528 708-6817188 Brasil (Mercosur) (BR) 0800 7045446 +55-19 3745 2773 Malaysia (Asia Pacific) (MAL) +604-6382 474 +604-6413 640 Blaupunkt GmbH Robert-Bosch-Str. 200 D-31139 Hildesheim 07.05 CM/ASA - 8 622 404 487...
