4 O
PERATION
4.1 A
DDRESSING
CyberDomes can be addressed from 0000 up to 1023.
4.2 P
RESETS
Example with Set Preset and Go To Preset on WaveReader.
Set Preset: Position the dome as needed. On drop down menu, select
the preset number (1 to16). Click "Set" to set the preset.
Go To Preset: On the drop down menu, select the preset number (1
to16). Click "Go to" to recall that preset. The DVMRe will receive these
preset messages via TCP/IP and convert them to RS485.
5 C
ABLE

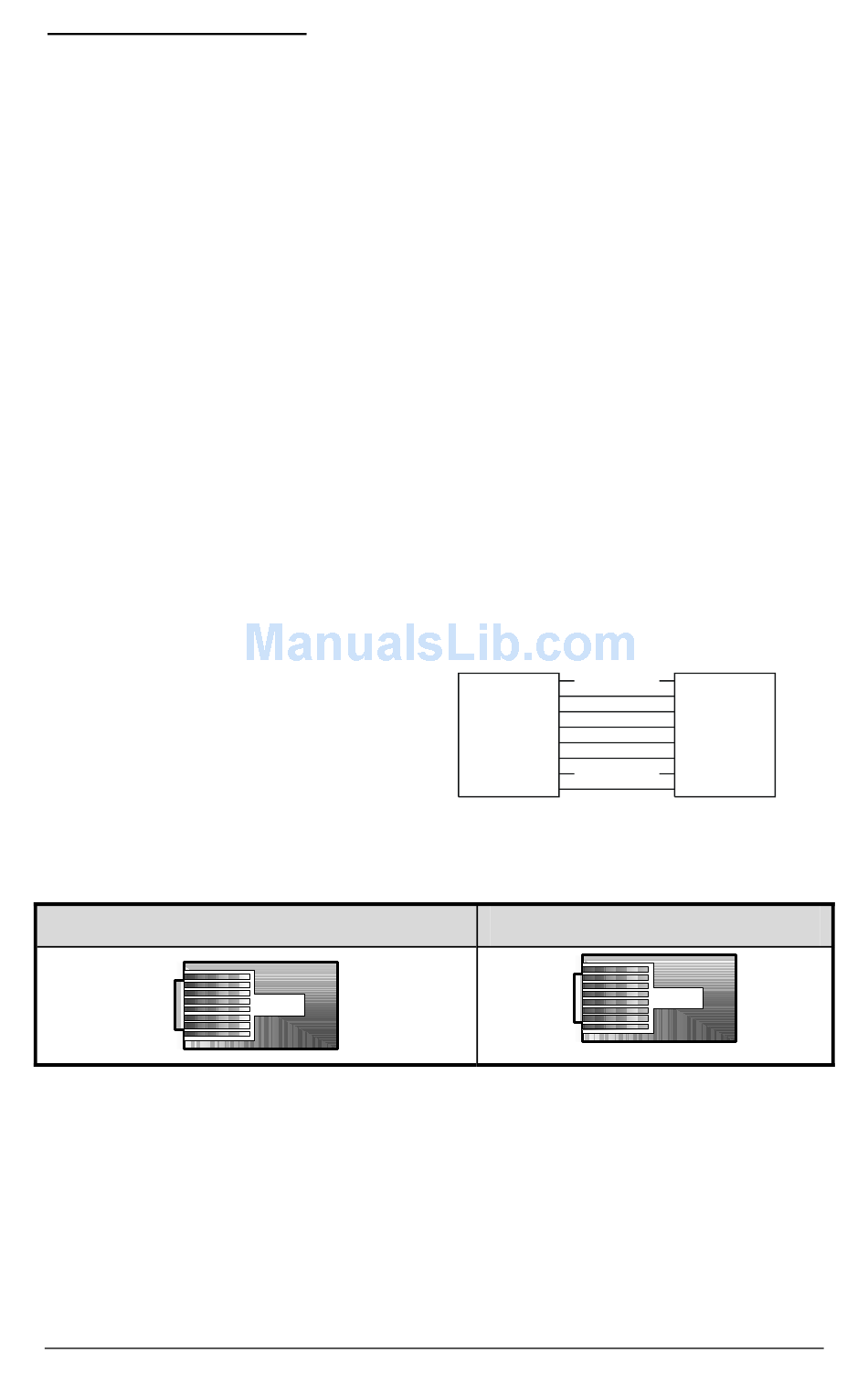

5.1 P B
RO RIDGE TO
Part Number : 4310-0034B
Communication Type: RS485
Connector Type: RJ-45, RJ-45
Cable Required: 5 Foot, RJ-45-to-RJ-45
Triplex RS485 Cable (Supplied).
Connects ProBridge to DVMRe-CT.
RJ-45 Connector
10
:
:
S
PECIFICATIONS
DVMR T C
E RIPLEX ABLE
Pin 8: Brown
Pin 7: Brown/White
Pin 6: Green
Pin 5: Blue/White
Pin 4: Blue
Pin 3: Green/White
Pin 2: Orange
Pin 1: Orange/White
RJ-45
Connector
RJ-45 Connector
ProBridge Gateway
Pin 8: Brown
Pin 7: Brown/White
Pin 6: Green
Pin 5: Blue/White
Pin 4: Blue
Pin 3: Green/White
Pin 2: Orange
Pin 1: Orange/White
RJ-45
Connector
0150-0265C / April 2006
