E.F. Johnson Company MULTI-NET 98xx SERIES Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

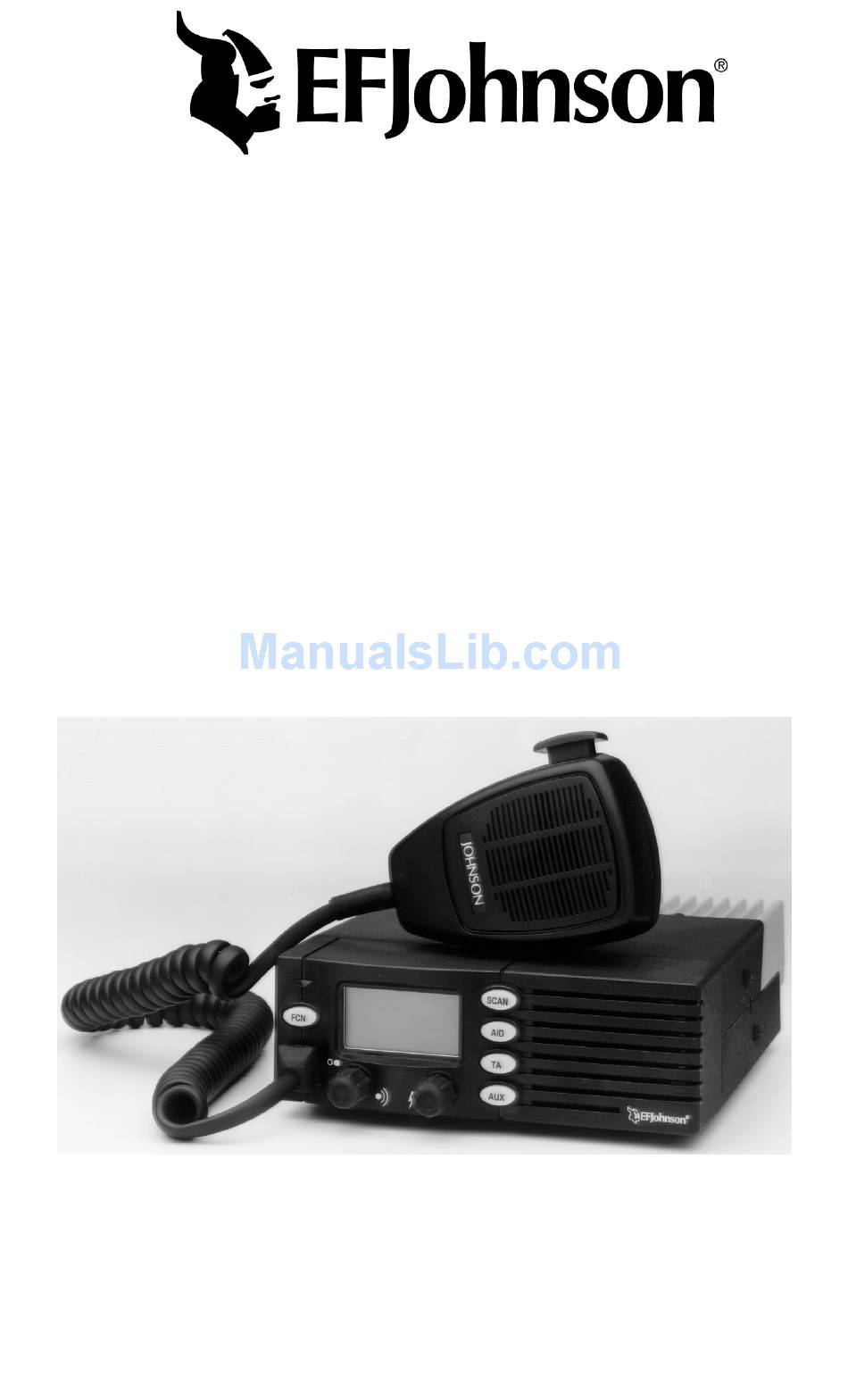

MULTI-NET® 98xx SERIES
OPERATING MANUAL
Part No. 002-9800-401
April 2001

Advertisement

Table of Contents
loading

Related Manuals for E.F. Johnson Company MULTI-NET 98xx SERIES

Summary of Contents for E.F. Johnson Company MULTI-NET 98xx SERIES

  • Page 1 MULTI-NET® 98xx SERIES OPERATING MANUAL Part No. 002-9800-401 April 2001...

  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION The FCC has adopted a safety standard for human exposure to RF en- ergy. Proper operation of this radio under normal conditions results in user exposure to RF energy below the Occupational Safety and Health Act and Federal Communication Commission limits. WARNING DO NOT allow the antenna to touch or come in very close proximity with the eyes, face, or any exposed body parts while the radio is trans-...
  • Page 3 Project 25 digital radio products. ® ® ® Viking Head/EFJohnson logo, Multi-Net , LTR , and Call Guard registered trademarks of the E.F. Johnson Company. All other company and/or product names used in this manual are trademarks and/or...
  • Page 4 SAFETY INFORMATION FCC EXPOSURE LIMITS This mobile radio transceiver was tested by the manufacturer with an appropriate antenna in order to verify compliance with Maximum Per- missible Exposure (MPE) limits set under Section 2.1091 of the FCC Rules and Regulations. The guidelines used in the evaluation are derived from Table 1 (B) titled “Limits For General Population/Uncontrolled Exposure”...
  • Page 5 SAFETY INFORMATION Table 2 lists the antenna whips and bases recommended for use in each frequency range. Each model of this radio was tested with the appro- priate antenna listed. The antenna was mounted in the center of the roof of a domestically manufactured 4-door passenger sedan.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SAFETY INFORMATION ......2 QUICK REFERENCE GUIDE ......9 CONTROLS AND DISPLAY .
  • Page 7 TABLE OF CONTENTS Stealth Mode........31 Time-Out Timer .
  • Page 8 TABLE OF CONTENTS Talk-Around ........52 Call Guard Squelch.

  • Page 9: Quick Reference Guide

    QUICK REFERENCE GUIDE QUICK REFERENCE GUIDE Red - Transmit System Scan Group Scan Amber - Transmit (Reduced Pwr) Encryption List List Monitor Green - Busy Conv. Group (Channel) Select Switch On-Off/Volume Priority Phone/ Option Call Horn Scan (Press/Rotate) (Press/Rotate) Alert Selected Group Power On/Off - Press on-off /volume control.

  • Page 10: General Features

    FEATURES General Features • Up to approximately 100 1-group or 40 16-group systems programmable ® ® • Multi-Net , LTR , and conventional operation • Unique 8-character system and group identification tags • System and group scan • User programmable system and group scan lists •...

  • Page 11: Controls And Display

    CONTROLS AND DISPLAY CONTROLS AND DISPLAY Transmit/Busy Option Switches Speaker Indicator Microphone On-Off/Volume Select Switch Jack Front Panel Controls On-Off Volume - Pressing this knob turns power on and off. The vehicle ignition switch may also control power as described in “Power Turn-Off Delay”...
  • Page 12 CONTROLS AND DISPLAY Option Switches - The five front panel option switches can be programmed by your system operator to the functions listed below. Refer to the section indicated for more information on a function. The keycap usually indicates the function controlled by the switch. A/D - Scan list add/delete (see page 37) CG - Call Guard squelch disable (see page 52) EMER - Emergency switch (see page 26)

  • Page 13: Rear Panel Jacks And Connectors

    CONTROLS AND DISPLAY Speaker - The internal speaker is located behind the grille. An optional speaker can be connected to the external speaker jack located on the back (see “Speaker Jack” description which follows). Power Antenna Speaker Jack Jack Jack Rear Panel Jacks and Connectors Antenna Jack - Miniature UHF jack for connecting the 50-ohm antenna.

  • Page 14: Display Description

    CONTROLS AND DISPLAY Phone/ Group Scan System Scan Scan Priority Call Groups List Selected List Monitor Encryption 16-Character Horn Option Message Area Alert Display Description 16-Character Message Area - Indicates the selected system and group (see page 16) and also error conditions and status information. - Indicates that the displayed system is in the scan list and scanned normally (see page 37).

  • Page 15: General Operation

    GENERAL OPERATION - Indicates that an option controlled by the AUX switch is enabled (see page 26). - Indicates that a call has been received on a group programmed for a call indicator (see page 26). To turn this indication off, press any key. - Indicates that the monitor mode is enabled.

  • Page 16: Backlight Operation

    GENERAL OPERATION • If a conventional system is selected, take the microphone off-hook and if someone is using the channel, voice is heard. If no one is using the channel, the squelch control can be adjusted counterclockwise as described in “Setting Squelch Control” on page 18 and noise is heard. It is not possible to unsquelch the transceiver in this manner when a Multi-Net or LTR system is selected.

  • Page 17: Alpha Tag Display Mode

    GENERAL OPERATION bottom line. For example, a “SECURITY” system and “CAR 220” group are displayed as follows. The system and group numbers are not displayed in this mode. System Alpha Tag Group Alpha Tag Alpha Tag Display Mode Selecting the System and Group The front panel Select switch is used to change the system and group.

  • Page 18: Setting Squelch Control

    GENERAL OPERATION System Select Group Select Mode Mode Select Mode Indication With Alpha Tag Display The transceiver can be programmed so that after a change is made, the current select mode remains enabled or a default mode is selected after a delay of up to 15 seconds. This programming also controls the mode that is selected when power is turned on.

  • Page 19: Standard Calls

    STANDARD CALLS 4. If both narrow and wide band channels are used, perform this adjust- ment on both types because separate settings are maintained. NOTE: Some readjustment may be required if weak messages are not heard or unsquelching occurs when no messages are present. STANDARD CALLS Introduction Most calls you make are probably the standard type described in this...

  • Page 20: Receiving A Standard Call

    STANDARD CALLS successfully accessed. If it is not enabled, no tone sounds when the system is successfully accessed. The proceed and other tones can be disabled as described in “Tone Select” on page 32. • If the radio system is busy, the busy tone sounds (see page 54) and “BUSY”...

  • Page 21: Telephone Calls And Other Special Calls

    TELEPHONE CALLS AND OTHER SPECIAL CALLS 2. Select or scan the system and group programmed for the call you want to receive (see page 35 for scan information). 3. When the message is received, the display usually changes to the system and group of the call.
  • Page 22 TELEPHONE CALLS AND OTHER SPECIAL CALLS Busy and Out-Of-Range Conditions Busy and out-of-range conditions are indicated the same as with Multi-Net and LTR standard calls described on page 19. The following additional features may be available with telephone calls: Busy - With LTR operation, if Busy Queuing is programmed (see page 48), the call is automatically placed in a queue when the PTT switch is released.

  • Page 23: Receiving A Telephone Call

    TELEPHONE CALLS AND OTHER SPECIAL CALLS Receiving a Telephone Call 1. Turn transceiver power on and set the volume as described starting on page 15. 2. Select or scan the system and group programmed for telephone calls. When a telephone or Multi-Net special call group is selected, displayed.

  • Page 24: Receiving Other Multi-Net Special Calls

    TELEPHONE CALLS AND OTHER SPECIAL CALLS 3. Dial the 4-8 digit number using the microphone keypad. Refer to step 4 on page 22 for more information. 4. A tone then sounds to indicate that the call was accepted by the system. If this tone does not sound, an incorrect or unauthorized number may have been dialed.

  • Page 25: Landside-Originate Calls

    GENERAL FEATURES Landside-Originate Calls Calls can be placed from a landside telephone to your transceiver if the radio system and transceiver have that capability. With most systems, a mobile can be called directly (each has a unique telephone number). With others, a mobile may be called as follows: 1.

  • Page 26: Call Indicator

    GENERAL FEATURES Call Indicator The call indicator is “C” in the upper part of the display as shown in the following illustration. The purpose of this indication is to show that a call was received while you were away from the vehicle. Individual groups can be programmed for this feature and it then turns on when a call is received on one of those groups.

  • Page 27: Encryption

    GENERAL FEATURES Automatic Operation - The transmitter automatically transmits an emer- gency message on the emergency system/group. The message is trans- mitted without pressing the PTT switch and at the highest priority. Emergency transmissions continue until an acknowledgment is received from the dispatcher.

  • Page 28: Function (Fcn) Switch

    GENERAL FEATURES Function (FCN) Switch If an option switch is programmed for FCN (function), it performs the following functions. If this switch is not programmed, these functions are not available. When the function select mode is active, “FCN” is displayed on the lower line of the display. The function mode is automati- cally exited after 8 seconds of no activity.

  • Page 29: Option Select

    GENERAL FEATURES When enabled, the horn alert pulses on and off for 1-8 cycles and then goes back to the disabled state. To change the currently selected horn alert mode, the HORN option switch or HRN ALRT menu parameter can be used if available (see page 32).

  • Page 30: Power Turn-Off Delay

    GENERAL FEATURES Power Turn-Off Delay Your transceiver may have been installed so that the vehicle ignition switch as well as the front-panel power switch control transceiver power. If this is the case, both the ignition switch and the front panel power switch must be on for transceiver power to turn on.

  • Page 31: Stealth Mode

    GENERAL FEATURES On conventional systems, the Transmit Disable On Busy feature can be used to automatically perform monitoring (see page 51). The proceed tone then does not sound if the channel is busy. Otherwise, the proceed tone (if enabled) sounds on conventional systems even if the channel is busy.

  • Page 32: Tone Select

    OPTION SWITCHES AND MENU MODE One use of the time-out timer feature is to prevent a repeater from being kept busy for an extended period by an accidentally keyed trans- mitter. It can also prevent possible damage to the transmitter caused by transmitting for an excessively long period.

  • Page 33: Menu Mode Introduction

    OPTION SWITCHES AND MENU MODE column. Refer to the page listed in this table for a description of the func- tion. If a function is controlled by an option switch, it cannot be controlled by the menu mode and vice versa. Some switches may not be used and are then disabled.
  • Page 34 OPTION SWITCHES AND MENU MODE Menu Mode and Option Switch Functions Option See Descrip. Function Menu Items Switch on Page Add/delete (scan list prg) Backlight adjust BACKLGHT Bank select BANK SEL Caller ID [1] CALL ID Call Guard Sq. disable Emergency EMER Encryption on-off...

  • Page 35: System And Group Scan

    SYSTEM AND GROUP SCAN 5. The selected status conditions for the various functions are saved when the menu mode is exited in one of the following ways: • Pressing the FCN switch again • Pressing the PTT switch • Automatically when time-out occurs 2 seconds after a change is made or 8 seconds after no changes are made.
  • Page 36 SYSTEM AND GROUP SCAN System Scan List Group Scan List System or Group System or Group Scanning Selected Scanning Occurring The type of scanning selected is determined by the menu mode SCN TYPE parameter (see page 33). If that parameter is not selectable, the type of scanning is fixed by programming.

  • Page 37: Single And Multiple Site Scan

    SYSTEM AND GROUP SCAN Single and Multiple Site Scan Single and Multiple site scanning (see descriptions which follow) are selectable if the SCAN SEL menu parameter if it is available. If this parameter is not available, scanning is fixed in one of these states by programming.

  • Page 38: Scan Delay And Continue Timers

    SYSTEM AND GROUP SCAN inal group scan list is again active. Systems and groups can be deleted from the scan list while listening to a message on the system or group by pressing the A/D switch in the normal manner. Scanning resumes shortly after the system or group is deleted.

  • Page 39: Transmitting In The Scan Mode

    SYSTEM AND GROUP SCAN There is also a scan continue timer that may be programmed. This timer controls the maximum time that a call is received before scanning resumes. Times up to 60 seconds can be programmed. This prevents scanning from being delayed for long periods by lengthy calls. If the menu SCN CONT parameter is selectable (see page 33), this feature can be turned on and off.

  • Page 40: Multi-Net, Ltr, And Conventional Modes

    MULTI-NET, LTR, AND CONVENTIONAL MODES disabled), the selected system/group is again displayed. Therefore, you can respond to a call without changing the selected system/group as long as you do so before scanning resumes. Fixed System/Group Transmit in Scan Each bank can be programmed so that transmissions in the scan mode that are made while scanning is occurring are on a preprogrammed system/group.

  • Page 41: Conventional Operation

    MULTI-NET, LTR, AND CONVENTIONAL MODES include telephone, unique ID, and directed group. Multi-Net features are described starting on page 43. LTR operation is similar to Multi-Net operation. The main differ- ence is that the preceding features are not available. The two types of calls that can be placed with LTR operation are Standard and Telephone.

  • Page 42: Monitoring Conventional Channels Before Transmitting

    MULTI-NET, LTR, AND CONVENTIONAL MODES Monitoring Conventional Channels Before Transmitting Regulations require that the channel be monitored before transmit- ting to make sure that it is not being used by someone else. If you were to transmit when someone else is talking, you would probably disrupt their conversation.

  • Page 43: Multi-Net Features

    MULTI-NET FEATURES Monitor Mode Selected MULTI-NET FEATURES Standard and Special Calls Standard calls are between two mobiles or between a mobile and a control station, and special calls include telephone, unique ID, and directed group. Standard calls are described starting on page 19, tele- phone calls starting on page 21, and unique ID and directed group calls starting on page 23.

  • Page 44: Roaming (Auto-Registration)

    MULTI-NET FEATURES with all calls except telephone, and the dial tone sounds with telephone calls. The call can then be placed in the normal manner. When in the queue mode, calls are received normally. A response can be made to a call and Busy Queuing resumes shortly after the call is finished (if it was not on the selected group).

  • Page 45: Transmitting Status Messages

    MULTI-NET FEATURES other selectable systems. While searching is occurring, “ROAMING” is indicated on the lower line of the display as shown below. When a new site is located, this message is no longer displayed, and the system and group of the new site is displayed. The new system is the first higher system with a different site that could be accessed (wrap-around occurs after the highest system is accessed).

  • Page 46: Caller Identification

    MULTI-NET FEATURES message and exit this mode, press the FCN option switch again. This also occurs automatically 2 seconds after a change is made or 8 seconds after no changes are made. Up to eight status conditions such as “AT SITE”, “LEAVING”, and “LOADING”...

  • Page 47: Transmit Inhibit

    MULTI-NET FEATURES If a call is received on one of the fixed priority ID codes, either “PRIORTY1” or “PRIORTY2” is displayed on the bottom line. The selectable groups are then checked to see if any have the same ID code. If a match is found, the transceiver changes to that group.

  • Page 48: Ltr Features

    LTR FEATURES LTR FEATURES Standard and Telephone Calls Standard calls are between two mobiles or between a mobile and a control station. Telephone calls allow you to place and receive calls over the public telephone system using your transceiver. Standard calls are described starting on page 19, and telephone calls are described starting on page 21.

  • Page 49: System Search

    LTR FEATURES remains enabled while in the queue mode, but system scanning is tempo- rarily disabled. This feature is enabled on individual LTR systems by dealer programming, and it is then available with all telephone calls on that system. System Search If an out-of-range condition exists when attempting an LTR tele- phone call, the system search feature can be used to automatically search for a system within range.

  • Page 50: Priority And Block Id Codes

    CONVENTIONAL FEATURES a call is received on one of these groups, the transceiver automatically transmits a response. This causes the transceiver placing the call to briefly unsquelch and the call indicator to turn on (if it is programmed on the selected group). Priority and Block ID Codes LTR priority and block ID codes function nearly the same with both LTR and Multi-Net operation.

  • Page 51: Transmit Disable On Busy

    CONVENTIONAL FEATURES A CG (Call Guard disable) option switch may also be programmed. This switch disables both receive and transmit squelch control on the selected group only (the monitor mode disables only receive squelch control). When squelch control is disabled by the CG switch, “CG OFF” is momentarily displayed.

  • Page 52: Talk-Around

    CONVENTIONAL FEATURES Talk-Around Normally, all transmissions go through a repeater. Therefore, if you are out of radio range of the repeater, you cannot talk to anyone, even if you are only a short distance away from the mobile you are calling. To allow communication if this occurs, the talk-around feature can be used to enable direct mobile-to-mobile communication without going through a repeater.

  • Page 53: Priority Group Sampling

    CONVENTIONAL FEATURES Priority Group Sampling The priority group sampling feature ensures that messages on priority conventional groups are not missed while listening to a message on a non-priority conventional group. A fixed first and second priority group can be designated by programming or either priority group can be the selected group.

  • Page 54: Miscellaneous

    MISCELLANEOUS NOTE: Priority sampling occurs only on conventional systems and only when scanning is enabled by the SCAN switch. It does not occur when listening to a Multi-Net or LTR call or when transmitting. MISCELLANEOUS Supervisory Tones The following tones are heard at various times when operating this transceiver.
  • Page 55 MISCELLANEOUS seconds before this tone sounds, a single beep sounds to indicate that time-out will soon occur. • Transmit Inhibit - If this tone sounds as soon as the PTT switch is pressed with a Multi-Net or LTR system selected and “TX INHIB” is displayed, the transmitter has been disabled by the Transmit Inhibit feature (see page 47).

  • Page 56: Multi-Net Telephone Call Tones

    MISCELLANEOUS Multi-Net Telephone Call Tones The following tones are generated by the Multi-Net equipment and are heard when making a telephone, unique ID, or directed group special call on a Multi-Net system. Confirmation Tone - This is a short tone that sounds when the number just dialed has been accepted by the system.

  • Page 57: Display Messages

    MISCELLANEOUS Conversation Time-Out Tone - Calls are limited to a certain length by the system. Thirty seconds before this time is reached, a “tick” begins sounding each second. When the 30-second time expires, the call is auto- matically terminated by the system. Turn-Around Tone - This is a single beep which may be used to indicate to the landside party when to respond to your transmission.
  • Page 58 MISCELLANEOUS EMERGNCY - Indicates that the emergency switch has been pressed (see “Emergency Switch” on page 26). FCN - Indicates that the function select mode is selected by the FCN option switch (see page 28). GSCN DIS - Indicates that an attempt was made to delete a group from the scan list with group scanning disabled (see “Scan List Programming”...
  • Page 59 MISCELLANEOUS OUT-RNGE - Indicates that the transceiver was unable to contact a repeater. Once this indication appears, no more access attempts are made until the PTT switch is released and then pressed again. Refer to “Opera- tion At Extended Range” on page 61 for more information. PRI ON or OFF - Indicates that priority sampling was just enabled or disabled by the PRI option switch (see page 53).

  • Page 60: Menu Mode Messages

    MISCELLANEOUS Menu Mode Messages The following messages are displayed in the menu mode that is described starting on page 32. “ON” is displayed to indicate enabled or yes, and “OFF” is displayed to indicate disabled or no. BCKLHGT - Backlight control •...

  • Page 61: System Operator Programming

    MISCELLANEOUS STATUS - Status message select • NO STATUS - No status message transmitted • Programmed status messages STEALTH - Stealth mode select • ON or OFF SYS SRCH - LTR system search • ON or OFF TALKARND - Conventional talk-around on-off •...

  • Page 62: Preventing Battery Discharge

    MISCELLANEOUS ground noise when messages are received. You may still be out of range even though you can hear a message. The reason for this is that the signal you are receiving is usually transmitted at a higher power level than the one transmitted by your transceiver.
  • Page 63 MISCELLANEOUS Also make sure that the controls are properly set and that the power, external speaker (if used), and accessory (if used), cables are securely plugged into the back of the transceiver. If the transceiver still does not operate properly, return it to your system operator for service. NOTE: There are no user-serviceable components in the transceiver.
