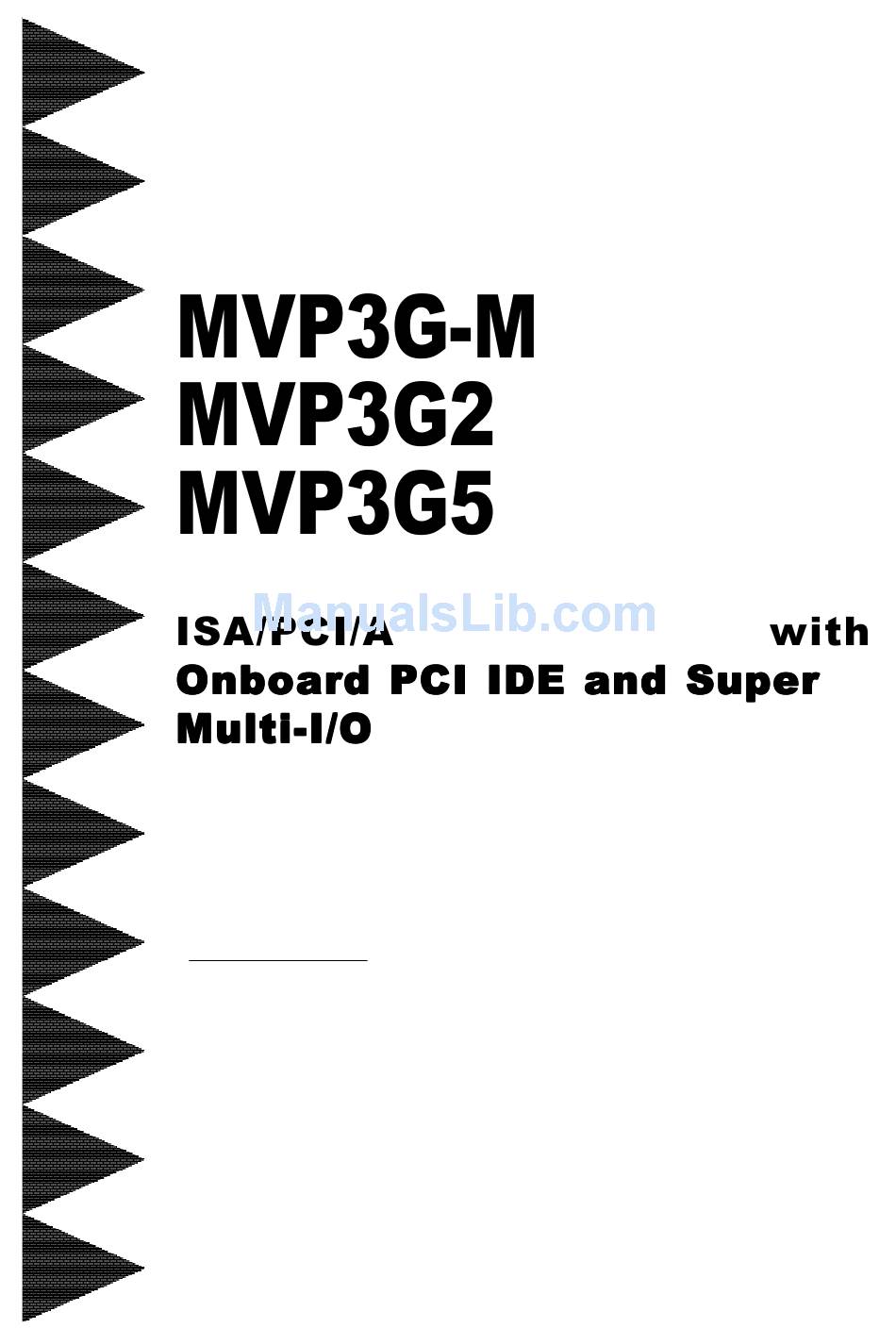

- Page 1 GP Motherboard TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subjected to change without notice. Manual Revision 10.0 July 14, 1999...
- Page 2 Supports (2) 16 bit ISA slots, (5) 32 bit PCI slots, (1) AGP Slot and provides (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices. The MVP3G-M/2/5 sup- ports (5) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI card(s).
- Page 3 Features MVP3G-M/2/5 • allows use of a PS/2 keyboard. • MVP3G-M/2/5 utilizes a Lithium battery which provides environmental protection and longer battery life. • Built-in ATX 20-pin power supply connector. ® • Software power-down when using Windows 95/98. • Supports ring-in feature (remote power-on through external modem, allows system to be turned on remotely).
- Page 4 Installation MVP3G-M/2/5 MVP3G-M/2/5 Detailed Layout Figure 1 Page 4...
-
Page 5: Installation
MVP3G-M/2/5 Installation The following must be completed before powering on your new system: Configure Jumpers System Memory Configuration Device Connectors We design this motherboard with the fewest jumpers to make your install fast and easy. Note: The jumpers as shown below are in their correct physical orientation. -
Page 6: Cpu Selection
Installation MVP3G-M/2/5 CPU Selection / x i I I I i t l i l p 28 27 112MHz 100MHz 95MHz 83MHz 75MHz 66MHz 5.5X 4.5X 3.5X 2.5X ESDJ * Reserved Page 6... - Page 7 MVP3G-M/2/5 Installation The MVP3G-M/2/5 supports (3) 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized DRAM). The DIMMs may be installed using just one chip. • DIMM SDRAM may be 83MHz (12ns), 100MHz (10ns) or 125MHz (8ns) bus speed.
- Page 8 MVP3G-M/2/5 Installation Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connec- tions (figure 6). Parallel Port PS/2 Mouse PS/2 Keyboard COM2 COM1 Figure 6 J2,J3: Chassis Panel Connector •...
-
Page 9: Power On/Off
Installation MVP3G-M/2/5 (This is connected to the power button on the case. Using the Soft- Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (you need to hold the button down for 4 seconds before the system turns off). When the system is in 4 sec delay mode, there is a special feature to make the system to go into suspend mode when the button is pressed momentarily.)
