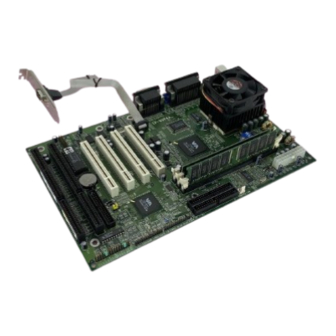

ISA/PCI Motherboard with Onboard AGP
VGA PCI Audio, PCI IDE and Super
Multi-I/O
TRADEMARK
All products and company names are trademarks or registered
trademarks of their respective holders.
These specifications are subjected to change without notice.
Manual Revision 3.1
June 21, 1999
Advertisement
Related Manuals for EPOX MVP4A
Summary of Contents for EPOX MVP4A
- Page 1 ISA/PCI Motherboard with Onboard AGP VGA PCI Audio, PCI IDE and Super Multi-I/O TRADEMARK All products and company names are trademarks or registered trademarks of their respective holders. These specifications are subjected to change without notice. Manual Revision 3.1 June 21, 1999...
- Page 2 Supports (2) 16 bit ISA slots, (4) 32 bit PCI slots, and provides (2) independent high performance PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA 33/66 devices. The MVP4A supports (4) PCI Bus Master slots and a jumperless PCI INT# control scheme which reduces configuration confusion when plugging in PCI card(s).
- Page 3 Features MVP4A • Resume by Alarm - Allows your system to turn on at a preselected time. • Supports CPU Hardware sleep and SMM (System Management Mode). • Supports Keyboard power ON function (KBPO). • Supports USDM software to offer motherboard various status.
- Page 4 Installation MVP4A MVP4A Detailed Layout S O C K E T 7 Figure 1 Page 4...
-
Page 5: Installation
MVP4A Installation The following must be completed before powering on your new system: Configure Jumpers System Memory Configuration Device Connectors We design this motherboard with the fewest jumpers to make your install fast and easy. The following will describe all of the jumpers that you are required to set before moving on to step 2. - Page 6 Installation MVP4A SW1: CPU Vcore Voltage Selection S W 1 C P U 2 3 4 5 V core 1 .8 V 2 .0 V 2 .1 V 2 .2 V 2 .3 V 2 .4 V 2 .8 V 2 .9 V...
- Page 7 MVP4A Installation The MVP4A supports (3) 168-pin DIMMs (Dual In-line Memory Module). The DIMMs can be either EDO (Extended Data Out) or SDRAM (Synchronized DRAM). The DIMMs may be installed using just one chip. • We recommend using SDRAM DIMM can not mixing with EDO DIMM modules.
- Page 8 Installation MVP4A Please install the motherboard into the chassis. Now that your motherboard is installed you are ready to connect all your connections (figure 6). parallel port Joystick/Midi port PS/2 Mouse USB port PS/2 KEYBOARD COM1 VGA1 Speaker Line_in Figure 6 CPU Fan Power •...
- Page 9 MVP4A Installation (This is connected to the power button on the case. Using the Soft-Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (you need to hold the button down for 4 seconds before the system turns off).
